What is a Binocular Microscope: Parts, Functions & Labeled Image

You’ve probably used a microscope at some point, whether in a science class or just out of curiosity. But have you ever wondered about the different types and how they work? The binocular microscope is a popular model used for observing larger specimens. If you’ve looked through one, you know how much more depth and detail you can see compared to a standard microscope.

In this article, we will go through what a Binocular Microscope is, its parts, and its functions.

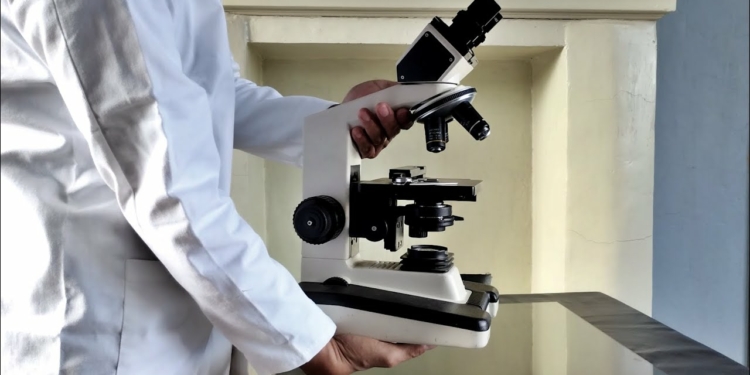

What Is a Binocular Microscope?

A binocular microscope is an optical microscope with two eyepieces that significantly ease viewing and cut down on eye strain. Unless the resulting image is stereoscopic, the technology of a binocular microscope and a monocular microscope is almost identical.

The binocular microscope is a development of the common microscope, which was invented at the end of the sixteenth century by a Dutch eyeglass manufacturer. Light microscopes enlarge pictures by using lenses and light.

Who Invented Binocular Microscope?

It is still unknown when the first microscope was created and to whom credit was given. According to popular belief, a microscope was created and produced between 1590 and 1595 by a Dutch eyeglass manufacturer named Zacharias Janssen (1585-1632).

Key Parts of a Binocular Microscope

To explore the microscopic world, you’ll need to get familiar with the parts of your binocular microscope.

Microscope Tube and Prisms

The microscope tube supports the binocular microscope’s double eyepiece lenses, and multi-light refraction prism light is divided and directed to the binocular eye lenses.

Eye

The double binocular eyepiece houses the microscope lenses. It provides the user with secondary magnification of the “target” or item being examined, which is commonly a sample stored on a slide.

Mechanical Stage

The mechanical stage secures the item, or specimen slide samples, beneath the display target and allows the sample to be moved to the left, right, and back and forth for examination.

Nasal mask and objective lenses

The nasal bridge houses three revolving objective lenses that expand the image of the item on the stage below.

Base

The microscope’s bottom is what the microscope is on.

Capacitor and Lamp

The built-in bulb in the base illuminates the viewing area. The light from the lamp passes through the condenser’s lenses, which focus the light on the microscope’s field of view.

Rack Stop

This function controls how far the stage may progress. Adjusting the zipper stop will keep the slide from getting too near and contacting the objective lens.

Arm

It is a structural element that connects the microscope head to the base

Scenario

The flat base that holds the slides up. The stage clamps secure the slides in place. If your microscope includes a mechanical stage, you may manipulate the slide by turning two knobs instead of moving it manually. The slide is moved left and right by one knob and back and forth by the other.

Tube

Where the eye is drawn, they also link the eyepieces to the objective lenses.

All these parts work together to allow the smooth operation of your microscope. Familiarize yourself with all these parts, and you’ll be exploring microscopic worlds in no time!

How to Use a Binocular Microscope

To use a binocular microscope, follow these steps:

1. Place the microscope on a flat, sturdy surface. Make sure it’s in a spot with good lighting and ventilation.
2. Plug in the microscope and turn on the light source. Allow a few minutes for the bulb to warm up.
3. Lower the stage using the coarse focus knob. This is the larger knob, typically on the right side of the microscope.
4. Place your sample on a glass microscope slide. For solid samples, put a drop of immersion oil on the slide to help the light pass through.
5. Gently place the slide on the microscope stage. Secure the slide in place with the stage clips or clamps.
6. Look through the eyepieces and adjust the coarse focus knob until the image comes into view. Then use the fine focus knob, typically on the left, to sharpen the image.
7. For higher magnification, swap out the objective lenses. Start with the lowest power, like 4x or 10x, and work your way up to 40x or 100x for a closer view.
8. To capture an image, you may attach a camera to your microscope. Follow the instructions to properly mount and configure the camera before taking photos through the eyepieces.
9. When done, turn off the microscope light and unplug the power cable. Clean the lenses with lens cleaning paper and cover the microscope with its dust cover.
10. Label and organize your microscope slides. For future viewing or storage. Record your observations in a lab notebook.

When observing with a binocular microscope, you look through two eyepieces at once, giving you a stereoscopic, three-dimensional view of the specimen. This allows for greater depth perception and makes it easier to manipulate and position the sample.

Functions of a Binocular Microscope

The binocular microscope has several important functions that allow you to view specimens in fine detail.

Magnification

The primary function of any microscope, including the binocular type, is to magnify the object so you can see its details. The binocular microscope uses two separate eyepieces and objective lenses to produce a magnified stereoscopic image.

Illumination

The microscope has an illuminator that provides light to illuminate the specimen brightly. This allows you to see the details of the object clearly. The amount of light can be adjusted based on the needs of the specimen.

Focusing

The binocular microscope has coarse and fine focusing knobs that allow you to adjust the focus of the image. The coarse focus quickly brings the image into a rough focus; then, the fine focus is used to sharpen the image by subtly adjusting the distance between the objective lens and the specimen.

Adjustability

The binocular microscope typically has adjustable eyepieces that can be positioned for the interpupillary distance of the user’s eyes for maximum comfort and visibility. The microscope may also have adjustable objectives for varying levels of magnification.

Types of Binocular Microscopes

There are several types of binocular microscopes you can choose from for your needs.

Compound Microscopes

The most common type is ideal for student labs or home hobbyists. They provide high-magnification

Stereo or Dissecting Microscopes

Have lower magnification but provide a 3D view of specimens. Great for dissecting plants or insects, handling circuit boards, or viewing rocks and minerals.

Digital Binocular Microscopes

Connect to a computer or projector to display the magnified image on a screen. Some models can capture still images and video. Ideal for classroom demonstrations or sharing views with a group.

Portable or Field Microscopes

This is a battery-powered Microscope for use outside the lab. Weather-resistant and durable for use in remote areas. Some fold up compactly for travel. Limited magnification but suitable for basic observations and fieldwork.

The majority of microscopes sold today are binocular, albeit the interplay between the two lenses varies depending on the type of microscope. Whatever your needs, there’s a binocular microscope perfectly suited to help you explore the microscopic world. Happy viewing!

Advantages of Binocular Microscopes

The binocular microscope has many advantages over a simple monocular microscope.

It provides a stereoscopic view

The binocular eyepieces give a three-dimensional view of the specimen, allowing you to see depth and contours. This makes it much easier to study the structure and topology of specimens.

It reduces eye strain

By using both eyes, the workload is divided and less strenuous. This allows you to view specimens for longer periods.

It gives an enlarged field of view

Binocular microscopes provide a wider field of view so that you can see more of the specimen at once. This allows for quicker scanning and locating of specific areas of interest.

It has a better resolution

Binocular microscopes typically provide higher-quality optics, which results in a sharper, clearer image with better resolution. More details can be distinguished.

It gives a more natural viewing experience

By using both eyes, binocular microscopes provide a viewing experience that is more akin to normal vision. This can make specimens easier to study and interpret.

It suits photography and video

Binocular microscopes are better for photomicrography since they provide a wider, less distorted field of view and higher-quality optics.

It accommodates different pupil distances

Binocular microscopes have adjustable interpupillary distance to suit different users. This ensures the most comfortable and ergonomic viewing position for each person.

It allows collaborative work

Multiple viewers can observe the specimen at once, allowing collaborative study, discussion, and learning.

Disadvantages of Binocular Microscopes

Binocular microscopes, while offering some useful advantages, also have some downsides to be aware of:

Cost

Binocular microscopes tend to cost more than monocular microscopes due to their more complex design and construction. The additional eyepiece and prism require higher quality components and precision engineering, driving the overall price up.

Bulkiness

The binocular design requires more space and results in a bulkier, heavier microscope. This can make them more difficult to transport and maneuver.

Calibration

The two light paths in a binocular microscope must be precisely aligned and calibrated to provide a clear, single image to the viewer. Any slight misalignment can result in eye strain, dizziness, or lack of focus. Proper calibration requires high-quality components and skilled technicians, again raising the cost.

Limiting magnification

Binocular microscopes typically cannot achieve the highest magnifications possible with monocular designs. The binocular prism and light path limit the maximum useful magnification to around 1000x for most models.

Shadowing

The central support column in a binocular microscope can cast shadows over the specimen at high magnifications or when using oblique illumination. Care must be taken to position the light source properly.

Learning curve

It can take time for new users to get accustomed to using both eyes simultaneously and coordinating focus and magnification changes. Those familiar with monocular microscopes will have an initial adjustment period. With regular use, these skills quickly become second nature.

In summary, while binocular microscopes offer a more natural viewing experience with depth perception and reduced eye strain, there are some disadvantages to consider regarding their cost, bulkiness, calibration needs, maximum useful magnification, and ease of use. For some applications, a monocular microscope may be perfectly suitable and more budget-friendly.

Labeled Diagram of a Binocular Microscope

The binocular microscope has two eyepieces that provide a stereoscopic view of the specimen. This allows for depth perception and a three-dimensional view of the sample.

By understanding each part of the binocular microscope and how they function together, you’ll be exploring the microscopic world in no time.

What is the difference between Monocular, Binocular and Trinocular Microscope?

The main differences between the three types of microscopes are:

Monocular Microscope

A monocular microscope has a single eyepiece. It is typically more compact and lightweight. This type of microscope is best for quick examinations where image quality and depth perception are less important.

Binocular Microscope

A binocular microscope has two eyepieces, one for each eye. This provides a stereoscopic view that gives the perception of depth. Binocular microscopes are best for detailed study and analysis. The dual eyepieces reduce eye strain during long periods of use.

Trinocular Microscope

A trinocular microscope also has two eyepieces for a binocular view, but it also has a third eyepiece or port. The third port is used to connect the microscope to a camera for photomicrography or video. Trinocular microscopes provide the benefits of a binocular view for the user, but also the ability to capture and share digital images. For most applications, a trinocular microscope is the most versatile and useful type.

In summary, the main differences come down to the number of eyepieces and the ability to connect a microscope camera. For casual or brief use, a monocular microscope may suffice. However, for most students, professionals, and researchers, a binocular or trinocular microscope is superior due to the stereoscopic view, reduced eye strain, and image capture options.

Buying Guide to a Binocular Microscope

When buying a binocular microscope, there are several factors to consider:

Optical quality

• Look for a microscope with high-quality glass optics for the best image resolution and clarity. Ask about the quality of the objectives (magnification lenses) and eyepieces. Higher quality means a sharper, brighter image.

Magnification range

• Choose a microscope with a magnification range suitable for your needs. Most student microscopes offer magnifications from 40x to 1000x. Higher powers allow the viewing of smaller specimens.

Illumination

• For the best view of your samples, select a microscope with built-in illumination, like an LED or halogen bulb. LEDs last longer and emit bright, white light.

Sturdy construction

• Look for a durable microscope with a stable, solid frame. Metal bodies and frames last longer than plastic. Check that the stage clips or holders securely grip slides.

Ease of use

• Consider a microscope with features like coaxial coarse and fine focus knobs for easy focusing, a mechanical stage for moving slides, and an angled eyepiece or camera port for more comfortable viewing.

Additional features

• Extra features to consider include a camera to capture images, polarizing filters, and different objective lenses for brighter images at higher magnifications.

Brand reputation

• Choose a reputable brand that is known for high-quality and reliable microscopes. Ask about product guarantees and warranty.

Price

• Binocular microscope prices range from under ₦ 105000 up to ₦ 150,000 or more for high-end research-grade models. Set a budget and stick to microscopes with the features you need.

Frequently Asked Questions

Have some questions about your binocular microscope? Here are some common ones answered:

How do I properly carry and transport a microscope?

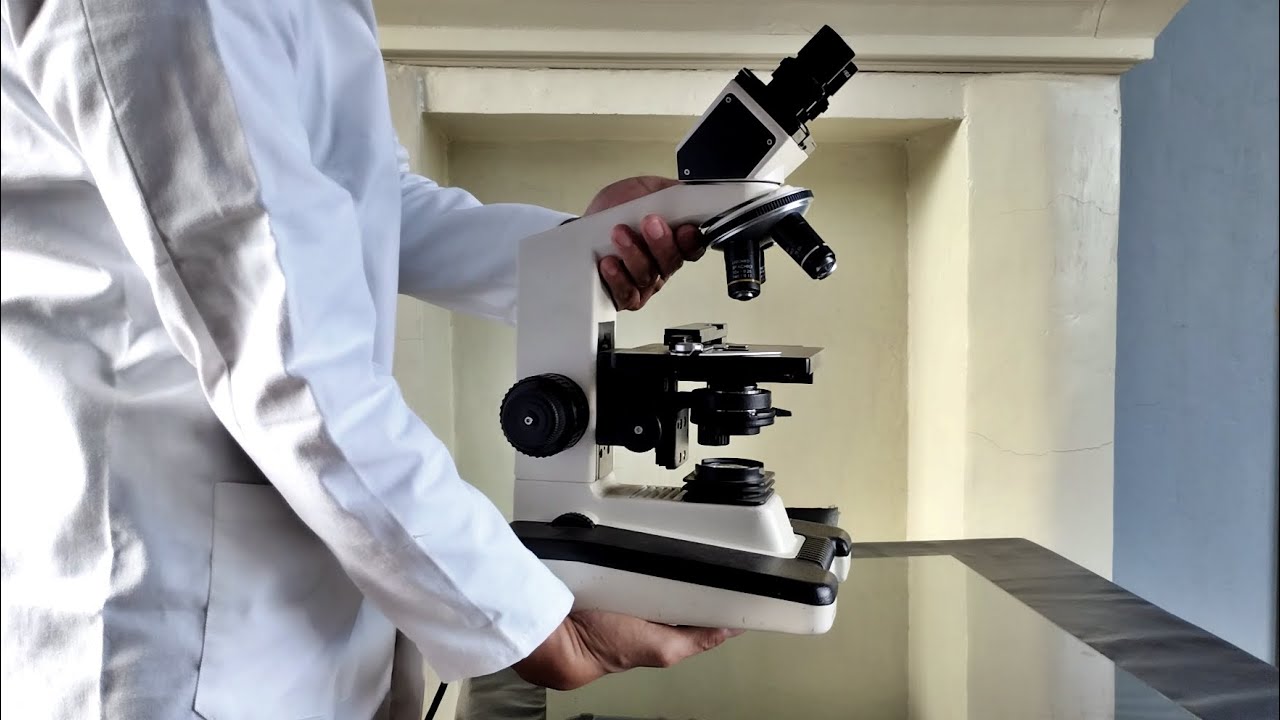

Always carry a microscope with two hands, one on the arm and one under the base. Never lift by the eyepiece or objective lenses. When transporting, pad the microscope to prevent damage and secure it in an upright position.

What is the maximum useful magnification?

Most binocular microscopes have a maximum magnification of 40x to 100x for practical use. Higher magnifications require oil immersion objectives and optimal lighting, which can be difficult for casual users.

How do I properly clean the lenses?

Gently blow on lenses to remove dust. For fingerprints or oil, use lens cleaning paper and lens cleaning solution. Wipe with small circular motions from center to edge. Be very gentle to avoid scratching. Never use abrasive cleaners.

How do I properly store a microscope?

Keep your microscope in a secure cabinet away from direct heat or sunlight when not in use. Cover with a dust cover to prevent buildup on lenses and other components. Store objectives in a lens case. Ensure all mechanical parts are lubricated, and slides/specimens are properly contained.

Conclusion

Now that you know the parts and functions of a binocular microscope, you can appreciate how it allows you to see specimens in stunning detail and truly explore the microscopic world around you. With some practice adjusting the magnification and focus, you’ll be zooming in on samples and seeing them like never before in no time. Whether for work, study, or just curiosity about the world, a binocular microscope is an invaluable tool that opens up a whole new level of visual discovery.
