Step Down Transformer: Definition, Working Principle, Applications, & Diagram

You know electricity is pretty amazing, right? It lets us power all our devices and appliances, keeping our modern lives running smoothly. But that electricity has to get from the power plant to your home somehow. This is where step down transformers come in. These devices reduce the voltage of electricity so it’s safe for residential and commercial use.

In this article, we’ll explore what step down transformers are, how they work their electrical magic, and where you’ll find them out in the world. With a basic understanding of these ubiquitous devices, you’ll gain a bit more appreciation for one of the unsung heroes of the electrical grid.

Overview of a Transformer

A transformer is a static electrical device that transfers energy by electromagnetic induction between two or more circuits. In other words, it’s able to step up or step down voltage levels. It contains primary and secondary windings linked by an iron core. When an alternating current flows through the primary winding, it creates a changing magnetic field which induces a voltage in the secondary winding.

How Does a Transformer Work?

The transformer works based on Faraday’s law of electromagnetic induction. The changing magnetic field created by the primary winding cuts the turns of the secondary winding and induces an electromagnetic force within it. The amount of induced voltage depends on the number of turns in the windings. More turns mean higher voltage, and fewer mean lower voltage. This allows the transformer to either increase or decrease the voltage.

Uses of Transformers

Transformers are essential for efficient transmission and distribution of electric power. They’re used to step up voltage for long distance transmission and step down for distribution to consumers. They’re also found in electronic devices to step down voltage to safer levels. No wonder they’re such an integral part of modern power systems!.

Types of Transformer

There are several types of Transformer that are used for different purposes:

Step-up transformer

A step-up transformer increases the voltage of an AC circuit. They’re used when you need to transmit power over long distances since higher voltages mean lower current and less power loss.

Step-down transformer

Step-down transformers lower the voltage of an AC circuit. They’re used when power needs to be supplied to devices that operate at lower voltages than the transmission lines. Most wall outlets provide 120V or 240V thanks to step-down transformers.

Isolation transformer

An isolation transformer is a transformer that is used to transport electrical power from an alternating current (AC) source to some equipment or device while isolating the powered device from the power source, for safety concerns or to eliminate transients and harmonics.

Isolation transformers provide electrical isolation between two circuits. The primary and secondary windings are physically separated, preventing unwanted AC currents from passing between circuits. They’re used in medical equipment, electronic test gear, and industrial applications where grounding and noise rejection are important.

Auto transformer

Auto transformers have a single winding with multiple taps, allowing a range of voltages. They’re more compact and efficient than isolating transformers but don’t provide the same level of isolation between circuits. Auto transformers are often used to regulate voltage in power distribution systems.

Power transformer

Power transformers are electrical instruments that transfer electrical power from one circuit to another without affecting its frequency. They function on the basis of electromagnetic induction.

Power transformers are very large transformers used in power distribution systems to transmit high voltage over long distances. They can weigh hundreds of tons and stand several stories high. Power transformers are critical components in electrical grids and substations.

Distribution transformer

Distribution transformers or service transformers are pole-mounted transformers that convert high distribution voltages (2.4kV to 34.5kV) to lower utilization voltages (120V to 480V) for residential and commercial use. They’re one of the most common type of transformers and supply most of the world’s electrical power.

Instrument transformer

Instrument transformers are precision transformers used to accurately sense current and voltage in power systems. They isolate and change the levels of signals to standard values that can be used by metering and protection equipment. Current transformers (CTs) and potential transformers (PTs) are the two main types.

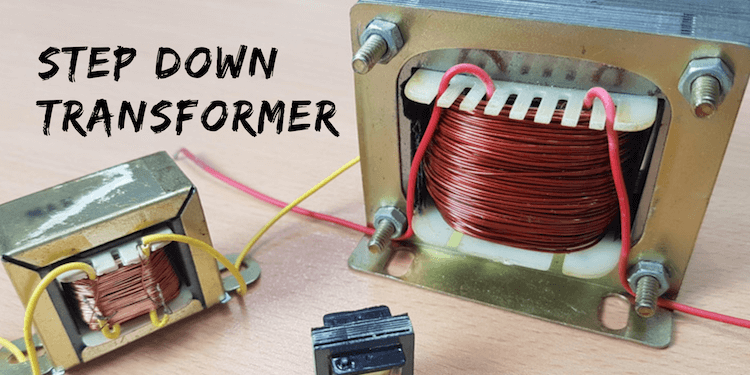

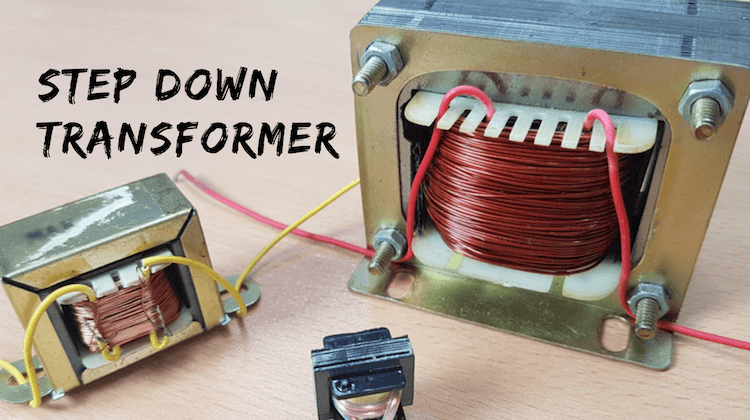

What Is a Step Down Transformer?

Step down transformers are devices used to convert high voltage electrical power into lower voltage power that is suitable for commercial and residential use. These transformers operate on the simple principle of electromagnetic induction to “step down” the voltage to safer levels.

How Does a Step Down Transformer Work?

A step down transformer works by converting high voltage electricity into a lower voltage that’s suitable for powering devices. It contains two coils of wire, a primary coil and a secondary coil, wrapped around an iron core. The primary coil is connected to the high voltage power source, typically power lines. This creates an alternating magnetic field which induces a current in the secondary coil. Because the secondary coil has more turns than the primary coil, the voltage is reduced. This lower voltage is then used to power equipment and devices that can’t handle the higher voltage from the power lines.

Types of Step-Down Transformers

Step-down transformers are classified into three types, which are, Single Phase Step Down Transformers, Center Phase Step Down Transformers, and Multi-tapped Step-Down Transformers

Single Phase Step Down Transformers

Single phase step-down transformers convert high voltage to low voltage. They reduce the voltage while keeping the frequency unchanged. These are ideal for powering single-phase AC loads in homes and offices.

Center Phase Step Down Transformers

Center tapped transformers are used when a neutral point is required in the secondary circuit. Center-tap transformers provide both a higher and lower voltage from a single primary winding. They provide two secondary voltages that are opposite in phase. The center tap gives a neutral point.

Multi-tapped Step-Down Transformers

Multi-tapped transformers have several taps on the secondary winding. By connecting to different taps, different secondary voltages can be obtained. This provides flexibility in the output voltage. The taps are usually in increments of 5% to 10% of the total secondary voltage.

Components of a Step Down Transformer

These are the components of a Step Down Transformer:

1. Core

The core is made up of thin laminations of silicon steel to provide a low reluctance path for the magnetic flux. The laminations are insulated from each other to reduce eddy current losses.

2. Windings

The primary and secondary windings are wound on the central limb of the core. The primary winding consists of more turns and is connected to the supply. The secondary winding consists of fewer turns and is connected to the load.

3. Bushings

Bushings are used to connect the external cables to the transformer windings. They provide insulation between the windings and the outside cables.

4. Tank/Enclosure

The core and windings are enclosed in a tank which contains insulating oil. The oil acts as an insulator and also helps in cooling the transformer.

5. Tap Changer

A tap changer is used to vary the number of turns in the secondary winding and thereby control the secondary voltage.

6. Conservator

A conservator is a tank placed above the main tank of the transformer. It is connected to the main tank through a pipe. The conservator is used to accommodate the expansion and contraction of the oil due to temperature variations.

7. Breather

A breather is a container with silica gel or activated alumina placed on top of the conservator. It absorbs the moisture from the air before it enters the conservator.

8. Radiators

Radiators are provided to increase the surface area for cooling and are placed on the outside of the tank. Fans are used to blow air over the radiators to improve cooling.

Which are the Characteristics of a Step-down Transformer?

A step-down transformer converts high voltage to a lower voltage. It has several defining traits:

1. It has a lower turn ratio on the secondary winding. This results in lower output voltage. The primary winding has more turns than the secondary winding.
2. It steps down the voltage while increasing the current. This is due to the inverse relationship between voltage and current.
3. It has low leakage reactance. This means less voltage is dropped, so more power is transferred to the secondary.
4. It has low impedance. The lower impedance allows more current to flow in the secondary circuit.
5. It operates at high efficiency. More power is transferred to the secondary due to the small voltage drop.
6. It requires high insulation for the primary winding. The high input voltage necessitates insulation that can withstand the higher potential difference.
7. It may require cooling for the secondary winding. The increased current can produce more heat that requires cooling.
8. It is commonly used in power distribution. Stepping down the voltage is necessary to provide lower voltage power to residential and commercial customers.

Practical Applications of a Step Down Transformer

A step down transformer has many practical applications in our daily lives: You use one every time you plug in an electronic device into a wall outlet. These transformers step down the high voltage from power lines to the 120V needed for most electronics. Microwaves, TVs and phone chargers all use small step down transformers to provide the right amount of power. Without them, our gadgets would fry!

Hospitals rely on step down transformers to power sensitive medical equipment. The precise voltage control is essential for patient safety. Factories and industrial equipment depend on step down transformers to operate heavy machinery. Electric vehicles use step down transformers to charge their batteries. The high voltage from charging stations must be reduced to match the vehicle’s systems. Streetlights, traffic lights and other public infrastructure all require step down transformers to function. Municipal electrical systems provide power that must be properly transformed for public use. Many renewable energy systems like solar and wind power generate high voltage that is stepped down for practical use in homes and businesses. The transformers make these sustainable energy sources viable.

How Do You Connect a Step Down Transformer

To connect a step down transformer, first turn off the power supply to avoid electric shock.

Locate the primary and secondary coils the input and output wires. The primary coil will have a higher voltage rating than the secondary coil. Connect the primary coil wires to the power source, matching the color codes: red to red and black to black.

Next, connect the secondary coil wires to the device you want to power. Again, match the color codes: red to red and black to black. The lower voltage from the secondary coil will now power your device.

Turn the power back on and test your new step down transformer to ensure it’s working properly before leaving it unattended. Your device should now be running at the lower voltage supplied by the transformer.

Step Down Transformer Formula

The step down transformer formula is given by:

V_s = (N_s / N_p) x V_p

Where: Vs= the voltage across the secondary coil, Ns: the number of turns in the secondary coil, Np: the number of turns in the primary coil, and Vp: the voltage across the primary coil.

This formula shows that the voltage is directly proportional to the number of turns. So, if you want to decrease the output voltage, you need to decrease the number of turns in the secondary winding. In a step down transformer, the number of turns in the primary winding is more than the secondary winding. This results in a decrease of voltage from primary to secondary according to the turn’s ratio.

For example, if the primary voltage is 230V and the turn’s ratio is 2:1, then the secondary voltage will be 115V. Here, the number of turns in the primary winding is double than the secondary winding. This causes the secondary voltage to become half of the primary voltage.

Step down transformers are commonly used to convert high transmission voltages to lower distribution voltages for commercial and residential use. They make it possible for the efficient transmission of electric power over long distances.

What are the Advantages of a Step-down Transformer?

A step-down transformer has several key benefits, which includes the following:

1. It reduces the voltage: The primary purpose of a step-down transformer is to decrease the voltage from the input side to the output side. This makes the high voltage from power lines safe for commercial and residential use.
2. It increases the current: While the voltage decreases, the current increases proportionally. This allows more power to be transmitted over the same size wires.
3. It provides isolation: The transformer also isolates the input and output sides electrically. This prevents any DC components on one side from passing to the other side.
4. It helps in impedance matching: A step-down transformer can be used to match a high impedance source to a low impedance load. This helps maximize the power transfer between the two circuits.
5. It prevents electric shocks: The step-down transformer helps prevent dangerous electric shocks by reducing high transmission line voltages (in the thousands of volts) to lower levels suitable for homes and businesses (120/240V).
6. It is inexpensive: Step-down transformers are a very cost-effective way to change AC voltages. They have no moving parts and require little maintenance.
7. It improves the power factor: A step-down transformer can be used to correct the power factor of an AC power system to near 1 for maximum efficiency.
8. It provides 3-phase power: Several single-phase transformers can be used together to generate 3-phase power from a single-phase source or vice versa. 3-phase power is commonly used for motors and in industrial settings.

What are the Disadvantages of a Step-down Transformer?

A step-down transformer has several downsides to consider:

• Inefficiency: It require power to operate and some is lost as heat during the conversion process, reducing efficiency.
• Size and weight: The larger the transformer’s power rating, the bigger and heavier it becomes, requiring more space and support.
• Limited power: Transformers are only able to handle a fixed amount of power based on their design and ratings. If overloaded, they can overheat or fail.
• Electromagnetic interference: Transformers generate electromagnetic fields that can potentially interfere with sensitive electronic equipment nearby.
• Short circuit vulnerability: If a short circuit occurs on the secondary side of a transformer, it can damage the transformer due to the high currents produced. Proper circuit protection is required.
• Harmonics: It can produce harmonic distortions, generating signals at frequencies that are multiples of the input frequency. Harmonic filters may be needed.

In summary, while extremely useful, step-down transformers do have some disadvantages to be aware of for your application or device. With good design and proper safeguards, though, these potential downsides can be mitigated.

What are Some Common Problems with Step-down Transformers and How Can They Be Resolved?

These are some of the problems that could be encountered with a step down transformer:

Overheating

Step-down transformers can overheat if overloaded for extended periods, potentially causing permanent damage. Ensure the transformer is properly rated for the load and give it time to cool if overheating occurs.

Short circuits

Short circuits happen when there is an abnormal connection between two points of different potential in a circuit. This can damage the transformer. Inspect connections regularly and fix any faulty wiring to prevent short circuits.

Overloading

Running a transformer beyond its rated capacity can overheat and damage the unit. Make sure not to draw more current than the transformer can handle for extended periods. Reduce the load or get a higher-capacity transformer.

Voltage regulation issues

If a transformer’s output voltage is not within the proper range, it won’t function correctly. Have the transformer tested and repaired or replaced if voltage regulation problems occur.

Insulation damage

The insulation inside a transformer can become damaged over time with heat and use. Once insulation starts to break down, the transformer becomes unsafe to operate. Have old or frequently used transformers tested for insulation damage and replaced as needed.

Noise and vibration

Excessive buzzing, humming or vibration can indicate a problem with a transformer. Have the unit checked by an electrician, as this can be a sign of damage or loose components that may lead to more serious issues if left unaddressed.

How do you Select the Appropriate Size of the step-down transformer?

To choose the right step-down transformer for your needs, consider these factors:

The first thing to determine is the voltage you need to step down from and to. For example, stepping down from 120V to 12V. The larger the difference between the input and output voltages, the larger the transformer will need to be.

Next, calculate the wattage or amperage required for your application. More powerful devices will require a transformer with a higher wattage rating. For example, a 100W transformer can power multiple low-wattage devices, while a single 1000W device would require a much larger model.

The physical size of the transformer is also important to consider based on where you need to install it. Larger transformers may require mounting brackets and adequate ventilation space. More compact sizing is better for tight areas.

The transformer’s frequency rating must match your power source, either 50Hz or 60Hz. In the US, 60Hz is standard.

Choose between an isolated or non-isolated transformer based on whether you need to block or allow electrical signals to pass between the input and output circuits. Isolated transformers provide insulation and are safer but often more expensive.

Consider additional features like surge protection, cooling fans, or weather-resistant casing for outdoor use. These can impact the transformer’s size, cost, and performance.

Finally, compare transformer brands and reviews to find a high-quality, reliable model for your needs at an affordable price. Reputable brands will provide performance specs, warranties, and customer support.

Selecting a properly-sized step-down transformer is key to safe, efficient power conversion. Evaluate all these factors carefully to choose a model suited to your unique requirements. The ideal transformer will provide the correct input/output ratings, physical size, and features for your application at a reasonable cost.

What are Some Factors that Can Affect the Performance of a Step-down Transformer?

Several factors determine how well a step-down transformer functions.

The input voltage level and output voltage rating are key. If the input voltage is too high or too low, the transformer won’t operate properly. The output voltage also needs to match the rating to power devices correctly.

The frequency of the input power source is important. The transformer is designed for a specific frequency, like 50 or 60 Hz. If the frequency changes, it impacts performance.

The load, or amount of power drawn by connected devices, affects the transformer. Too much load causes overheating, reducing efficiency. Too little load also lowers efficiency. The load should match the transformer’s rating.

The temperature impacts resistance and efficiency. Excess heat reduces performance. Cooling the transformer, such as with fans or heat sinks, improves operation.

Core material like steel also matters. The core transmits magnetic fields, so its size, shape, and material composition determine performance.

Wire gauge used in windings impacts current carrying capacity. Thicker wire has lower resistance but is more expensive. The gauge must suit the transformer’s rating and purpose.

Tightness of windings and core assembly is key. Gaps or air spaces reduce magnetic coupling, lowering efficiency. Tight, evenly wound coils around the core maximize performance.

The enclosure and mounting method can also affect operation. Adequate airflow and heat dissipation are necessary for peak performance. Solid mounting prevents vibration that can damage the internal components.

How do you Test a Step-down Transformer?

To test a step-down transformer, first visually inspect it for any physical damage or corrosion. If everything looks okay, proceed to the next tests:

Connect the primary side of the transformer to an AC power supply and measure the input voltage and current using a multimeter. The readings should match the transformer’s rated input values.
Next, measure the output voltage and current on the secondary side. The voltage should be lower than the input, as per the transformer’s voltage ratio. Current will be higher on the secondary side.
Check that the transformer does not overheat during operation by touching its casing. It should feel warm but not extremely hot. Excessive heat could indicate issues like short circuits or insulation damage.
As a final test, you can connect a dummy load like a resistor bank to the secondary side and measure if the output voltage remains steady. Fluctuations could point to problems with the transformer windings or core.

If any of these tests fail or the transformer shows abnormal behavior, it likely needs repair or replacement. But if all tests pass, you can be assured your step-down transformer is working properly and ready for use!

What is a Step Up Transformer?

A step up transformer is a device that converts low voltage power into high voltage power. It takes in power at a lower voltage and outputs it at a higher voltage. These transformers are commonly used by power companies to boost the voltage of power so it can be transmitted over long distances.

The step up transformer works by using two coils of wire, a primary and secondary coil. The primary coil is connected to the low voltage power source. The secondary coil has more turns of wire, so it produces a higher voltage. This voltage “steps up” the power to a higher level so it can be transported with less loss over power lines.

At the destination, a step down transformer is used to decrease the voltage again for safe use in homes and businesses. So step up and step down transformers working together make it possible to generate and use electricity efficiently.

What is the Difference Between a Step Up Transformer and a Step Down Transformer?

A step down transformer converts a higher voltage input into a lower voltage output, allowing devices to operate at lower, safer levels. In contrast, a step up transformer boosts a lower input voltage to a higher output voltage.

These are the major Differences between a Step up and Step down transformer:

Voltage level: step down transformers reduce voltage, while step up transformers increase voltage.

• Turns ratio: Step down transformers have a higher number of turns on their primary coil and a lower number of turns on their secondary coil. Step up transformers have a lower primary turns ratio and higher secondary turns ratio.
• Application: Step down transformers are commonly used in electronic devices to convert mains voltage to lower levels, like in chargers or power supplies. Step up transformers are used when higher voltages are needed, such as in electric transmission systems.
• Power handling: Although step down transformers reduce voltage, they do not reduce the amount of power. The power input and output remain the same. Step up transformers also do not create power, they only increase voltage. The power into and out of the transformer remains the same.
• Cost: Step down transformers are generally more affordable since they are more commonly used. The materials and construction of step up transformers are more complex, making them more expensive.
• Efficiency: Step down transformers tend to be slightly more efficient since power loss is lower at lower voltages. Power loss increases with higher voltages, so step up transformers may have lower efficiency.
• Safety: Lower voltages from step down transformers are safer for electronic devices and human contact. The high voltages produced by step up transformers require additional safety precautions to prevent electric shock.

Frequently Asked Questions

Here are some frequently asked questions and answers about step down transformers:

What is a step down transformer used to convert?

It’s used to convert high transmission voltage to lower distribution voltage for residential and commercial use.

How does a step down transformer reduce voltage?

It does this by having fewer windings in the secondary coil than in the primary coil. The primary coil receives the high voltage input, which induces a lower voltage in the secondary coil.

What increases in a step down transformer?

While voltage decreases, amperage increases in a step down transformer. This allows the lower voltage to supply the same amount of power.

What is the purpose of a step-down transformer?

Its purpose is to reduce voltage to a safe level for residential and commercial use. High voltage is stepped down for devices that operate on lower voltage.

How do you select the appropriate size of the step-down transformer?

You choose a size based on the power rating and voltage conversion ratio you need. For home use, a small transformer of 5-10 kVA (kilovolt-amperes) is typically sufficient.

What are the 3 main parts of a step down transformer?

The three main components of a step-down transformer are the primary coil, secondary coil, and an iron core. The primary coil has more turns than the secondary coil.

How do you identify a step down transformer?

You can identify a step-down transformer by the lower voltage output. The secondary coil will have fewer turns, so it produces a lower voltage.

What device uses a step down transformer?

Many household electronic devices use step-down transformers, like phone chargers, laptop power supplies, and LED lights. These transformers convert the high voltage from a wall outlet to a lower, safer voltage for the device.

When would you use a step down transformer?

You would use a step-down transformer whenever you need to reduce an AC voltage to a lower level before powering an electronic device. It allows you to use a higher input voltage but get a lower, more useful output voltage.

Do step down transformers change the frequency of electricity?

No, step down transformers do not change the frequency of electricity. They only change the voltage level. The input and output frequency remains the same.

What are the main applications of step down transformers?
The main applications of step down transformers are:

• To provide a lower voltage supply for household appliances which operate at a lower voltage than the transmission or distribution voltage.
• To provide a lower voltage for industrial equipment like motors, heating elements, etc.
• To provide a suitable voltage for electronic devices. Electronic circuits and components like microcontrollers, microprocessors operate at lower DC voltages which are obtained by converting the AC supply using rectifiers and voltage regulators.

Do step down transformers increase or decrease the current?

Step down transformers decrease the voltage but increase the current. This happens due to the conservation of power. Power is defined as voltage x current. So, when voltage decreases, current increases proportionally to maintain the same power.

What safety precautions should be followed?

Step down transformers deal with high voltages, so safety is important. Only qualified technicians should install and service them. Proper grounding and insulation are required. Warning signs should be posted to alert people to the presence of high voltage equipment.

Conclusion

Step down transformers are an essential part of any electrical system that needs to convert high voltage power to lower usable voltage levels. Their simple yet ingenious design allows AC power to be transmitted over long distances at high voltages, then reduced locally to safer levels that won’t fry our electronics or us.

By manipulating that turns ratio between the coils, utility companies can dial in just the right voltage needed for different applications. Next time you plug in a lamp or appliance, you can think about the unseen transformer out on the pole that’s making it possible. Our modern electrical world relies on these ubiquitous devices to get power where it needs to go, not too much, not too little, but just right.
