You probably don’t think much about computer networks and how they’re set up. But understanding the basics can help you troubleshoot problems or even design your own home network. One of the most common network topologies is called a bus topology.

In this article, we’ll look at what a bus topology is, how it works, and the pros and cons of this type of network structure. You will also learn about the key components of a bus topology, how devices communicate on a bus network, and when you might want to use this topology in your own setup.

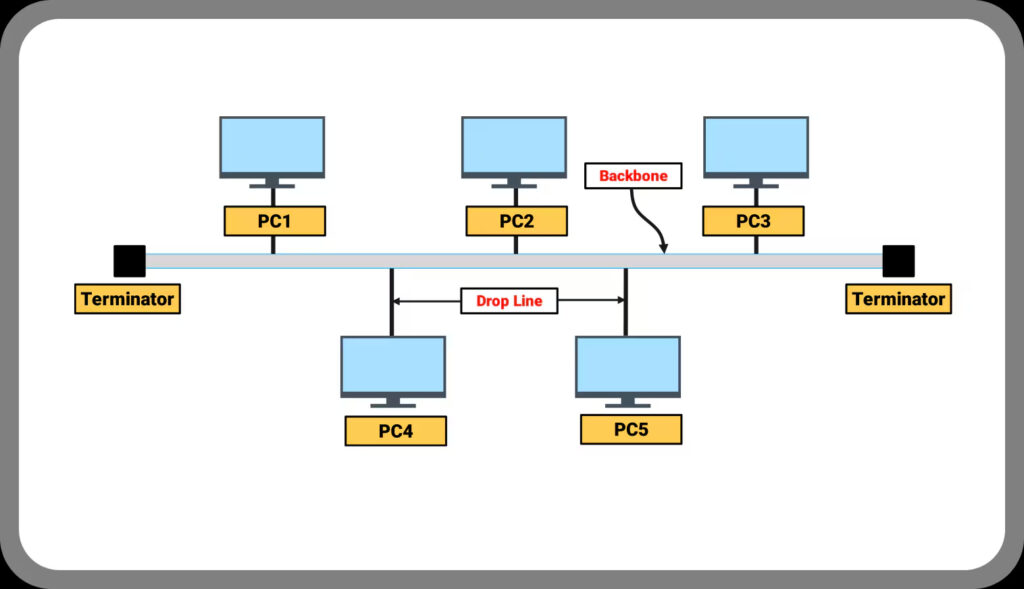

What Is a Bus Topology?

A bus topology is a network setup where all devices are connected to a single cable, called the bus. This main bus cable acts as the shared communication medium that devices plug into.

Each device taps into the bus, so when one device sends a signal, it travels in both directions to all the other connected devices. The devices choose to accept or ignore the signal depending on if they are the intended recipient.

This simple design keeps cost and complexity low. However, since the bus is a shared medium, it can only handle one transmission at a time. This limits the bandwidth and can slow the entire network if there is a lot of traffic. The bus topology works best for small networks with light usage.

What is Another Name For a Bus Topology?

Bus Topology is also known as Line Topology. Why? Because devices in a bus network are connected along a single line, like stops on a bus route.

In this setup, all devices tap into the same cable. A bus topology is simple and inexpensive, but data transmissions can be disrupted if two devices transmit at once. Bus networks work best for small networks with light traffic. For home networks, an Ethernet bus topology using a single cable to connect devices is common. All devices share the total bandwidth, so bus performance depends on the speed of the cable and network adapters.

While simple, bus networks can be difficult to troubleshoot since a problem with any part of the bus disrupts the entire network. But for basic small networks, a bus topology provides an easy plug-and-play solution.

What are the Characteristics of a Bus Network?

A bus topology has some defining characteristics:

Shared Medium:

All devices in a bus network share the same connection medium. This means that only one device can transmit data at a time.

Linear Topology:

The bus topology features a linear layout, with all devices strung together in a line. Signals travel in a straight line down the network cable from one end to the other.

Easy to Connect:

Connecting new devices to a bus network is simple. You just have to connect each new device to the main network cable. No other reconfiguration is needed.

Failure Vulnerable:

If the main network cable fails or is damaged in any way, the entire bus network will go down. This is a major drawback of the bus topology.

Limited Cable Length:

The maximum cable length of a bus topology is limited. This is due to signal degradation over long distances. Repeaters can be used to extend the bus, but this also increases the chances of collision.

Prone to Collision:

Since all devices share the same bandwidth, collision (two signals interfering with each other) can easily happen in a bus network. This can reduce network efficiency.

Difficult to Troubleshoot:

Locating the source of a problem can be difficult in a bus network. The failure could be anywhere along the main network cable. Troubleshooting may require checking each device and cable segment individually.

Limited Bandwidth:

The shared bandwidth of a bus network limits the total bandwidth of the network. Adding more devices will reduce the bandwidth available to each device.

How Does a Bus Topology Work?

A bus topology connects all computers and network devices along a single cable, called the bus or backbone. This single cable acts as a shared communication medium that devices attach or tap into with drop lines.

When a device sends data down the bus, the signal travels in both directions to all connected nodes. Each node then determines whether the message is for them or not.

This means that bus networks are easy to set up and maintain, as very little cabling is required to connect nodes. However, they lack redundancy and can be difficult to troubleshoot. If the main bus cable fails, the entire network will go down.

How does Data Transmission Work in Bus Topology?

Data travels in one direction, from device to device, in a bus topology network. When a device sends data, it travels along the single cable and is received by all other connected devices. Each device checks if the message is intended for it by checking the destination address. If it matches, the device processes the data. If not, it ignores the data.

This continues until the data reaches its destination. The data transmission process repeats as other devices send data across the network cable. The bus topology is easy to set up and cost efficient, but isn’t ideal for large networks due to lack of scalability and vulnerability to network disruptions if the main cable fails.

What Cable is Used in Bus Topology?

The bus topology uses a single cable to connect all devices in a network. This central cable is the backbone of the network and is known as the bus. Thin coaxial cable or twisted pair cable is commonly used in bus networks.

These cable types are preferred because they are inexpensive, easy to work with, and support a limited number of connected devices. Thin coaxial cable, also called thinnet, is a 10BASE2 cable that can span up to 185 meters and support 30 connected devices. Twisted pair cable, like telephone cable, is a 10BASE-T cable that can connect up to 100 meters and support 100 connected devices.

Whichever cable you choose, it must be continuous between all devices with no breaks. If the bus cable fails or experiences problems at any point, the entire network will go down. Bus networks are inexpensive and easy to set up and maintain, but they lack scalability and fault tolerance.

What are the Advantages of Using Bus Topology?

A bus topology offers several benefits for small networks, including the following:

Cost-effective:

It is inexpensive to implement as it requires only a main cable and terminators. Additional nodes can easily be added.

Easy to understand:

The layout is simple, easy to comprehend and troubleshoot.

Easy to expand:

You can easily increase the number of nodes in the network without disruption.

Reliable:

If one computer fails, the rest of the network remains functional.

Less cable required:

Only a single cable is needed to connect all the nodes.

Flexible:

Nodes can be easily added or removed without affecting the network.

Standard interface:

All nodes can use the same interface to tap into the bus.

What are the Disadvantages of Using Bus Topology?

These are some of the disadvantages of bus topology:

Fault identification

It is difficult to identify the fault in bus topology. In case of any fault, the whole network gets affected and all the nodes stop functioning. Locating the failure point becomes tedious.

Limited cable length

The total length of the cable used in bus topology cannot exceed a certain limit. If the length of the cable exceeds the prescribed limit, signal strength deteriorates and data transmission is hampered.

Limited number of nodes

Bus topology supports only a limited number of nodes. If more nodes are added, the performance of the network decreases due to signal degradation.

No redundancy

There is no provision of alternate path in bus topology. If the main cable fails, the whole network goes down.

Installation and reconfiguration

Installing and reconfiguring a bus topology network is difficult. Any changes made to the network affects the whole network.

Troubleshooting

Troubleshooting faults in a bus topology is tedious since the failure of one node affects the whole network. Isolating the faulty node is difficult.

What are Some Common Applications of Bus Topology?

Some common uses of bus topology include:

Connecting workstations in a small LAN. The bus topology is an easy and inexpensive way to connect several workstations in a local area network. Each workstation taps into the main cable, connecting all the devices together. Linking peripherals to a computer. Devices like printers, scanners, and storage drives can be connected to a computer using a bus topology. The SCSI and USB interfaces are common examples.

In summary, bus topology is ideal for small, simple networks where cost, ease of installation, and flexibility are priorities. For larger, more complex networks where performance and reliability matter more, other topologies like star or ring are better options.

Can Multiple Bus Topologies Be Connected Together?

Yes, multiple bus topologies can be connected together, using a process called “segmentation”. This is known as bus-to-bus connection and allows you to expand the network by connecting two separate bus networks. The key is ensuring that the networks have compatible components. Each bus must use the same network protocol and transmission medium. If the networks use different types of cable, a repeater or bridge device can be used to join them.

Joining bus networks provides several benefits. It allows you to connect more network nodes than a single bus can support. It also provides redundancy in case one bus experiences problems. The connected buses act as backup for one another. However, as more bus networks are connected, the network can become more complex to manage and troubleshoot. Performance may also start to suffer as more nodes and network traffic are added.

Can Bus Topology Be Used With Wireless Networks?

Yes, a bus topology can be used with wireless networks. In a wireless bus network, all the nodes are connected via wireless links instead of cables. Since wireless networks use radio frequency signals instead of physical cables to connect the nodes, it provides more flexibility and scalability.

The wireless bus topology works similar to a wired bus topology. All nodes are connected to a main cable, but in this case, it is replaced with a wireless medium. A signal from any node is broadcasted to all other nodes. Every node receives the signals, but only the intended recipient actually accepts and processes it.

The main advantages of a wireless bus topology are flexibility, reduced cost of cabling and easy troubleshooting. However, it also shares the same disadvantages like signal interference, security issues and limited bandwidth. Performance also depends on the wireless technology used like Wi-Fi, Bluetooth or Zigbee.

So in summary, yes a bus topology can work with wireless networks with some key differences in the physical medium used for communication. Both topologies share some similar characteristics but a wireless bus topology provides more flexibility and reduced costs.

What are some Common Problems That Can Occur in Bus Topology and Solution?

A bus topology can run into issues. Here are some common problems and solutions:

• Signal interference: As signals travel the length of the bus, they can weaken and distort. Use a high-quality cable and limit cable length.
• Difficult troubleshooting: If there’s an issue, it can be hard to pinpoint. Test each node to find the fault.
• Reliance on central cable: If the main cable fails, the entire network goes down. Install a backup cable.
• Limited cable length: The max length depends on the cable type. For longer distances, use a different topology.
• Slow network speed: More nodes mean more traffic and slower speeds. Limit the number of connected devices.
• No redundancy: There’s only one path between nodes, so no backup. Use a different topology for critical systems.
• Single point of failure: If the bus cable fails, the network fails. Have spares on hand in case of failure.
• Limited scalability: Max number of nodes depends on factors like cable length. For large networks, a different topology is better.

Requirements to Set up a Bus Topology Network

To set up a bus topology network, you’ll need:

• A main cable to act as the shared communication channel. Coaxial cable is often used.
• Terminators at each end of the main cable to absorb signals and prevent interference.
• Taps to connect nodes (computers and other devices) to the main cable.
• A cable connecting each node to a tap.

This simple yet robust network architecture requires minimal components, keeping costs low. However, if the main cable fails the entire network goes down. Bus topologies work best for small networks, but performance degrades as more nodes are added due to increased signal interference.

What are Some Best Practices For Designing a Bus Topology Network?

When designing a bus topology network, keep these best practices in mind:

• Choose a central device that can handle the bandwidth demands of all connected devices. The central connection point, like a hub or switch, must be able to handle the combined data flow of everything connected to it.
• Use short cable lengths. Keep cables between devices and the central connection as short as possible. Longer cables mean greater signal degradation over the length of the cable.
• Connect devices sequentially. Connect devices to the bus in a linear sequence, without splitting or branching the main bus cable. Splitting or branching the cable can distort the signal.
• Terminate both ends of the bus. Place a terminator at both ends of the linear bus cable to prevent signal reflection. The terminators absorb any signals that reach the end of the cable.
• Limit the number of connected devices. Don’t overload the bus by connecting too many devices. As more devices are added, performance will decrease.
• Choose a fast transmission method. Use a bus topology that can transmit data quickly, such as Ethernet over twisted pair copper wire. Coaxial cable and optical fiber also work well for bus networks.
• Add repeaters for longer distances. If the bus covers a large area, add repeaters to boost the signal over longer distances. Repeaters retransmit signals before the signal degrades too much.
• Provide redundant cabling. For critical systems, provide a backup bus cable in case the primary bus goes down. The secondary bus can take over if there is a cable failure or break in the primary bus.

Bus Topology FAQs

A bus topology can seem complicated, but it’s actually quite straightforward. Here are some common questions to help clear up any confusion:

What exactly is a bus topology?

It’s a network setup where all devices are connected to a single cable, called the bus or backbone. This main cable acts as a shared communication medium that devices tap into.

How does data travel through the bus?

Data flows in both directions, with all messages broadcast across the entire bus. Each device then examines the messages and accepts any that are addressed to it.

How does bus topology compare to other network topologies in terms of cost?

It’s typically the most affordable option since only one cable is needed.

What is the difference between bus topology and mesh topology?

In bus topology, devices are connected to a common cable, while in mesh topology each device is connected to multiple other devices. Mesh topology provides more redundancy but is more expensive.

What is the difference between bus topology and ring topology?

Ring topology connects devices in a circle, where each device is connected to two other devices. Bus topology has all devices connected to a single cable. Ring topology has a more defined path for data to travel.

What is the difference between bus topology and star topology?

Star topology has each device connected to a central hub, allowing for easier troubleshooting. Bus topology simply connects all devices to a common cable.

What are some common applications of bus topology?

Bus topology works well for small networks since it’s simple and inexpensive. It’s often used to connect peripherals like printers, scanners and other devices.

How many wires are needed for a bus topology?

Just one common cable is needed to connect all devices in a bus topology.

What devices can I connect to?

You can connect workstations, servers, printers, and other peripherals in a bus topology. All devices are connected to a single cable, so anything with a network interface card can join the network..

Does a bus topology require a central controller?

No, a bus topology is decentralized. There is no hierarchy and all devices have equal access to the bus. Messages are passed between devices without relying on a central device to coordinate communication.

What are the benefits of a bus topology?

The main benefits of a bus topology are:

• Simple and inexpensive to implement since only one main cable is required.
• Easy to expand by simply attaching new devices to the bus cable.
• No need for a central switch or hub to control data flow.

What are the downsides of a bus topology?

A bus topology is simple to set up but has some downsides:

• If the main cable fails, the entire network goes down.
• Performance degrades as you add more devices due to signal degradation and interference.
• There is no built-in redundancy. If a connection fails, the network divides into two separate networks.
• It can be difficult to troubleshoot since all devices share a single cable.

Conclusion

And there you have it, a quick rundown of what a bus topology is and how it operates. We looked at its simple linear layout, how devices connect to a central cable to communicate, and the pros and cons of this network structure. While it’s an older topology, the bus design still has its place in smaller, low-traffic networks thanks to its straightforward setup. Hopefully this gives you a good high-level overview of the bus topology so you can decide if it may be a good fit for your own network needs. If so, you now have a solid base to start planning and configuring your own bus topology. And if not, you at least added another topology design to your networking knowledge.
