You’re in chemistry class and your teacher just assigned an experiment using a separating funnel, but you have no idea what that is or how to use one. Don’t panic. This article will teach you everything you need to know about separating funnels so you can ace that lab. We’ll go over what a separating funnel is, why they’re used, and step-by-step instructions for using one properly. With this guide, you’ll be separating solutions like a pro in no time.
What Is a Separating Funnel?
A separating funnel is a piece of laboratory glassware used to separate two immiscible liquids. It has a stoppered conical flask with a tap at the bottom. Separating funnels used in laboratories are typically made from borosilicate glass and their taps are made from glass or PTFE. Typical sizes of a separating funnel are between 30 mL and 3 L.
The separating funnel is commonly used to extract compounds that dissolve in organic solvents from aqueous solutions. For example, you can use it to extract an organic compound from an aqueous solution by adding an organic solvent that is immiscible with water. The organic compound will dissolve in the organic solvent, allowing you to separate it from the aqueous layer.
So if you ever need to separate two immiscible liquids in the lab, the separating funnel is the go-to tool for the job.
What is the Principle of Separating Funnel?
Ever wonder how chemists separate mixtures? The separating funnel uses the simple principle of immiscibility of liquids to do the job.
How It Works
Pour the mixture into the funnel. Let it stand. The liquids will separate into layers based on density, with the densest at the bottom. The valve at the bottom controls the flow of each liquid as you drain them into separate containers.
Key Steps
- Add the mixture and seal the funnel
- Gently swirl and invert a few times.
- Let stand until layers form.
- Open valve and drain the bottom layer. Close valve.
- Repeat, draining each layer separately.
- Collect and label each layer.
With some patience, you’ll have your original liquids back, neatly separated. The principle is simple but powerful, and the key to many discoveries.
Components of Separating Funnel
The main parts of a separating funnel are:
- Funnel Body- It is pear-shaped vessel with a wider mouth and narrow stem. The liquid mixture is poured into the funnel through the mouth.
- Stopcock- It is fitted at the bottom of the funnel stem. It is used to control the flow of liquid from the funnel. When the stopcock is closed, liquid does not flow out. When opened, liquid flows out from the funnel.
- Separating Chamber- The funnel body acts as a separating chamber. When the liquid mixture is poured into the funnel and allowed to stand, the immiscible liquids separate into layers depending upon their densities.
- Upper Layer- The lighter liquid forms the upper layer in the separating chamber. It can be removed by opening the stopcock.
- Lower Layer- The denser liquid forms the lower layer in the separating chamber. It remains in the funnel and can be removed by draining through the stopcock.
- Stand- It provides support to the separating funnel. Some funnels have a clamp to hold the funnel.
- Draining Tube- A tube is connected to the stopcock through which the separated liquid is drained. It directs the flow of liquid into a collecting vessel.
What is the Function of a Separatory Funnel?
A separatory funnel, also known as a separation funnel, is a piece of laboratory glassware used to separate two immiscible liquids. Its main function is to separate and isolate compounds based on their solubility in two different immiscible solvents.
- It allows the liquids to separate into layers based on density. The denser liquid will settle to the bottom, while the less dense liquid floats on top.
- It has a stopper that seals the funnel to prevent evaporation of volatile solvents. The stopper also allows for easy release of pressure buildup.
- It has a tap at the bottom that can be opened to slowly drain the bottom layer into a receiving flask.
- It is carefully designed so that the two solvents do not emulsify, allowing for clean separation. Proper selection of solvents is important.
- It provides an easy way to extract compounds from a mixture by selectively dissolving them in one of the solvents.
- It enables washing of the extracted compounds by shaking with a suitable solvent and releasing the pressure.
- It facilitates solvent changes and product purification through multiple extractions.
- It is a simple but effective tool for purifying and separating compounds in a chemistry laboratory.
The key functions of a separatory funnel are thus enabling liquid-liquid extraction, separation of immiscible liquids into layers, and selective isolation and purification of compounds. With some patience and the proper technique, this indispensable piece of glassware provides an easy way to accomplish these important tasks.
Who Uses Separating Funnels?
1. Chemists
Chemists frequently use separating funnels to isolate compounds from mixtures. The funnel allows them to separate liquids with different densities.
2. Biologists
Biologists use separating funnels when extracting organic compounds from natural materials. The funnel provides an easy way to separate aqueous and organic layers.
3. Food scientists
Food scientists use separating funnels to extract flavor compounds and essential oils from foods and beverages. The funnel allows them to separate the desired compounds from the aqueous mixture.
4. Forensic scientists
Forensic scientists use separating funnels to isolate possible toxins or poisons from bodily fluids and tissue samples. The funnel provides a simple way to separate organic and aqueous layers that may contain the compounds of interest.
5. Medical researchers
Medical researchers use separating funnels to extract potential new drugs from natural materials. The funnel allows them to separate aqueous and organic layers that may contain promising new compounds.
6. Petroleum engineers
Petroleum engineers use large separating funnels to separate crude oil into fractions with different boiling points like gasoline, kerosene, and diesel fuel. The funnel allows them to separate the hydrocarbons by density.
7. Environmental engineers
Environmental engineers use separating funnels to detect pollutants in water and soil samples. The funnel provides an easy way to separate the sample into layers that can then be analyzed for hazardous compounds.
What is a Separating Funnel Used For?
A separating funnel is useful for separating immiscible liquids with different densities.
- Extracting compounds: You can use a separating funnel to extract compounds from mixtures by adding an immiscible solvent. The compound will dissolve in one solvent, allowing you to drain off the other.
- Purification: Separating funnels are great for purifying liquids. By repeatedly extracting with an immiscible solvent, you can remove impurities.
- Fractional distillation: A separating funnel acts as a simple fractionating column. Liquids with different boiling points will separate into layers, allowing you to drain off fractions.
- Solvent extraction: Organic chemists frequently use separating funnels to extract compounds from reaction mixtures using immiscible solvents like diethyl ether or dichloromethane.
- Removal of acids/bases: You can remove acids or bases from a liquid by extracting with an immiscible solvent, then draining off the acidic/basic layer.
- Dewatering solvents: If you have a solvent contaminated with water, you can drain off the water layer using a separating funnel.
- Aqueous-organic extractions: Frequently used to extract organic compounds from aqueous solutions by adding an immiscible organic solvent. The compound partitions between the layers, allowing separation.
When to Use a Separating Funnel
A separating funnel is used in several situations:
1. To separate immiscible liquids: Immiscible liquids like oil and water don’t mix, so a separating funnel can easily partition them.
2. To wash and purify chemicals: The funnel allows you to mix a chemical with a solvent, then separate the dissolved chemical from the impurities.
3. To extract compounds from mixtures: Adding a solvent that only dissolves the compound of interest allows it to be separated out.
4. To isolate natural products: Plant extracts that contain many compounds can be separated into their individual chemicals using solvents and a separating funnel.
5. To separate and collect distillates: The vapors from a distillation can be condensed and collected in separate fractions using a separating funnel.
6. To perform liquid-liquid extractions: Two immiscible liquids are mixed together, then separated in the funnel to transfer compounds from one liquid to the other.
7. To extract and dry ethereal layers: An ether solution can be washed with water in the funnel, then the ether separated off to dry it.
8. To wash and dry organic extracts: Crude extracts from plants or organic reactions can be cleaned up using washings with various solvents and separations in the funnel.
How to Assemble a Separating Funnel
To assemble your separating funnel, you’ll need a few basic pieces of equipment. Gather the funnel itself, along with a stopper, clamp, and ring stand to hold it steady. You’ll also want a collection flask for the separated liquids.
First, place the ring clamp onto a ring stand and secure the clamp in place. Insert the stopper into the top of the separating funnel and place the funnel into the clamp, tightening to hold it upright. Attach the collection flask to the bottom outlet of the funnel to catch the separated liquids.
Ensure all connections are tight to avoid leaks, then you’re ready to add your mixture to the funnel. Gently swirl and vent the funnel to release any pressure buildup as the liquids separate. Once fully separated, open the stopcock to drain off the bottom layer into your flask. Close the stopcock once all the bottom layer has been released.
Your separating funnel is now assembled and ready for use. Take it slow, be careful, and enjoy this useful tool for separating and collecting liquids of different densities!
What are the Two Layers in Separating Funnel?
A separating funnel allows you to separate a liquid mixture into its component layers. There are typically two layers, the organic layer and the aqueous layer.
The organic layer contains organic compounds, which are carbon-based molecules that tend to be nonpolar. This layer will be less dense and float on top.
The aqueous or water layer contains polar molecules that can form hydrogen bonds with water. This layer is more dense so it sinks to the bottom.
To separate the layers, gently swirl the mixture in the funnel and then let it stand. The less dense organic layer will float up top while the denser aqueous layer sinks below. You can then drain off each layer from the stopcock at the bottom of the funnel. Be very careful not to mix the layers again when draining.

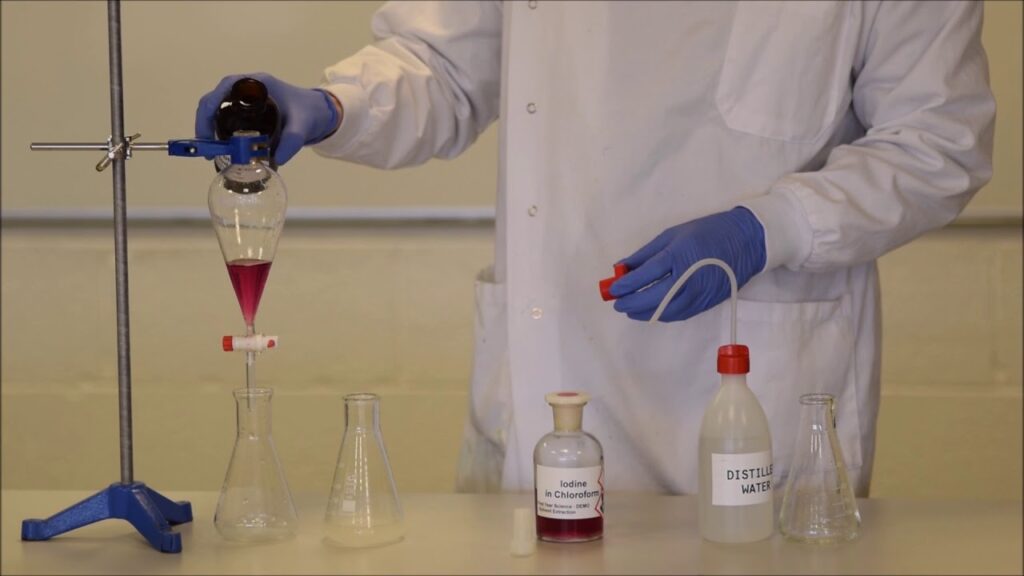

Step-by-Step Guide to Using a Separating Funnel
To use a separating funnel, first assemble the necessary equipment: the funnel itself, a stand, and collection vessels. Attach the funnel to the stand and clamp it in place.
Carefully pour your mixture into the funnel. Allow the layers to separate completely. This can take several minutes to hours depending on the solution. For faster separation, you may gently swirl or rock the funnel. Once separated, open the stopcock to release the bottom layer into a collection flask. Close the stopcock once the layer has drained. Repeat for any remaining layers.
The key is patience. Rushing the process can disturb the layers and affect separation. Take your time and allow adequate separation between draining layers. Be extremely cautious and take proper safety precautions since the solutions could be hazardous.
Rinse the funnel thoroughly after each use to avoid cross-contamination between experiments. With care and patience, a separating funnel can efficiently divide solutions into their component parts.
Examples Of Things You Can Separate Using a Funnel
Here are seven examples of mixtures you can separate using a separating funnel:
- Petroleum crude oil into fractions like gasoline, kerosene and diesel
- An essential oil from plant material in the production of perfumes and aromatherapy oils
- Aqueous and organic solvent phases in extraction
- Lighter fluid from water
- Salad dressings into oil and vinegar phases
- Paint pigments and solvents
- Chemical reactants and products
How to Separate Oil and Water using a Separating Funnel
A separating funnel, also known as a separatory funnel, is used to separate immiscible liquids like oil and water. The separating funnel has a stopper and release valve at the bottom which allows you to drain the separated layers individually.
To use a separating funnel, first add the mixture of oil and water into the funnel. Secure the stopper and shake the funnel to thoroughly mix the liquids. Let it stand until the layers separate into two distinct phases. The less dense liquid will form the top layer while the denser forms the bottom layer. Slowly open the release valve to drain the bottom layer into a receiving flask. Close the valve once only the top layer remains in the funnel. You can then open the valve again to collect the top layer.
Using a separating funnel is a simple and efficient way to separate large volumes of immiscible liquids. It allows you to easily isolate the oil and water layers by density for further use or disposal. The separating funnel’s tapered shape also provides a large surface area so separation happens quickly.
How Can You Separate Petrol and Water Using a Separating Funnel?
To separate petrol and water using a separating funnel, follow these steps:
Add the mixture of petrol and water to the separating funnel. Allow the funnel to stand until the layers separate. The petrol will form the top layer as it is lighter than water. Open the tap of the separating funnel and drain out the bottom layer of water. Close the tap once all the water has been removed.
Finally, open the tap again and collect the top petrol layer in a beaker. Your petrol and water have now been separated using a simple separating funnel.
What are the Advantages of Using a Separating Funnel?
A separating funnel allows you to separate two immiscible liquids by density. This useful tool has many benefits in the lab:
- It’s very efficient. You can separate large volumes of liquids quickly. Using a separatory funnel is faster than evaporation or distillation.
- It’s inexpensive. Separatory funnels are affordable and reusable. Compared to other separation techniques, it’s a cost-effective option.
- It’s simple to use. The process is straightforward. You just add the liquid, shake, vent, and drain. No complex set-up or equipment is required.
- It produces high yields. Little loss of material occurs since the liquids are not heated. Evaporation and distillation can lead to loss of sample.
- It works for a variety of liquids. As long as the liquids are immiscible, a wide range of organic and aqueous solutions can be separated.
- It’s low-tech. Only basic equipment like a separatory funnel, stand, and Erlenmeyer flasks are needed. No power sources are required.
- It’s versatile. Separatory funnels can be used for both small and large scale separations. They work for both analytical and preparative purposes.
- It’s safe. Since solutions are not heated, fire and explosion hazards are minimized. Volatile fumes are also reduced compared to other techniques.
What are the Disadvantages of Using a Separating Funnel?
A separating funnel, although useful, has some downsides you should be aware of before using one:
- They can be expensive, especially larger volume funnels, so may not be practical if you only need to do a few separations.
- There is a risk of cross-contamination between layers if you don’t allow enough time for distinct layers to form. Give the funnel adequate time to settle and separate before draining each layer.
- They require proper cleaning and maintenance after each use to prevent residue buildup. Be sure to rinse the funnel with a solvent to remove any remaining traces of the substances you were separating.
- Separating funnels are made of glass and can break if dropped or mishandled. Handle the funnel carefully, especially when full.
- Some mixtures may form emulsions, preventing a clean separation of layers. You may need to use a reagent to break any emulsions before the separation will work.
- Volatile or hazardous substances can escape from an open separating funnel. Use a funnel with a teflon or ground glass stopper when separating dangerous chemicals.
- Separating funnels require manual operation and monitoring. Automated separation systems are available for some high-volume needs.
Frequently Asked Questions about Separating Funnel
Have some questions about using a separating funnel? Here are a few of the common FAQs:
What is the function of the stopper in a separating funnel?
The stopper in a separating funnel controls the flow of the liquid from the funnel. By opening or closing the stopper, you can pour out the desired layer from the funnel.
What is the name of the phase in the separating funnel?
The layer in a separating funnel refers to the immiscible liquids that separate into two phases. The less dense liquid will be the upper phase, while the denser liquid will be the lower phase. To separate the layers, slowly open the stopper to pour out the lower phase into a collection flask. Then close the stopper and shake the funnel to re-mix the layers before repeating until complete separation.
What are the Precautionary Measures to take while using the separating funnel?
Be extremely careful when handling and pouring from the separating funnel. Always wear proper protective equipment like goggles, gloves and laboratory coats. Never overfill the separating funnel, as pressure buildup can cause the stopper to pop out. When pouring, do it slowly to avoid emulsions. Separating funnels come in different sizes so choose one appropriate for your needs.
How do I ensure an airtight seal?
Make sure all joints are properly greased and the stopper is securely in place. Tighten the stopper by hand, then finish tightening with a wrench.
What if the layers won’t separate?
You may need to swirl or shake the funnel to get the layers to separate. If that doesn’t work, try adding a little more of the solvent. The increased volume will give the layers more space to settle out.
How much solvent should I add?
Add just enough solvent for the layers to separate clearly. Too much solvent will require more washes to isolate your desired layer. Start with a small amount, swirl and let it settle. Add a little at a time until the layers separate.
How do I collect the desired layer?
Once the layers have separated, open the stopcock to drain each layer into a collecting flask. Drain from the top layer down, collecting each layer separately. Make sure each layer has fully drained before moving on to the next layer.
How should I store the funnel?
Disassemble the separating funnel after each use and wash all parts with solvent to remove any residue. Allow all parts to air dry completely to prevent corrosion before storing. Store the disassembled funnel in a dry, dust-free cabinet.
Conclusion
And there you have it, everything you need to know to start using a separating funnel like a pro! While it may seem intimidating at first, with some practice you’ll be separating solutions in no time. Just remember to set it up properly, add your solutions slowly, open the stopcock carefully, and dispose of the waste thoughtfully. With this handy piece of lab equipment, you can perform quick and easy liquid-liquid extractions.
