What is a Spring Balance: Definition, Function, and Measurement

You’re probably familiar with weighing things on a bathroom scale or kitchen scale, but do you know about a spring balance? Spring balances are simple yet clever tools that have been around for centuries, providing an easy way to determine the weight of all kinds of items.

In this article, we’ll explore what exactly a spring balance is, and how it functions to quantify mass. Understanding the science behind these uncomplicated gadgets will give you an appreciation for their ingenuity.

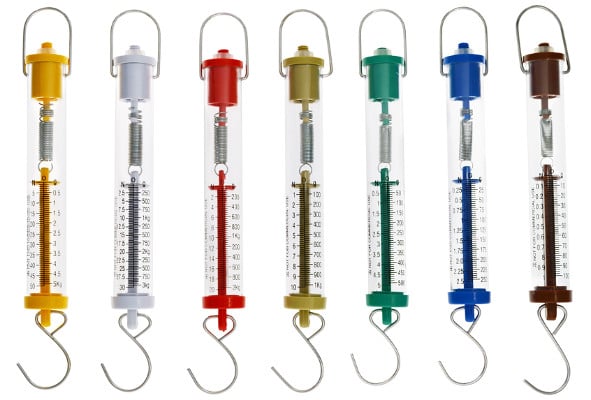

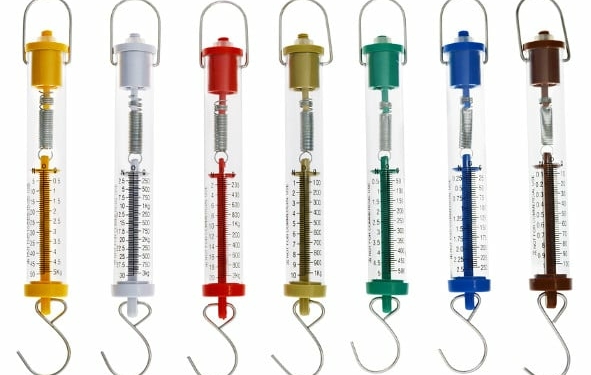

What Is a Spring Balance?

A spring scale, spring balance or newton meter is a type of mechanical force gauge or weighing scale. A spring balance measures weight using a coiled spring. As you attach an object to the balance, the spring stretches and its tension increases. The scale reads the tension to indicate how much the object weighs.

The spring balance works by Hooke’s law which states that the extension of a spring is proportional to the applied force. So, when you attach an object to the balance, the spring stretches and extends. The more the object weighs, the more the spring extends. A pointer moves across a scale and indicates the weight measurement. The scale is calibrated to convert the spring extension into standard weight units like grams, ounces, and pounds. To get an accurate reading, slowly move the pointer across the scale.

Spring balances are inexpensive, portable, and don’t require electricity. However, they are not very precise and the springs lose tension over time. For most household needs though, a spring balance works perfectly well.

How Does a Spring Balance Work?

A spring balance measures the weight of an object using a spring. As you attach an object to the spring balance, the spring stretches according to how much the object weighs. The more the spring stretches, the heavier the object!

The spring is attached to a scale with markings that indicate how much the spring has stretched. So when you attach your object, just read the marking on the scale that lines up with the end of the spring, and you’ll know the weight.

It’s a simple but clever mechanism. The spring provides a counterforce that balances the pull of gravity on the object. The more the spring stretches, the more force it provides. Since the amount of stretch directly relates to how much force the spring produces, the scale can translate that into the weight of the object.

Pretty ingenious for such a basic device! Spring balances are useful for measuring weights in situations where more advanced scales are impractical or unavailable. They demonstrate a straightforward application of forces and the physical properties of springs.

History of spring Balance

The spring balance was devised by British physicist Robert Hooke in 1660. Spring balances were designed to determine the weight of a substance. Richard Salter of Bilston, near Wolverhampton, created Britain’s first spring balance in 1770. He and his nephews John and George created George Salter & Co., a well-known scale and balance manufacturer who developed the spring balance in 1838.

Characteristics of a Spring Balance

A spring balance measures the weight of an object using the extension of a spring. As the object is heavier, the spring stretches more. The characteristics are:

Linearity

The scale reading is directly proportional to the weight of the object. If the weight is doubled, the scale reading also doubles.

Zero error

The spring balance shows zero reading when no load is suspended. If not, it indicates zero error which can be corrected.

Sensitivity

A spring balance is very sensitive and can measure small changes in weight. It can weigh objects to a high degree of accuracy.

Sturdiness

The spring balance is sturdy as the spring provides flexibility and durability. It can withstand overloading without damage.

Portability

A spring balance is highly portable as it does not require any external power source to operate. It can be used anywhere.

Inexpensive

A spring balance is inexpensive, simple and economical to construct and maintain. It does not require any complex mechanism.

Easy to use

A spring balance is very easy to use. The weight of the object can be read directly from the scale. No complex calculations are required.

What are Uses of Spring Balance?

These are some of the uses of a spring balance:

Measurement of mass

The most common use of a spring balance is to measure the mass of objects. The spring balance works on the principle of Hooke’s law which states that the extension of a spring is directly proportional to the applied force. So, when an object is attached to the spring balance, it extends the spring to an extent depending on the weight of the object. The extension of the spring is calibrated to measure the mass in kilograms or grams.

Used in kitchens

Spring balances are commonly used in kitchens to measure the mass of ingredients while cooking or baking. They are more convenient to use than electronic weighing scales as they do not require any power source to operate. They are also more compact and portable.

Used by fishermen

Fishermen also use spring balances to weigh their catch. Since they have to weigh the fish immediately after catching them, a spring balance is more practical to carry and use. They can get an approximate measure of the mass of the fish with a spring balance.

Used in laboratories

In laboratories, spring balances are used to measure smaller masses precisely where electronic balances are not sensitive enough. They can measure masses up to 500 grams accurately. They are also safer to use in laboratories where electronic equipment can be hazardous.

Used to determine force

By attaching different objects of known mass to a spring balance, one can determine the magnitude of an unknown force. This is because the extension of the spring is proportional to the applied force. So, by calibrating the spring balance, forces can be measured.

Used to determine acceleration

When an object attached to a spring balance is accelerated, it will exert a force on the spring and extend it. By measuring this extension, the acceleration experienced by the object can be calculated using F = ma. So, spring balances are useful to determine accelerations of objects.

What are the Parts of Spring Balance and their Functions?

A spring balance has several main parts that allow it to measure weight:

The spring is the flexible, coiled metal piece at the top of the balance. As an object is attached, the spring extends based on how much the object weighs. The more the spring extends, the heavier the object.

• The pointer moves across the scale as the spring extends and retracts. It points to numbers on the scale indicating the weight measurement.
• The scale is the numbered surface the pointer moves across. The numbers increase as the pointer moves to indicate a heavier weight.
• The base provides support and stability for the entire balance. It contains the spring and allows the scale and pointer to be properly oriented.
• The hook or pan is attached to the bottom of the spring. It holds the object being weighed, whether directly or in a container.
• The frame protects the internal components and allows the user to hold the balance.
• Bearings allow the pointer to move smoothly across the scale. They reduce friction and wear.
• The pivot point is where the spring attaches to the frame. It’s the spot that the spring can extend and retract from as weight is added or removed.

What is the Formula for Spring Balance?

A spring balance uses Hooke’s law of elasticity to measure weight. The formula is:

F = kx

Where F is the restoring force exerted by the spring, k is the spring constant (a value that depends on the spring’s stiffness and elasticity), and x is the displacement of the spring from its equilibrium position.

For a spring balance, the displacement (x) depends on the weight of the object attached to the spring. The stiffer the spring, the less it will extend under a given weight. The spring constant (k) indicates how much the spring extends per unit of applied weight. For example, a soft spring may stretch 10 cm under a 1 kg mass, while a stiffer spring may only stretch 2 cm for the same weight.

By calibrating the scale to show equivalent weights for given spring extensions, the spring balance can be used to measure the weight of objects based on how much the spring extends. The key thing to remember is that the amount of stretch depends on both the weight attached and the stiffness of the particular spring. For any given spring, more weight means more stretch, according to the formula F = kx.

How to Use a Spring Balance for Measurement

To use a spring balance, first attach the hook to the top of the scale. Next, attach your object to the hook. Now, read the measurement on the scale to see how much the object weighs.

The spring balance measures the force acting on the spring in the scale. As the force increases, the spring stretches, and the pointer moves to indicate the measurement. Each marking on the scale stands for a fixed unit of force, like pounds or kilograms.

To get an accurate measurement, make sure the object is securely attached and hanging freely. Gently move the scale up and down to allow the spring to settle. Once the pointer stops moving, you can note down the measurement.

For heavier objects, you may need to use a stronger spring. Most spring balances can measure up to 5-10 kilograms or 10-20 pounds. For very heavy weights, you’ll need to use a different type of scale.

With some practice, the spring balance can become a simple but useful tool for weighing and measuring force.

How to Read a Spring Balance

To read a spring balance, follow these steps:

Attach the object you want to weigh to the hook at the bottom of the spring balance. The spring will extend based on how much the object weighs.

Locate the scale on the side of the spring balance. The scale will show a range of weights, for example 0 to 5 kilograms or 0 to 10 pounds.

Find the point where the end of the spring lines up with the scale. This indicates the weight of the object. For example, if the end of the extended spring lines up with the 3 kilogram mark, your object weighs about 3 kilograms.

Note that spring balances are not extremely precise, so the measurement may be slightly off. For more accuracy, you can take multiple readings and average the results.

Spring balances are very useful for measuring weights when high precision is not required. They are inexpensive, simple to use, and easy to read.

Calibrating a Spring Balance for Accuracy

To ensure your spring balance provides accurate measurements, it’s important to calibrate it regularly. Here’s how:

Check that the pointer rests at zero when nothing is attached. If not, slowly turn the adjustment screw at the top of the scale until the pointer sits at the zero mark.

Next, attach a known mass like 500 grams to the hook. The pointer should align precisely with the marking for 500 grams. If it’s off, turn the adjustment screw to correct it. Remove the mass and recheck that the pointer returns to zero.

For the most precise measurements, calibrate your spring balance at the temperature you’ll be using it in. Spring balances can be slightly affected by temperature changes which may impact accuracy. Calibrating at the proper temperature accounts for this effect.

With regular calibration and care, a quality spring balance should provide many years of faithful service assisting in weighing tasks. Keeping it clean, storing in a secure area away from moisture or grime, and avoiding overloading the maximum capacity will help extend its working life.

What is the Difference Between Spring Balance and Balance?

A spring balance and a regular balance measure weight in different ways:

• A spring balance uses a coiled spring to measure weight. As you add more weight, the spring stretches further. The scale shows how much the spring stretched to indicate the weight. A balance, on the other hand, uses a beam that tilts to one side as you add weights, until it reaches equilibrium.
• A spring balance can only measure the weight of objects, while a balance can also be used to compare different weights. You can place weights on one side of the balance and the object you want to weigh on the other side.
• A spring balance is more portable since it does not require a level surface to operate. A balance requires a level surface to work properly.
• A spring balance is less precise than a balance. For most purposes, a spring scale can measure weight to within 5-10% of the actual weight. A balance can typically measure within 1% of the actual weight.
• A spring balance has a shorter range of weights it can measure compared to a balance. Most spring balances can measure up to 100 lbs or kgs, while a balance can measure up to several tons.

In summary, the main differences are how they measure weight, their portability and precision. For most everyday needs though, either a spring balance or balance should work just fine to determine the approximate weight of an object.

What are the Advantages of Spring Balance?

A spring balance has several useful benefits:

• It’s inexpensive and simple to use. Spring balances are affordable and easy to operate, requiring no batteries or electronics.
• Portable and compact. Spring balances are lightweight, small in size, and highly portable. They can be used anywhere.
• No need for calibration. Spring balances maintain accurate measurements without needing frequent calibration or adjustment.
• Withstands environmental changes. Spring balances provide consistent performance in a wide range of temperatures and environmental conditions.
• Measures force in newtons. Spring balances directly measure the force applied in newtons, which is the standard unit of force in the metric system.
• Rugged and durable. Spring balances contain few moving parts, so they tend to be very durable and long-lasting.
• Easy to read. The linear scale and pointer on a spring balance make it very easy to read and interpret the force measurement.
• Can be used for traction. Spring balances can be used to measure the pulling force or tension in a rope, cable or chain. Their simple design is well-suited for this application.

What are the Disadvantages of Spring Balance?

Spring balances, while simple to use, come with some downsides you should be aware of:

• The readings can be inaccurate. The springs in the balance can stretch or compress over time and with frequent use, affecting the accuracy of the measurements. The springs are also sensitive to changes in temperature, which can temporarily impact the readings.
• Limited capacity. Spring balances typically only measure up to a few kilograms or pounds, so they may not suit your needs if you’re weighing heavier objects. You’ll need a different scale for larger loads.
• Difficult to read. The small dial on a spring balance can be hard to read precisely, especially when the pointer is between two markings. You may have to estimate the reading, leading to possible errors.
• They require manual operation. Unlike digital scales that can turn on and off automatically, you have to manually adjust and take readings with a spring balance. This can be time-consuming if you have many items to weigh.
• They lack advanced features. Spring balances only provide basic weighing functionality. They don’t offer extras like unit conversion, data storage, or connectivity that you’ll find on digital scales.

While spring balances are simple, inexpensive tools, for many applications digital scales are more practical thanks to their advanced features and higher accuracy. But for rough measurements and demonstrations, a spring balance can still be useful.

Spring Balance FAQs

A spring balance is a simple device used to measure weight or force. Here are some common questions about spring balances:

How does a spring balance measure weight?

A spring balance contains a spring that is fixed at one end, with a hook at the other end to attach an object. As the object is attached, it pulls on the spring and stretches it. The more the spring stretches, the more force is applied. The spring balance uses a scale to convert the spring’s extension into a weight measurement.

What units do spring balances measure in?

Spring balances can measure weight in units like kilograms (kg), grams (g), ounces (oz.), Newton, and pounds (lb.). The unit of measurement depends on the scale used on the particular spring balance.

Are spring balances very accurate?

Spring balances offer a simple way to measure weight, but they are not extremely precise. They are subject to variations and inaccuracies from spring extension and fatigue over time. For most basic purposes, spring balances can provide reasonably accurate weight measurements. But for very precise measurements, electronic balances are more accurate.

What are some uses of spring balances?

Spring balances have many useful applications. They are commonly used in schools to teach students about force and weight. They are also used in various industries to measure the weight of small objects where high precision is not critical. Some people also use basic spring balances in activities like fishing to weigh their catch.

Conclusion

The spring balance is a simple but handy device that lets you make basic measurements of weight. It’s been around for a couple hundred years, and while it has its limitations, for some applications nothing beats its simplicity and portability. Just remember that to get an accurate reading, you need to make sure the spring is properly calibrated and you read the scale right at eye level. Whether you’re a scientist looking to measure precise weights in the lab or a fisherman weighing your prized catch, the trusty old spring balance has you covered. Keep it balanced, keep it level, and take care not to overload it. Follow those basics and you’ll find this classic gadget always measures up.
