Hydrometer – Definition, Working Principle, Types & Uses

A hydrometer is an instrument used to determine the specific gravity of liquids or the ratio of the liquid’s density to that of water. A hydrometer is often made of glass and consists of a cylindrical stem and a bulb weighted with mercury or lead shot to help it float upright.

In this article, we’ll break down everything you need to know about hydrometers. You’ll learn what they are, how they work, the different types, and how to use them like a pro.

What Is a Hydrometer?

A hydrometer is an instrument that measures the specific gravity of liquids. It’s used to determine the density and alcohol content of fluids like water, battery acid, and alcoholic spirits. The basic idea is simple: a weighted float is placed in the liquid, and how high or low it sits in the liquid indicates its density.

The hydrometer works by measuring buoyancy. The float has a narrow stem with graduations that sit above the liquid. As the liquid’s density changes, the float will rise or sink, indicating its specific gravity on the scale. Less dense liquids like water will cause the float to ride higher, while denser liquids like battery acid will cause it to sink lower.

Hydrometers come in different types for different uses. Brewers use them to measure alcohol content in beer or wine, while battery makers use them to check the acid concentration in batteries. Whatever the application, a hydrometer is an easy, inexpensive way to get precise density measurements and ensure quality.

How Does a Hydrometer Work?

A hydrometer works by measuring the density of liquids. It contains a weighted float that bobs up and down depending on the density. The denser the liquid, the higher it floats. How exactly does this work? As you place the hydrometer in a liquid, it displaces a volume of liquid equal to its own volume. If the liquid is dense, it provides more buoyancy, causing the hydrometer to float higher. If the liquid is less dense, it offers less support, so the hydrometer sinks lower.

The hydrometer has a scale inside the glass tube that corresponds to specific gravity, which relates the density of the liquid to the density of water. Pure water has a specific gravity of 1.000. As the specific gravity increases, the hydrometer floats higher. For example, a liquid with a specific gravity of 1.300 is 30% denser than water, so the hydrometer will float 30% higher.

Hydrometers are calibrated for different temperature ranges since density changes with temperature. They come in different types for measuring salinity, acidity, and the relative density of fluids like blood, urine, and antifreeze. So, whatever you need to measure, there’s a hydrometer that can do the job!

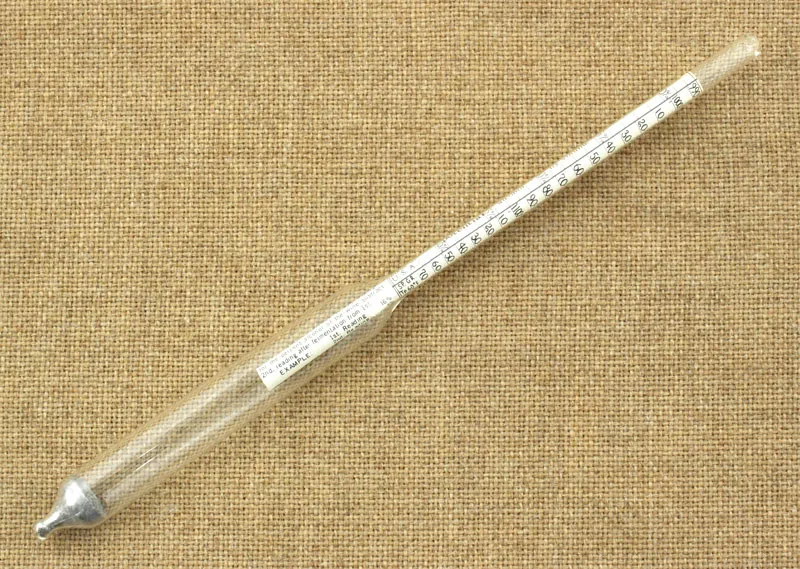

What are the Parts of a Hydrometer?

Hydrometers consist of two parts: a stem and a bulb.

• The stem: The long glass tube that extends into the liquid.
• The bulb: The round ball at the bottom of the stem that contains air or liquid to help the hydrometer float.

For the most accurate readings, ensure the hydrometer can float freely in the liquid. Give it a gentle spin or twist to release any air bubbles clinging to the stem. Take your reading once the hydrometer stops moving. With regular use and care, a quality hydrometer can provide many years of reliable service.

Types of Hydrometers and Their Applications

These are the types of Hydrometers and their applications:

Triple Scale Hydrometers

The triple scale hydrometers are the most common types used to measure the density of liquids. They contain three scales: specific gravity, Baumé, and potential alcohol. The specific gravity scale measures density relative to water, the Baumé scale is used for acids and bases, and the potential alcohol scale measures the alcohol content of distilled spirits. These are very versatile and useful for a range of applications.

Thermohydrometers

Thermohydrometers are special hydrometers used to measure the density of liquids at elevated temperatures. They contain an additional scale to account for the thermal expansion of the liquid. These are important for industrial applications where high-temperature liquids are common, such as in boilers, cooling systems, and chemical processing plants. The additional temperature scale provides a correction so accurate density readings can still be obtained.

Precision Hydrometers

For applications requiring a high degree of accuracy, precision hydrometers are used. They contain very fine, close-interval scale divisions to allow for precise measurements. Common types are the National Bureau of Standards hydrometers and precision alcoholometers used in the distilling industry. These specialized hydrometers are more fragile and expensive but essential for certain industries and research applications where standard hydrometers do not provide enough accuracy.

In summary, the three main types of hydrometers, triple scale, thermohydrometers, and precision hydrometers, each have different scale types and are used for a variety of density measurement applications across many industries. The specific type used depends on the level of accuracy required and the properties of the liquid being measured.

Specialized hydrometers

The names of specialized hydrometers are often derived from their intended application; a lactometer, for instance, is a hydrometer specifically made for use with dairy products. Sometimes, people refer to them by this precise name, while other times, they call them hydrometers.

These are the different types of specialized hydrometers named after their uses:

• Lactometer for milk
• Alcoholometer for wines and alcohols
• Saccharometer for sugar
• A barometer for tanning liquids in leather-making.
• Urinometer for urine analysis
• Acidometer for acids
• Battery hydrometer for lead-acid battery
• Salinometer for liquids with salt content
• Thermohydrometer for fuel oils like petroleum

What is a Hydrometer Test Used For?

A hydrometer test is used to determine the density and specific gravity of liquids. It can help evaluate the quality and purity of the liquid. Hydrometers are commonly used in several industries and applications:

• Brewing and winemaking: Hydrometers are used to measure the sugar content and alcohol potential of the wort or must. By tracking the specific gravity, brewers and winemakers can monitor fermentation and know when it’s complete.
• Battery testing: Hydrometers can check the charge level and health of lead-acid batteries by measuring the density of the electrolyte fluid.
• Antifreeze testing: The specific gravity of antifreeze can be measured to ensure it’s concentrated enough to properly prevent freezing and corrosion.
• Fuel testing: The density of gasoline, diesel, and other fuels can be checked to detect water contamination or confirm that it meets specifications.

So, in summary, hydrometer tests can assess quality, monitor processes, troubleshoot issues, and ensure standards are met across many types of liquids. They provide a simple but effective way to gain useful insights and make important measurements.

How to Use a Hydrometer

To use a hydrometer, follow these steps:

1. Clean and rinse your hydrometer before the first use and after each reading. Gently wipe away any dirt or debris with a soft cloth to ensure an unobstructed view of the scale.
2. Check that the hydrometer reads zero when placed in water. If not, you may need to adjust the weights to calibrate it. An uncalibrated hydrometer will give incorrect readings.
3. Fill your test jar with the liquid you want to measure. For wine or beer, fill the jar with a sample from your fermenter. For other liquids like antifreeze or battery acid, fill the jar with a sample from the container.
4. Gently lower the hydrometer into the liquid. Do not drop it in, as this can damage the hydrometer.
5. Hold the hydrometer in a vertical position and view the scale at eye level. Read the number that aligns with the top of the meniscus, which is the bottom of the curved surface of the liquid.
6. Note the reading and the temperature of the liquid. Temperature affects density, so hydrometer readings are calibrated for a specific temperature. You may need to adjust the reading based on the calibration instructions.
7. Rinse and dry your hydrometer and test jar after use and store in a secure location away from high heat. With proper care and storage, a quality hydrometer should provide years of accurate service.

Following these best practices will help ensure you get the most accurate and useful readings from your hydrometer. Be sure to consult the instructions for your specific hydrometer for any additional guidance.

How to Read a Hydrometer

To properly read a hydrometer, follow these steps:

First, fill the hydrometer jar about 2/3 full with the liquid you want to test. For accuracy, the liquid should be at room temperature. Gently lower the hydrometer into the jar.

Once the hydrometer is floating freely without touching the sides of the jar, take a reading at the point where the liquid surface meets the stem. This is your hydrometer reading. If there are several scales on the hydrometer, read the one that corresponds to the specific gravity or proof you want to measure.

Carefully remove the hydrometer and clean it with water. Dry the hydrometer and store it in its case. Record your reading for reference.

Compare your reading to the hydrometer’s reference chart to determine the specific gravity, proof, Brix, or other measure. The closer the reading is to 1.000, the less dense the liquid. Higher readings indicate a more concentrated solution.

For the most accurate results, take two or three separate hydrometer readings of the same sample and average the results. Be very careful when handling and cleaning the hydrometer, as they are fragile instruments. With proper use and care, a hydrometer can provide many years of service.

What are the Advantages of a Hydrometer?

These are some of the advantages of a Hydrometer:

Helps determine density

A hydrometer measures the density of liquids to help determine their composition. By inserting the hydrometer in a liquid, you can see if the reading matches the expected density for that substance.

Checks purity

Hydrometers can check the purity of a liquid by determining how closely its density matches the expected value. For example, a hydrometer can detect excess water in ethanol fuel or other adulterants in gasoline.

Monitors fermentation

Winemakers and brewers use hydrometers to monitor the progress of fermentation by tracking how the density changes over time. The dropping density shows how much sugar has been converted to alcohol.

Low cost and simple to use

Hydrometers are inexpensive, easy to obtain, and require no power source to operate. They provide a quick and simple way to gather useful information about liquids.

It can be calibrated for different uses.

Hydrometers come in a range of types for different applications. There are hydrometers for testing battery acid, wine, beer, antifreeze, and other liquids. Each is calibrated to provide the most useful information for that substance.

Allows for temperature compensation

Some hydrometers include a built-in thermometer or temperature scale to compensate for changes in liquid density at different temperatures. This allows for more accurate readings, especially for fermented beverages.

Reusable and durable

Hydrometers made of glass and properly cared for can provide many years of service. As simple tools with no electronic components, they tend to be very durable and withstand repeated use.

Safe and environmentally friendly

Hydrometers require no hazardous chemicals or power to operate. They provide an eco-friendly method for measuring liquid densities and monitoring quality.

What are the Disadvantages of a Hydrometer?

Hydrometers, while useful for measuring liquid densities, have some downsides to consider:

One disadvantage is that hydrometers are fragile instruments, typically made of glass, so they can break easily if dropped or mishandled. They require careful storage and transport to avoid damage.

Hydrometers also only provide a “snapshot” measurement at a single point in time. They do not allow for continuous monitoring of density changes. For some applications, a density meter may be better suited.

Hydrometers require a large sample volume to float properly, so they cannot be used when only a small amount of liquid is available for testing. They are not suitable for microscale measurements.

The accuracy of a hydrometer depends on the temperature of the liquid. Density varies with temperature, so readings must be adjusted or calibrated to a standard reference temperature. Failure to do so will result in incorrect density values.

Hydrometers cannot measure density for non-homogeneous liquids or those containing suspended solids. They only work properly in single-phase, homogeneous liquids.

The scale markings on a hydrometer, while evenly spaced, do not represent a linear density scale. Each interval does not correspond to the same density difference. This can complicate readings and calculations.

Hydrometers require the proper correction factors to account for the volume of the hydrometer stem in the liquid. Without these corrections, values will be slightly off. Proper use of correction tables or scales is important for the most accurate results.

Finally, hydrometers cannot be used for liquids that chemically interact with or damage the hydrometer materials, like strong acids. Alternative density measurement methods must be used in these situations.

In summary, while a useful and inexpensive tool, the hydrometer does have some significant disadvantages to be aware of depending on your application and needs. Other density measurement techniques may be better suited in some cases.

How to choose a hydrometer?

To choose a hydrometer, you’ll want to consider a few factors:

Material

Glass hydrometers are classic and durable but can break if dropped. Plastic hydrometers are safer but may warp over time. Both will get the job done, so choose based on your needs and preferences.

Range

Make sure the hydrometer measures in the range you need, whether that’s for measuring battery acid, winemaking, or another purpose. The range is specified by the lowest and highest specific gravity the hydrometer can measure.

Accuracy

More expensive hydrometers will be carefully calibrated to provide very accurate readings. For most casual uses, an accuracy of 0.001 to 0.005 specific gravity units is sufficient. High-end hydrometers aimed at professional winemakers may offer greater precision.

Ease of use

Consider a hydrometer with easy-to-read, clearly marked measurements that won’t fade over time. Some have built-in thermometers which provide temperature correction to account for the effect of temperature on liquid density.

Price

Hydrometer prices range from under ₦10,000 to ₦20,000 or more for professional models. In most cases, an inexpensive but well-made hydrometer will work great for home use and casual measurements.

In summary, think about how you’ll use your hydrometer and choose an affordable, accurate model that measures in the specific gravity range you need. With the right hydrometer, you’ll be measuring liquid density in no time!

Calibrating and Caring for Your Hydrometer

To get the most accurate and reliable readings from your hydrometer, it’s important to properly care for and calibrate the device. Here are the key steps to follow:

First, inspect your hydrometer for any cracks or damage before each use. Clean the stem and cylinder with distilled water and wipe dry to remove any residue. Store your hydrometer upright in a secure container, like the original box, when not in use.

Next, calibrate your hydrometer in distilled water at a specific temperature for the most precise measurements. For homebrewing, calibrate at 60°F or 15°C. The hydrometer should read 1.000 SG at this temperature. If not, you may need to adjust the calibration or get a new hydrometer.

Finally, handle your hydrometer carefully by the upper end of the stem, not the bulb. Gently lower into your wort or must and give it a quick spin to release any trapped air bubbles. Once the hydrometer has settled and stopped spinning, note the reading at the meniscus line. Rinse after each use and dry completely to avoid diluting your next sample.

Following these best practices for caring for and calibrating your hydrometer will help ensure you get consistent and accurate specific gravity readings every time. Precise measurements are key to monitoring fermentation and producing a high-quality end product.

What is the Difference Between a Hydrometer and a Hygrometer?

A hydrometer and a hygrometer are two useful but different tools for measuring moisture levels.

A hydrometer determines the specific gravity of liquids to calculate alcohol or sugar content. It measures the density of a liquid compared to water. Hydrometers are commonly used in winemaking, brewing, and battery acid testing.

In contrast, a hygrometer measures the amount of moisture in the air, known as relative humidity. It determines how much water vapor is present compared to the maximum amount the air can hold at a given temperature. Hygrometers are useful for monitoring humidity levels in spaces where moisture control is important, such as cigar humidors, incubators, and HVAC systems.

While a hydrometer lets you know the density and specific gravity of a liquid, a hydrometer indicates how damp or humid the air is. One works in liquids, the other in gas. Both can be useful for quality control and ensuring proper conditions, but they serve different purposes.

Best Practices for Accurate Hydrometer Readings

• Make sure your hydrometer is clean before each use. Gently wipe down the stem and bulb with a soft, damp cloth to remove any dirt or residue that could affect the reading.
• Check that the hydrometer is floating freely in the liquid. It should not be touching the sides or bottom of the container. If it’s not floating properly, the reading will be off.
• Ensure the liquid in the container is still and not swirling or moving around, which can impact the hydrometer reading. Allow the liquid to settle for a minute before taking a reading.
• Read the hydrometer at eye level for the most accurate reading. Looking at it from an angle can make the reading appear higher or lower than it really is.
• Note the reading where the surface of the liquid meets the stem of the hydrometer. This is your specific gravity reading. The markings higher up on the stem indicate the potential alcohol percentage, so be sure to read the proper scale.
• Double-check that you’re using the correct hydrometer for the type of liquid you want to measure. Hydrometers are calibrated for different liquids, so using the wrong one will give you an incorrect reading.
• For the most precise readings, take multiple readings and average the results. As liquid temperatures change, the density and readings can vary slightly. Multiple readings will ensure accuracy.

Hydrometer FAQs: Your Top Questions Answered

Here are the most common questions about using a hydrometer:

What’s the difference between a hydrometer and a lactometer?

A hydrometer measures the density of liquids, while a lactometer specifically measures the density of milk to determine milk fat content. Hydrometers can be used for various applications, whereas lactometers have a more limited, specialized use.

When do I use a hydrometer?

You’ll use a hydrometer when you want to measure the density, or specific gravity, of a liquid. Homebrewers use them to measure the alcohol content of beer or wine, aquarists use them to check salt levels in a fish tank, and battery makers use them to test acid density.

Which principle do hydrometers work on?

Hydrometers work according to Archimedes’ principle, which states that an object immersed in a fluid experiences an upward buoyancy force equal to the weight of the fluid it displaces. The more dense the liquid, the farther the hydrometer sinks and the higher the reading.

What does 1.000 mean on a hydrometer?

A reading of 1.000 indicates the density of pure water at a specific temperature. As the density of the liquid you’re measuring increases or decreases, the hydrometer will float higher or lower, respectively.

What’s the difference between an alcohol meter and a hydrometer?

An alcohol meter specifically measures the alcohol content in a solution, while a hydrometer is used to determine the density and specific gravity of any liquid. Hydrometers can be used for various applications, whereas alcohol meters are designed solely for measuring alcohol concentration.

Conclusion

Now that you know the ins and outs of your hydrometer and how to use it properly, you can feel confident taking accurate gravity readings. Just remember to calibrate it regularly, triple-check your readings, and clean it after each use. With a well-maintained hydrometer and good technique, you’ll get reliable data to create your ideal brew every time.
