In this article, we’ll explore the gold leaf electroscope, including what it is, how it’s built, what it can measure, and how to read one of those fancy gold leaf electroscope diagrams. Strap in as we demystify this old-timey scientific instrument and walk through how to build your own using easy-to-find materials. You’ll be amazed at how this simple device harnesses the power of static electricity in a visible form. Let’s charge up our knowledge of the gold leaf electroscope!

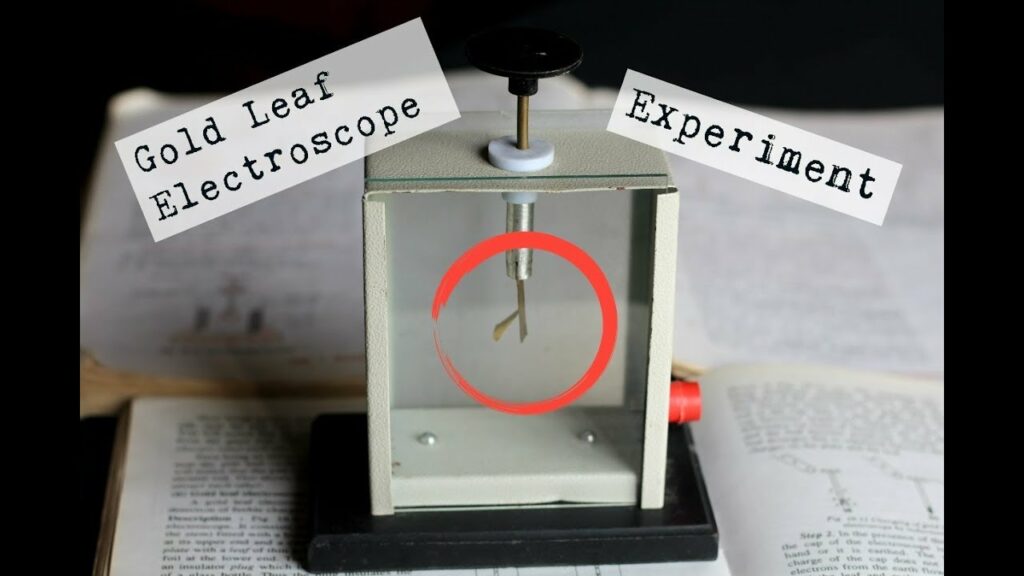

What Is a Gold Leaf Electroscope?
A Gold Leaf Electroscope is a type of electroscope that consists of two gold leaves used to detect the presence of electric charge in a body and for classification of its polarity. It consists of two thin gold leaves suspended in a jar. When an object with the same charge is brought near the electroscope, the gold leaves repel each other.
How Does a Gold Leaf Electroscope Work?
A gold leaf electroscope works by detecting the presence of electric charge on an object. The device consists of a metal rod with two thin gold leaves suspended at its bottom end. When a charged object is brought close to the top of the rod, electrons flow onto or off of the gold leaves, causing them to repel each other and move apart.
The further the gold leaves move apart, the greater the amount of charge on the object. Connecting the electroscope to ground, discharges it and causes the leaves to move back together. Measuring how far the leaves separate allows you to calculate the charge of the object and determine whether it’s positively or negatively charged.
This device allows you to detect electric charge without discharging the object, unlike other charge detectors. The Gold Leaf Electroscope demonstrates the electrostatic repulsion between objects with the same charge in a simple yet visually striking way.
Who Invented the Gold-leaf Electroscope?
The gold-leaf electroscope was invented in 1787 by British clergyman and physicist Abraham Bennet. Bennet was experimenting with electrostatic charge and needed an instrument sensitive enough to detect small electric charges. He found that thin gold leaf foil would separate under the influence of an electric charge, and the gold-leaf electroscope was born.
How to Set up a Gold Leaf Electroscope
To construct and set up a gold leaf electroscope, follow these steps:
- Obtain a glass jar with an insulated bottom. A jar with a plastic or rubber base works well. This will act as the case for your electroscope.
- Bend a thin strip of gold leaf into a V-shape and attach it to the bottom of the insulator. The gold leaf should be able to move freely. This will act as the indicator.
- Attach a metal rod to the center of the insulator so it stands vertically inside the jar. Connect a disk of aluminum foil to the top of the rod. This will act as the collector plate.
- Put the jar components together, with the gold leaf and rod inside. Seal the jar to keep out air drafts.
- Charge the electroscope by touching the collector plate with a charged object like an electrified plastic rod. The gold leaf will repel, indicating the electroscope has the same charge.
- Ground the electroscope by touching the collector plate with your finger. The gold leaf will collapse, indicating the charge has been released.
Your gold leaf electroscope is now set up and ready to detect electrical charges! With some practice, you’ll be using it to explore the mysteries of static electricity in no time.
Parts of a Gold Leaf Electroscope
These are the parts of a Gold Leaf Electroscope
- Gold Leaf: Two thin gold foils that act as the indicator. They move apart when charged and come together when discharged.
- Supporting Rod: A metal rod that attaches the gold foils to the base. It conducts charge to and from the gold foils.
- Sealing Jar: An airtight jar that encloses the electroscope. It protects the gold foils from air currents and moisture. Base: The bottom platform that supports the entire apparatus.
- Charging Terminal: A metal terminal at the top of the jar where you apply charge to charge the electroscope.
- Grounding Terminal: A metal terminal at the bottom of the jar used to discharge the electroscope by connecting it to ground.
It also consists of a brass rod with a brass disc at the top, and at the bottom, there are two thin gold leaves in the form of foils, and an insulator plug.
Uses of a Gold Leaf Electroscope
A gold leaf electroscope has many useful applications, including the following:
Detecting Static Electricity
The gold leaves will diverge when the electroscope encounters a charged object, allowing you to detect the presence of static electricity.
Determining the Polarity of a Charge
The gold leaves will diverge away from a negative charge and towards a positive charge. This allows you to determine if an unknown charge is positive or negative.
Comparing the Magnitude of Charges
The further the gold leaves diverge, the greater the charge. You can compare the charge of multiple charged objects by observing which causes the greatest divergence.
Grounding Yourself
Touching the electroscope will allow built-up static charge in your body to flow to the ground, preventing static shocks.
Measuring High Voltages
An electroscope can be used to detect and measure the voltage of high-voltage sources like Van de Graaff generators that would otherwise be difficult to measure directly.
Gold Leaf Electroscope Diagram
The gold leaf electroscope is a simple device used to detect static electricity. It consists of two thin gold leaves suspended in a jar. When an electrostatically charged object is brought near the electroscope, the gold leaves repel each other and spread apart.
The electroscope contains two narrow strips of gold foil suspended from an insulating rod in the jar. The gold leaves hang parallel to each other under normal conditions. However, when a charged object is brought near the electroscope, it causes the gold leaves to become charged through electrostatic induction. Since the gold leaves now have the same charge, they repel each other and move apart.
The amount of separation indicates the strength of the charge. The electroscope can determine whether an object is positively or negatively charged based on which way the gold leaves move. It’s a useful apparatus for experiments regarding static electricity and charge.
What are the Advantages of Gold Leaf Electroscope?
The gold leaf electroscope has several useful advantages:
It is a very sensitive instrument that can detect small electric charges. The thin gold leaves repel each other even with a small electric charge, causing them to diverge. This allows the electroscope to detect charges as little as 10^-12 coulomb.
It is a simple device, easy to construct and operate. The electroscope only requires basic materials like gold foil, metal rod and jar. It does not require any complex setup or calibration.
It can be used to detect the presence of electric charge as well as determine the type of charge, whether positive or negative. The gold leaves diverge for both positive and negative charges but in opposite directions.
It retains charge for a long time due to the high capacitance of the metal plate and rod. This allows convenient time for experiments and observations.
It is a versatile device with many applications like detecting charge on objects, measuring charge quantities and studying the distribution of charge.
It is a useful teaching aid for demonstrating electrostatic principles like charge interaction, induction and distribution in a simple way.
Its parts like gold foil, metal plate and rod provide large surface area for charge interaction and induction. This enhances its sensitivity and ability to hold more charge.
Factors Affecting the Performance of a Gold Leaf Electroscope
The sensitivity and accuracy of a gold leaf electroscope depends on several factors:
- Material of leaves: Gold leaves are most sensitive as gold is a good conductor. Other options like aluminum are less sensitive.
- Area of leaves: Larger the area of leaves, the more sensitive is the instrument.
- Thickness of leaves: Thinner leaves are more sensitive as they experience greater deflection for the same charge.
- Length of leaves: Longer leaves show greater deflection and are more sensitive.
- Separation between leaves: Closer the leaves, the greater is the electrostatic repulsion between them leading to increased deflection.
- Polarity of charge: The instrument is most sensitive for charges of the same polarity as that of the leaves.
- Humidity: Lower humidity increases sensitivity as it reduces charge leakage. High humidity causes the charge to leak away, reducing sensitivity.
- Insulating material: High quality insulating material like sulphur minimizes charge leakage giving greater sensitivity.
Following these principles will allow you to construct an electroscope with maximum sensitivity for detecting and measuring electric charge. With regular use and maintenance, a well-built electroscope can provide many years of service.
What is the Difference Between Normal Electroscope and Gold Leaf Electroscope?
The gold leaf electroscope and the normal electroscope have some key differences:
- Gold leaf electroscope uses two thin gold leaves while the normal electroscope uses aluminum foils. The gold leaves are more sensitive to small charges.
- Gold leaf electroscopes can detect even minor electrical charges due to the high conductivity and low mass of gold leaves. Normal electroscopes are less sensitive.
- Gold leaf electroscopes can measure both positive and negative charges. Normal electroscope typically only measures one type of charge.
- Gold leaf electroscopes are more expensive to make due to the high cost of gold. Normal electroscope is very inexpensive to construct.
- Gold leaf electroscope is mainly used for educational demonstrations. Normal electroscope has more practical applications.
- Gold leaf electroscope requires a dry environment to work properly. Any moisture can cause the gold leaves to stick together. Normal electroscope is not as sensitive to humidity.
- The gold leaves in a gold leaf electroscope spread farther apart than the foils in a normal electroscope, allowing for easier viewing of small charge effects.
In summary, while the basic operating principles of the two devices are the same, the gold leaf electroscope is a more sensitive instrument better suited for demonstrating electrostatic effects due to its use of gold leaves. The normal electroscope, on the other hand, is more robust and practical for general applications.
Frequently Asked Questions
Have questions about how a gold leaf electroscope works or what it’s used for? Here are some common FAQs:
Does the gold leaf electroscope need charging to work?
Yes, charging the electroscope allows the gold leaves to diverge and detect static electricity. You can charge it through contact with a charged object or by induction.
Who invented the electroscope?
The gold leaf electroscope was invented in 1787 by British clergyman Abraham Bennet. Bennet created the instrument to detect electrical charge.
Why is there a metal case?
The metal case shields the gold leaves from drafts and protects them. It allows the gold leaves to only be influenced by the electrical charge of the plate.
Why do the gold leaves spread apart when charged?
When the electroscope is charged, the gold leaves gain the same electrical charge and repel each other, causing them to spread apart. The amount of divergence indicates the strength of the charge.
What is the function of the gold leaf electroscope?
The gold leaf electroscope detects and measures static electrical charge. The gold leaves diverge due to repulsion of like charges, indicating the presence and strength of an electrical charge.
How do you discharge an electroscope?
You can discharge an electroscope by grounding it, touching the cap with your finger to transfer the charge to the ground. The gold leaves will collapse once discharged.
What are the three methods of charging objects?
The three methods of charging objects are friction, conduction, and induction.
Why do the gold leaves in an electroscope fold back when touched with hands?
The gold leaves fold back when touched with your hands because the electroscope takes on the same charge as you, causing the leaves to repel each other.
What is the name of the first electroscope
The first electroscope was a pivoted needle called the versorium. It was invented by British physician William Gilbert around 1600.
What does the degree of divergence of gold leaves mean in a gold leaf electroscope?
The more the gold leaves in an electroscope diverge, the greater the amount of charge.
Why is a gold leaf electroscope enclosed in a glass case?
An electroscope is enclosed in glass to shield the leaves from air currents that could affect them.
How can a gold leaf electroscope be used to detect charge?
A gold leaf electroscope can detect charge through the movement of thin gold leaves.
What happens to the leaf of a gold leaf electroscope when the same charge is put on it?
When an electroscope is charged, the leaves repel each other due to their like charges. The more charge added, the farther the leaves will spread apart.
How can you tell if an electroscope is positively or negatively charged?
To determine the charge, observe which way the leaves move. If the leaves spread apart, it indicates a positive charge. If the leaves move towards each other, it signifies a negative charge.
Why is it called a gold leaf electroscope?
The electroscope is so named because early versions used gold foil leaves to visibly detect electrical charge.
What causes the leaves on the electroscope to attract?
The gold leaves attract when neutralizing opposite charges are introduced, canceling the charge and allowing the leaves to come back together. The electroscope requires an insulated metal plate, rod, and leaves, as charge will dissipate without proper insulation.
Why is tin foil used in gold leaf electroscopes?
Tin foil is used in gold leaf electroscopes because it is conductive but lightweight. The thin sheets of foil are suspended and separated, allowing them to move freely when charged particles are detected.
What are two uses of a charged gold leaf electroscope?
Two uses of a charged gold leaf electroscope are:
- Detecting the presence of electric charge. The gold leaves will diverge when a charged object is brought near the electroscope.
- Measuring the quantity of electric charge. The amount of divergence indicates the strength of the charge.
What materials are needed to build a gold leaf electroscope?
The essential parts are a glass jar, gold leaf, metal rod attached to an insulator like amber or glass, and wire leads. When charged particles build up on the gold leaf, it moves away from the rod, indicating the presence of an electric charge.
What are some applications of the gold leaf electroscope?
These devices were historically used to detect the presence of static electricity. Today, electroscopes are used for physics education to help students visualize electrostatic concepts. Some hobbyists also use them to detect ambient levels of radiation.
With regular use, will a gold leaf electroscope lose accuracy?
Over time, charge may build up on the glass surface, reducing the electroscope’s sensitivity. To restore accuracy, you can discharge the electroscope using a grounding wire. You can also replace the gold leaf, as it can become damaged or tarnished with repeated use.
Conclusion
So there you have it, an overview of the gold leaf electroscope. From how it’s constructed to how it works and its applications, we covered the basics. You now know that it detects the presence and sign of electric charges through the separation of its gold leaves. While a relatively simple device, the gold leaf electroscope played an important role in the early study of electricity. It’s a neat piece of scientific history.
