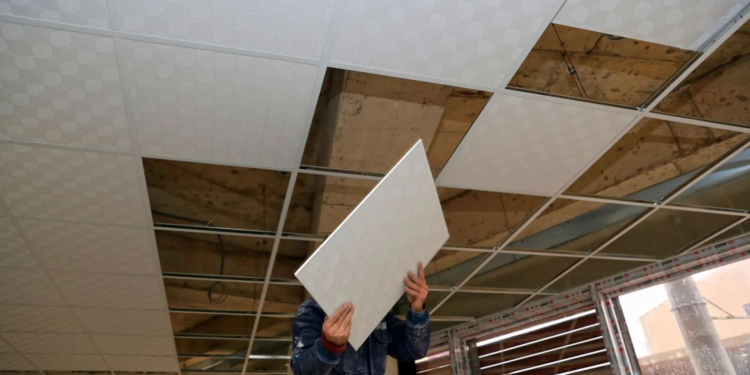

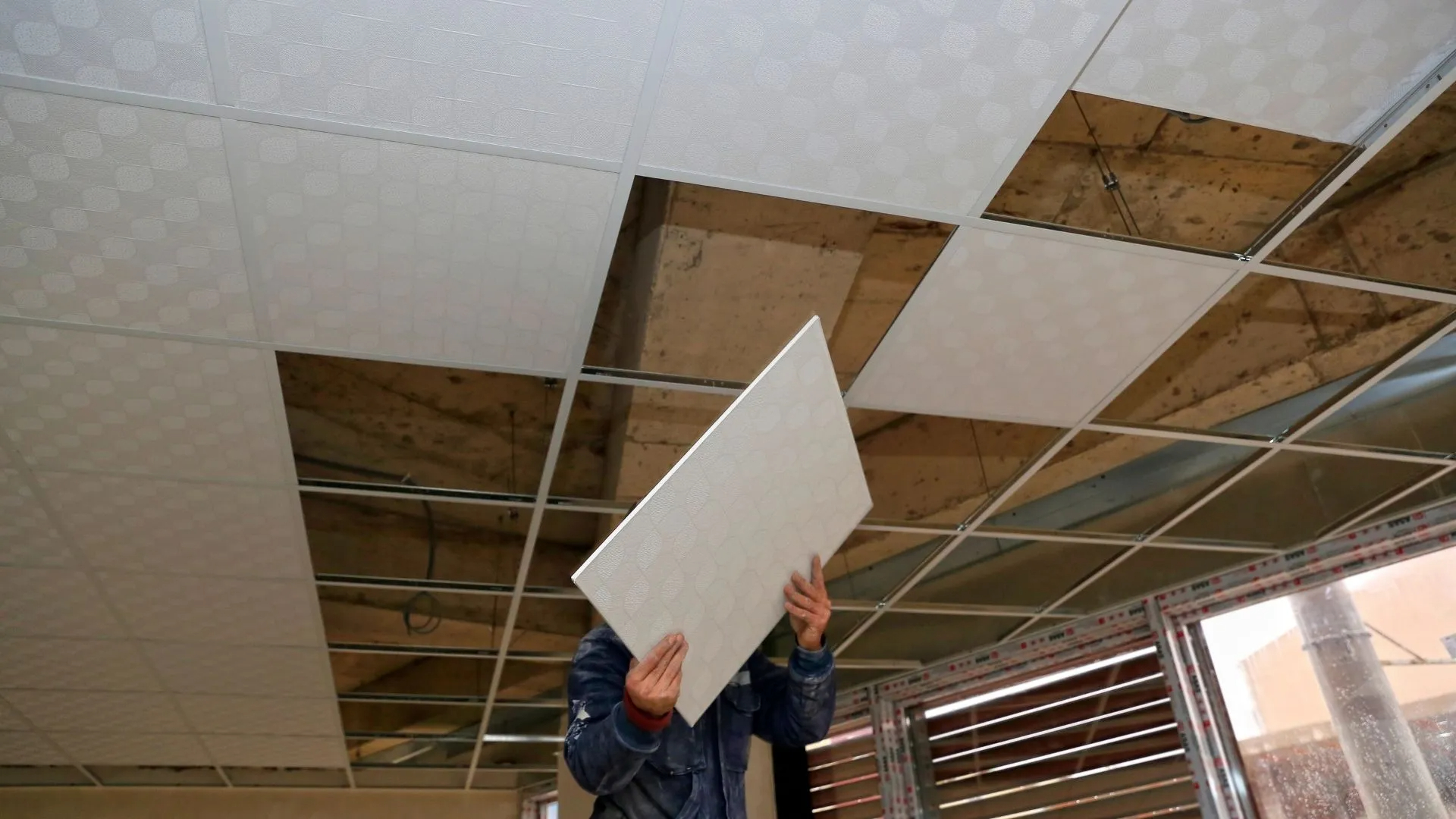

What is a Suspended Ceiling

You walk into a room and glance up at the ceiling. It’s not just a solid surface, but instead, a grid of panels suspended a short distance below the structural ceiling. What is this mysterious ceiling made of movable tiles anyway? In this article, we will uncover everything about suspended ceilings, what they are, why they exist, and how they are installed. We’ll explore the anatomy of a typical drop ceiling, the materials used, and the pros and cons. So get ready to learn all about these ubiquitous ceilings found in offices and institutions everywhere!

What Is a Suspended Ceiling?

Suspended ceilings (also known as dropped ceilings, drop ceilings, or false ceilings) are secondary ceilings that are suspended from a structural floor slab above, leaving a space between the underside of the floor slab and the top of the suspended ceiling. Suspended ceilings are common in commercial premises because they give valuable space for building utilities that would otherwise be visible from the interior. A suspended ceiling space can be used to distribute heating, ventilation, and air conditioning (HVAC) services, as well as to install speakers, light fittings, CCTV, fire and smoke detectors, motion detectors, sprinklers, and other items.

Suspended ceilings offer easy access to the plenum space above for maintenance and running utility services. They provide thermal insulation, improve acoustics, and conceal unsightly mechanical components or irregular ceiling structures.

The grid is made from lightweight, roll-formed metal channels suspended by wires from the overhead structure. Lightweight ceiling tiles or panels are simply dropped into the grid openings. Common materials include mineral fiber, fiberglass, metal, and wood. Specialty tiles offer additional features like sound absorption or radiant heating/cooling.

How Does a Suspended Ceiling Work?

A suspended ceiling works by creating a metal grid hung from the structural ceiling above. This grid is made up of main runners and cross tees that interlock to form a lattice pattern. Lightweight tiles or panels are then laid into the openings of the grid system. These come in a variety of materials like mineral fiber, fiberglass, or even decorative options.

One major benefit is that these panels are not permanently installed. This allows easy access to the space above for maintenance of pipes, wires, or HVAC systems housed there.

The suspended grid can be hung at different heights below the actual ceiling. This creates a plenum space that can conceal ductwork or other utilities while maximizing room height.

Are Suspended Ceilings Safe?

Suspended ceilings are incredibly safe when properly installed. The grid system is designed to support considerable weight loads from tiles, light fixtures, and insulation above. With secure anchors to the building structure, these ceilings can even provide protection during earthquakes or other seismic events.

One key safety advantage is easy access to utilities running above. With removable tiles, maintenance and repairs on wiring, pipes, or ductwork can be done without major demolition. This eliminates many hazards from disturbing structural elements.

Many suspended ceiling materials also offer fire-resistant properties. The tiles themselves are non-combustible, while gaps between the drop ceiling and structural floor/roof deck prevent flames from rapidly spreading.

With proper installation following building codes, you can trust these versatile ceiling systems are an exceptionally safe choice for commercial or residential spaces. Their robust yet accessible design promotes a secure environment.

Who Uses Suspended Ceilings?

Suspended ceilings are popular in offices, retail stores, hospitals and other commercial buildings. They offer easy access to utilities above while providing a sleek, uniform look below.

Educational facilities like schools, colleges and libraries frequently use suspended ceiling systems. The acoustic tiles help reduce noise levels for better learning environments.

While less common, some homeowners install suspended ceilings in basements or home theaters. The design flexibility and ability to conceal wiring/pipes make them an appealing option.

What are the Characteristics of a Suspended Ceiling?

These are some of the characteristics of a suspended ceiling:

Access Panels

Suspended ceilings allow easy access to the plenum space above for maintenance or upgrades through removable tiles or panels. This flexibility is a major advantage.

Acoustic Performance

The tiles used in suspended ceilings have sound-absorbing properties that improve acoustics and reduce noise levels. Perfect for offices or commercial spaces.

Fire Resistance

Many suspended ceiling systems use fire-rated materials to meet building codes and safety standards, providing passive fire protection.

Thermal Insulation

The plenum space created by a suspended ceiling can act as an insulating barrier, helping regulate temperatures and reduce energy costs.

Modularity

Suspended ceiling grids consist of standardized components that can be reconfigured or relocated with ease to accommodate layout changes.

Integrated Systems

Lighting fixtures, air diffusers, speakers and more can be seamlessly integrated into the ceiling system for a clean, unified look.

Aesthetic Options

A wide range of tile finishes, patterns and edge details allow you to achieve almost any desired aesthetic for the ceiling plane.

Cost-Effective Installation

Compared to drywall ceilings, suspended systems are relatively quick and economical to install over large open areas.

Types of Suspended Ceilings

These are the types of suspended ceilings:

Hygienic Ceiling Tiles

These tiles are designed with a smooth, non-porous surface that’s easy to clean and maintain. Perfect for healthcare facilities, labs, or commercial kitchens where hygiene is crucial. Their moisture-resistant properties prevent mould and bacteria buildup.

Acoustic Suspended Ceilings

A suspended acoustic ceiling is a secondary ceiling hung below the structural ceiling to treat room acoustics and to look attractive. It is made up of Acoustic Ceiling Tiles (ACT) and a stick-built grid system. It Minimizes noise transfer between floors with sound-absorbing ceiling panels. These specialized tiles have perforated faces that trap sound waves, reducing echoes and reverberations. Ideal for offices, schools, or any space requiring a quieter ambiance.

Fire Rated Suspended Ceilings

Prioritize safety with fire-resistant ceiling systems tested to meet stringent building codes. Made from non-combustible materials like mineral wool or gypsum, they provide critical protection and containment in case of fire emergencies.

Aluminium Suspended Ceilings

For a sleek, modern aesthetic, aluminium tiles offer an upscale look. Durable yet lightweight, they’re low maintenance and can be customized with various finishes like brushed or perforated textures to suit your design vision.

Modular Suspended Ceilings

Enjoy ultimate flexibility with easy-to-install modular tiles that simply drop into a suspended grid system. These ceilings are fixed to a bearing structure, which creates a space between the roof and the ceiling. Reconfigurable layouts allow you to swap out panels for lighting, HVAC, or future renovations without demolition. An adaptable, cost-effective solution.

Lath and Plaster Ceilings

Lath and plaster ceilings use interwoven wood or metal strips (laths) as a base for a smooth plaster coating. The key advantages are their durability, soundproofing, and classic aesthetics. However, they are labor-intensive to install and repair.

Gypsum Wallboard Ceilings

These use large, prefabricated panels made of gypsum rock. They’re lightweight, easy to install, and can have insulation added. The downside is they provide less soundproofing and aren’t as durable as lath and plaster.

Suspended Grid Ceilings

Suspended ceilings have a metal grid framework hanging from the structural ceiling above. Panels or tiles fit into this grid. Key benefits include easy access to the utilities above, acoustic properties, and design versatility.

Span & Free Span

“Span” refers to standard grid ceilings. “Free span” uses fewer supports, spanning larger distances for more open spaces. Free span allows for long, uninterrupted runs but requires additional framing.

Bandraster Ceilings

Bandraster ceilings use bands of metal channels in an exposed grid design. They offer superb accessibility from below. Though industrial-looking, the linear look suits modern decor. Customizable band spacing allows for the integration of lighting, HVAC, and other services.

Exposed Grid Suspended Ceilings

These utilize an aluminum grid system that remains visible after installation. They are easy to install, provide access to the plenum space above, and can incorporate various ceiling tiles.

Concealed Grid Suspended Ceilings

As the name implies, the grid is hidden from view, creating a smooth, monolithic visual. Tiles are installed in a metal suspension system concealed above. This provides a sleek, high-end look.

Jointless Suspended Ceilings

These have no visible seams between panels for an ultra-clean aesthetic. The panels interlock together and are suspended via a concealed grid system. Perfect for spaces requiring a flawless, seamless ceiling plane.

Suspended Drywall Ceilings

Traditional drywall is attached to a metal grid that suspends it below the existing structure. This provides thermal insulation and sound attenuation benefits compared to other ceiling types. Seamless appearance mimics conventional drywall ceilings.

Benefits of Installing a Suspended Ceiling

These are some of the advantages of Suspended Ceilings:

Thermal Insulation

Suspended ceilings provide an extra layer of insulation, helping maintain desired temperatures and reducing energy costs for heating and cooling. This is achieved through the air pocket created between the suspended ceiling and the structural ceiling above.

Acoustic Performance

These ceilings absorb sound waves, significantly improving acoustics within a room. The mineral wool or fiberglass tiles used in suspended ceilings are excellent at dampening noise, providing a more peaceful environment.

Easy Access

With a suspended ceiling system, you gain easy access to the plenum space above for maintenance, repairs or renovations involving electrical, plumbing or HVAC systems. Tiles can be conveniently removed and replaced.

Design Flexibility

Suspended ceilings allow creative designs through different tile shapes, patterns and colors. This versatility makes it simple to refresh a room’s aesthetic appeal whenever desired.

Fire Resistance

Many suspended ceiling tiles are made from non-combustible materials that resist the spread of flames, offering enhanced fire safety.

Moisture Resistance

Certain tile options like vinyl-faced gypsum are highly moisture-resistant, making suspended ceilings suitable for bathrooms, kitchens or other damp areas.

Cost-Effective

Compared to drywall ceilings, suspended ceiling systems are typically more affordable to install and maintain over their lifespan.

Cleaner Air Quality

The tiles trap dust, dander and other airborne particles, preventing them from circulating and contributing to cleaner indoor air.

What are the Disadvantages of Suspended Ceilings?

These are some of the disadvantages of suspended ceilings:

Reduced Ceiling Height

A suspended ceiling adds several inches to the room, decreasing the overall ceiling height. This can make a space feel more cramped and confined.

Access Issues

You’ll need to carefully plan access panels to reach utilities above the suspended ceiling. Without proper planning, accessing wiring or ductwork can be difficult.

Moisture Problems

Suspended ceilings can trap moisture, leading to mold, mildew and material deterioration over time. Proper ventilation is crucial.

Weight Limitations

The lightweight grid can only support so much weight from insulation or attached fixtures before sagging occurs.

Installation Complexity

Suspended ceiling installation requires precise measurements and leveling. Uneven surfaces or obstructions add installation challenges.

Appearance Constraints

While versatile, suspended ceilings have a fairly uniform look that may not suit all design aesthetics or complement architectural details.

Cleaning Difficulties

The crevices and grid patterns of suspended ceilings make them harder to clean thoroughly compared to drywall or plaster ceilings.

How to Install a Suspended Ceiling

To install a suspended ceiling follow these steps:

Plan the Layout

• Measure the room and plan the ceiling grid layout. Determine where the main runners (primary support) and cross tees (secondary support) will go.
• Mark locations for lighting fixtures, HVAC registers, speakers, etc., on the layout.

Install Wall Moldings

• Install wall molding or angle trim around the perimeter. This will provide support for the main runners.
• Use a level to ensure the moldings are perfectly horizontal. Shim if needed.

Suspend the Main Runners

• Cut the main runners to size based on your layout.
• Use wire hangers or rigid bracing to suspend the main runners from the overhead structure.
• Space the runners according to manufacturer specs, typically 4 ft apart.

Install the Cross Tees

• Cut and install the cross tees perpendicular to the main runners.
• Space them according to your planned grid layout, usually 2 ft apart.
• Ensure a tight fit between components using a flat bar to flatten sections.

Complete the Grid

• Add cross tees and moldings at borders, cut to fit tightly.
• Make adjustments to ensure the grid is perfectly square and level.

How do you Soundproof A Suspended Ceiling?

This is how you can Soundproof a suspended ceiling:

Add Mass to the Ceiling

The most effective way to soundproof a suspended ceiling is by adding mass. You can do this by installing mass-loaded vinyl sheets or rigid fiberglass panels above the existing ceiling tiles. This added mass helps block airborne noise from passing through.

Seal Gaps and Openings

Sound can easily travel through any gaps or openings in the suspended ceiling plenum space. Seal these areas with acoustic caulk or putty pads to prevent noise flanking paths.

Use Sound Absorbing Materials

In addition to blocking noise, you’ll want to absorb residual sounds within the plenum space. Install fiberglass or mineral wool insulation batts between joists above the tiles. You can also use specialty acoustic ceiling tiles that absorb ambient sounds.

About Suspended Ceiling Tiles

Suspended ceiling tiles are those lightweight panels you see in many commercial buildings and offices. They’re designed to be easily removable, hanging from a metal grid suspended below the structural ceiling.

These tiles offer several benefits. They help hide pipes, wires and ductwork while allowing easy access for maintenance or renovations. Their acoustic properties also absorb sound, reducing noise levels.

Tiles come in a variety of materials like mineral fiber, fiberglass, metal or wood. Mineral fiber is a popular choice for its sound absorption and fire resistance. Different materials suit different budgets and design goals.

Drop Ceiling Lighting Options

These are some common drop ceiling lighting options:

Recessed Lighting

Recessed lights, also called pot or can lights, are installed directly into the drop ceiling tiles for a sleek, modern look. They provide ambient lighting and can be placed throughout the room or used as accent lighting.

Track Lighting

Track lighting systems attach directly to the ceiling grid, allowing you to position individual light heads wherever needed. This flexible lighting is ideal for task areas like kitchen counters.

Pendant Lights

Suspended from the drop ceiling on rods or cords, pendant lights make a stylish statement while providing task or ambient lighting. Group several pendant lights together for visual interest.

Lensed Troffers

Troffers are self-contained light fixtures that fit securely into the ceiling grid. Lensed troffers have a protective plastic cover and offer bright, even illumination for offices or other workspaces.

Decorative Fixtures

Get creative with a decorative light fixture like a chandelier or statement pendant that hangs below the drop ceiling plane. It adds flair and dimension to the space.

LED Panels

LED flat panel lights simply drop into the ceiling grid in place of tiles, providing energy-efficient ambient lighting. Their slim profile maintains an unobtrusive look.

Downlights

Downlights have a trim that fits flush with the ceiling plane, making them a discreet way to bring warm, focused light into a room from above the drop ceiling.

Frequently Asked Questions About Suspended Ceilings

These are some frequently asked questions and answers about suspended ceilings.

What is another name for a suspended ceiling?

A suspended ceiling is also known as a drop ceiling or false ceiling; a suspended ceiling hangs below the structural floor or roof above. It creates a versatile, concealed space to hide pipes, wires and ductwork.

What is the purpose of a suspended ceiling?

Suspended ceilings provide easy access for maintenance while enhancing acoustics and energy efficiency. They can also be decorative elements.

Where can I use a suspended ceiling?

Suspended ceilings are common in offices, schools, hospitals and commercial buildings. But they can work for certain rooms in homes, too.

How much does it cost to install a suspended ceiling in Nigeria?

Costs vary based on materials, ceiling height and labor. But expect to pay around ₦3,000 – ₦10,000 per square meter for a basic suspended ceiling installation in Nigeria.

What is the primary problem with suspended ceilings?

The main issue is the space they take up, lowering ceiling heights. Some also dislike their office-like appearance in homes.

What does a suspended ceiling look like?

A suspended ceiling, also known as a drop ceiling, hangs below the structural ceiling. It consists of a metal grid suspended by wires, with lightweight tiles or panels resting on the grid. This creates a space or plenum between the ceilings for running utilities.

How deep is a suspended ceiling?

The depth or height between the suspended and structural ceiling typically ranges from 3 to 8 inches. A deeper plenum allows more space for ductwork, cables, and pipes.

Is a suspended ceiling expensive?

Compared to drywall or plaster ceilings, suspended ceilings are relatively affordable to install. The materials are lightweight and easy to access the plenum space above.

Why are ceilings suspended in buildings?

Suspended ceilings conceal utilities, improve acoustics, allow easy access for maintenance, and enhance energy efficiency by utilizing the plenum space. They’re commonly used in commercial buildings.

What material is used for suspended ceilings?

Popular materials include mineral fiber tiles, gypsum, fiberglass, and tin or aluminum panels. The grid is usually made from lightweight, pre-engineered aluminum or steel components.

What’s the minimum gap for a suspended ceiling?

Most building codes require a gap of at least 3 inches between the suspended ceiling and the structural ceiling above. This space allows room for electrical, plumbing, and HVAC components.

How do you secure a suspended ceiling?

Suspended ceilings are hung from the structural ceiling using a grid system of metal tracks secured by wires or rods. The ceiling tiles or panels then rest in the grid.

What are the advantages of a suspended ceiling compared to those of a tightly attached ceiling?

A key advantage is easy access above the suspended ceiling for maintenance or renovations. They’re also more affordable to install than drywall, provide noise reduction, and can conceal pipes or wires.

What is the difference between ceiling-mounted and suspended ceilings?

Ceiling-mounted fixtures attach directly to the structural ceiling, while suspended ceilings hang below on a grid system, allowing space above for utilities. Suspended ceilings create a “drop” ceiling effect.

How long do suspended ceilings last?

With proper installation and maintenance, a quality suspended ceiling system can last 20-30 years or more. The lightweight panels and metal grid are designed for easy access and replacement when needed.

What are the five types of grids used on suspended ceilings?

The five main suspended ceiling grid types are exposed, concealed, semi-concealed, plank system and sub-grid system. Each offers different looks, features and access options above the ceiling plane.

What is the space above a suspended ceiling called?

The space above a dropped or suspended ceiling is called the plenum. It houses building utilities like HVAC equipment, electrical wiring, data cables and sprinkler systems for easy access and maintenance.

Conclusion

So there you have it, the lowdown on suspended ceilings. From their materials to installation, you now know what these popular ceilings are all about. Whether you’re looking to install one yourself or just understand what’s above your head, hopefully, this sheds some light. Suspended ceilings keep evolving with new styles and purposes, but the basic premise remains the same. They allow for a customizable ceiling that can hide infrastructure, wires, and ductwork with ease. And they come in all different looks to match your style.
