Types of Gears: Designs, Materials, and Application

As you delve into the world of mechanical engineering, you’ll quickly discover the critical role gears play in countless machines and devices. These ingenious components transfer motion and power, enabling everything from tiny watches to massive industrial equipment to function. Understanding the various types of gears, their unique designs, material considerations, and specific applications is essential for any engineer or designer.

In this comprehensive guide, we’ll explore the fascinating realm of gears, gaining valuable insights into their diverse forms and functions. Whether you’re a seasoned professional or a curious novice, this article will equip you with the knowledge to navigate the intricate landscape of gear technology.

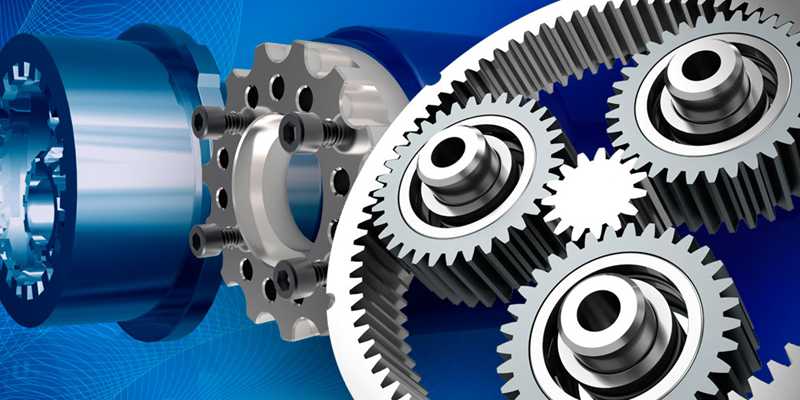

What is a Gear?

A gear is a rotating machine part with cut teeth or cogs that mesh with another toothed part to transmit torque and motion. You’ll find gears in various mechanical systems, from simple hand-operated devices to complex industrial machinery. The primary function of gears is to transfer rotational motion between shafts while modifying speed, torque, or direction.

Working Principles

Gears operate on the principle of mechanical advantage. When two gears mesh, the smaller gear (pinion) rotates faster than the larger gear (wheel) but with less torque. This relationship allows for speed reduction or increase, depending on which gear the driver is in. The gear ratio, determined by the number of teeth on each gear, dictates the change in rotational speed and torque between the input and output shafts.

Technical Properties of Gears

These are the different Parameters of Gears:

Pitch

The pitch of a gear refers to the distance between adjacent teeth measured along the pitch circle. It determines the gear’s size and affects its load-carrying capacity and smoothness of operation.

Pressure Angle

Pressure angle is the angle between the line of action and a line perpendicular to the line connecting the centers of two meshing gears. It influences the gear’s strength, noise level, and efficiency.

Module

The module is the ratio of the pitch diameter to the number of teeth. It’s a crucial parameter in gear design, affecting the gear’s size and strength.

Face Width

Face width is the length of the gear tooth measured parallel to the axis of rotation. It impacts the gear’s load-carrying capacity and durability.

Addendum and Dedendum

Addendum is the radial distance from the pitch circle to the top of the tooth, while dedendum is the distance from the pitch circle to the root. These properties affect gear meshing and strength.

Backlash

Backlash is the amount of clearance between mating gear teeth. It’s necessary for proper lubrication and thermal expansion but can affect precision in some applications.

Involute Profile

The involute profile is the curved shape of the gear tooth. It ensures a smooth, constant velocity ratio during gear meshing, reducing wear and noise.

Number of Teeth

The number of teeth on a gear affects its size, speed ratio, and efficiency. More teeth generally result in smoother operation but may increase manufacturing complexity.

Classification Of Gears

Gears are essential mechanical components used to transmit power and motion in various machines. They come in different shapes and configurations, each designed for specific applications. Understanding the classification of gears is crucial for engineers and designers to select the most appropriate type for their projects.

Classification Based on Tooth Shape

• Involute
• Cycloid
• Trochoid

Classification Based on Axes Configuration

1. Parallel Axis Gears: Include spur and helical gears, which are used when shafts are parallel.
2. Intersecting Axis Gears: Bevel gears fall into this category and are suitable for perpendicular shaft arrangements.
3. Non-Parallel, Non-Intersecting Axis Gears: Worm gears belong here and are ideal for high reduction ratios.

Types of Gears and Their Uses

You’ll encounter different types of gears, each designed for specific applications and performance requirements. Understanding these gear types and their uses is crucial for engineers, mechanics, and anyone involved in machinery design or maintenance.

Spur Gears

Spur gears are the most common type of gear, characterized by straight teeth aligned parallel to the axis of rotation. These cylindrical gears transmit rotational motion between parallel shafts, making them essential components in various mechanical systems.

Spur gears are distinguished by their simplicity and efficiency. They typically have a high power transmission rate and can handle significant loads. Their straight teeth engage radially, allowing for smooth and quiet operation when properly designed and maintained. Spur gears function by meshing teeth to transfer torque and change the speed or direction of a power source.

Applications and Uses of Spur Gear

You’ll encounter spur gears in a wide range of applications. They’re commonly used in:

• Automotive transmissions
• Industrial machinery
• Clocks and watches
• Home appliances
• Toys and small electronic devices

Their versatility and cost-effectiveness make spur gears a popular choice for engineers and designers across various industries.

Helical Gears

Helical gears are cylindrical gears with teeth cut at an angle to the axis, resembling a helix. These angled teeth provide several advantages over straight-cut spur gears. You’ll find helical gears characterized by their smooth and quiet operation, making them ideal for high-speed applications.

Helical gears feature a gradual engagement of teeth, resulting in reduced noise and vibration. Their angled teeth distribute the load over a larger surface area, increasing load-carrying capacity and efficiency. However, these gears generate axial thrust, requiring appropriate thrust bearings.

Functions and Applications of Helical Gear

You’ll commonly encounter helical gears in automotive transmissions, where they facilitate smooth power transfer. They’re also prevalent in industrial machinery, conveyor systems, and marine propulsion. Their ability to handle high speeds and loads makes them suitable for a wide range of applications requiring reliable, efficient power transmission.

Types of Helical Gear

Single Helical Gears

Single helical gears feature teeth cut at an angle to the axis of rotation. This design allows for smoother and quieter operation compared to spur gears. You’ll find these gears in various applications, including automotive transmissions and industrial machinery. Their angled teeth provide better load distribution and reduced wear, making them ideal for high-speed operations.

Double Helical Gears

Double helical gears, also known as herringbone gears, consist of two single helical gears with opposite tooth angles. This configuration eliminates axial thrust, providing enhanced stability and load-bearing capacity. You can use these gears in heavy-duty applications such as marine propulsion systems and large industrial equipment.

Screw Gears

Screw gears, a variation of helical gears, are designed for non-parallel, non-intersecting shafts. You’ll typically use these gears for power transmission between perpendicular shafts. Their unique design allows for high reduction ratios in a compact space, making them suitable for specialized applications in robotics and precision machinery.

Bevel Gears

Bevel gears are mechanical components that transmit rotational motion between intersecting shafts, typically at a 90-degree angle. These conical-shaped gears feature teeth cut on a sloping surface, allowing for efficient power transmission across non-parallel axes. You’ll find bevel gears in various configurations, including straight, spiral, and hypoid designs.

Bevel gears are characterized by their ability to change the direction of rotation and alter rotational speed. Their unique tooth geometry enables smooth engagement and reduced noise during operation. You’ll appreciate their versatility in transmitting power across a range of angles, from 30 to 180 degrees. These gears excel in applications requiring high torque transmission and precise positioning.

Uses and Applications of Bevel Gears

You’ll encounter bevel gears and devices in numerous industries. They’re commonly used in automotive differentials, allowing wheels to rotate at different speeds during turns. In industrial machinery, you’ll find them in conveyor systems and printing presses. Bevel gears also play crucial roles in marine propulsion systems, helicopters, and agricultural equipment, showcasing their adaptability across diverse mechanical applications.

Types of Bevel Gear

Straight Bevel Gears

Straight bevel gears feature teeth that are straight and radiate from the apex of the cone. You’ll find these gears in applications requiring moderate speeds and loads. They offer simplicity in design and manufacturing but can be noisy at high speeds.

Spiral Bevel Gears

Spiral bevel gears have curved teeth that engage more gradually, resulting in smoother operation and reduced noise. You can use these in high-speed, high-power applications. They offer increased load capacity and longer lifespan compared to straight bevel gears.

Miter Gears

Miter gears are a special type of bevel gear where both gears have the same number of teeth and operate at a 90-degree angle. You’ll often see these in right-angle drives where equal speed reduction is not required.

Hypoid Gears

Hypoid gears are similar to spiral bevel gears but with offset axes. You’ll find these commonly in automotive differentials. They offer high strength and smooth operation and allow for a lower driveshaft.

Helical Bevel Gears

Helical bevel gears combine the angled teeth of helical gears with the conical shape of bevel gears. You can use these for smoother, quieter operations in high-load applications requiring precision and efficiency.

Angular Bevel Gears

Angular bevel gears are the most common type of bevel gear. You’ll find them in applications where shafts intersect at angles other than 90 degrees. These gears feature straight, spiral, or hypoid tooth patterns and are known for their efficiency in power transmission. They’re widely used in automotive differentials, power tools, and industrial machinery.

Crown Gears

Crown gears, also called face gears, have teeth cut into the face of a flat wheel. You can pair them with spur gears or pinions to transmit motion between perpendicular shafts. Their simple design makes them cost-effective for low-speed, low-power applications. You’ll often see crown gears in clocks, toys, and some agricultural equipment.

Zerol Bevel Gears

Zerol bevel gears are a unique type with curved teeth but zero spiral angle. You’ll benefit from their smoother operation and reduced noise compared to straight bevel gears. These gears offer improved load distribution and are particularly useful in applications requiring precise motion transfer, such as machine tools and robotics.

Worm Gears

Worm gears are a type of mechanical gear system consisting of a worm (a screw-like gear) and a worm wheel (a spur gear). The worm’s helical thread meshes with the teeth of the worm wheel, creating a unique perpendicular gear arrangement. This configuration allows for high reduction ratios and smooth power transmission.

Worm gears are known for their compact design and ability to handle high loads. They offer excellent speed reduction capabilities, typically ranging from 20:1 to 300:1 in a single stage. These gears provide non-reversible motion, meaning the worm can drive the wheel, but the wheel cannot drive the worm. This feature makes them ideal for applications requiring self-locking mechanisms.

Uses and Applications of Worm Gears

You’ll find worm gears in various industrial and automotive applications. They’re commonly used in elevators, conveyor systems, and heavy machinery where precise speed control and high torque are essential. In automotive engineering, worm gears are utilized in steering systems and differentials. Their self-locking nature makes them valuable in safety-critical applications, such as hoists and lifts.

Rack and Pinion Gears

Rack and pinion gears are a type of linear actuator that converts rotational motion into linear motion. This system consists of two main components: a circular gear (pinion) and a flat-toothed bar (rack). As the pinion rotates, it engages with the rack’s teeth, causing the rack to move in a straight line.

Rack and pinion gears are known for their:

• Precision: They offer accurate positioning and smooth movement.
• Simplicity: The design is straightforward, making it easy to manufacture and maintain.
• Efficiency: They provide a high mechanical advantage with minimal friction loss.

Applications of Rack and Pinion Gears

You’ll find rack and pinion gears in various applications, including:

• Steering systems in vehicles
• Machine tools and manufacturing equipment
• Robotics and automation systems
• Elevators and lifts

These versatile gears excel in situations requiring controlled linear motion from rotary input.

Internal Gears

Internal gears, also known as ring gears, are a unique type of gear characterized by teeth located on the inner circumference of a circular body. You’ll find these gears in various mechanical systems, where they play a crucial role in power transmission and motion control.

Internal gears feature several distinct characteristics:

• Compact design, allowing for space-efficient applications
• High gear ratios in a single-stage
• Improved load distribution and reduced noise

These gears function by meshing with external gears or pinions, creating a smooth, efficient power transfer. Their design allows for better torque capacity and reduced wear compared to external gear pairs.

Applications and Uses of Internal Gears

You’ll encounter internal gears in numerous applications, including:

• Planetary gear systems in automotive transmissions
• Industrial machinery and robotics
• Precision instruments and watches

Their ability to provide high reduction ratios in a compact package makes them invaluable in many engineering solutions where space is at a premium.

Types of Gear Trains

Gear trains are systems of interconnected gears that transmit power and motion between rotating shafts. They are essential components in various mechanical devices, enabling speed and torque modifications. There are four primary types of gear trains, each with distinct characteristics and applications.

Simple Gear Train

A simple gear train consists of two or more gears meshed directly with each other. It’s used to change the speed or direction of rotation between input and output shafts. The gear ratio determines the speed and torque relationship between the shafts.

Compound Gear Train

Compound gear trains involve multiple gear pairs, with some gears mounted on the same shaft. This configuration allows for greater speed reduction or increase compared to simple gear trains, making them ideal for applications requiring significant torque multiplication.

Reverted Gear Train

In a reverted gear train, the first and last gears rotate in the same direction. This setup is commonly used in clock mechanisms and machine tools where maintaining the original rotation direction is crucial.

Epicyclic Gear Train

Epicyclic or planetary gear trains feature a central “sun” gear surrounded by orbiting “planet” gears within an outer “ring” gear. This compact design offers high gear ratios and efficiency, making it popular in automotive transmissions and industrial machinery.

Materials Used for Gear Manufacturing

Gear manufacturing relies on a variety of materials to meet diverse performance requirements. Here are some commonly used materials:

Metals

1. Steel: Steel is widely used for its strength and durability. Carbon steel is cost-effective, while alloy steel offers enhanced properties.
2. Cast Iron: Provides excellent wear resistance and vibration damping. Gray cast iron is popular for its machinability.
3. Aluminum: Lightweight and corrosion-resistant, ideal for applications requiring reduced weight.
4. Brass: Brass offers good machinability and corrosion resistance and is suitable for non-ferrous gears.

Non-Metals

1. Nylon: Provides self-lubrication and noise reduction, commonly used in low-load applications.
2. Acetal: Offers high strength and stiffness and is resistant to chemicals and moisture.
3. PEEK: High-performance thermoplastic with excellent mechanical properties and chemical resistance.
4. Carbon Fiber Composites: Combine lightweight properties with high strength, used in advanced applications.

Your choice of material depends on factors such as load capacity, operating environment, and cost considerations.

Advantages of Gears

Gears offer numerous benefits across various applications. Here are some key advantages:

Mechanical Advantage

Gears provide a significant mechanical advantage, allowing you to multiply force or speed. This enables the efficient transfer of power in machinery.

Precision Control

You can achieve precise control over motion and speed through gear ratios. This is crucial in applications requiring exact movements, such as robotics or manufacturing equipment.

Compact Design

Gears allow for compact power transmission systems. You can design smaller machines without sacrificing performance, ideal for space-constrained environments.

Durability

Well-designed gears are highly durable, withstanding heavy loads and prolonged use. This results in longer-lasting machinery and reduced maintenance needs.

Versatility

Gears come in various types and sizes, offering versatility in design. You can adapt gear systems to suit specific requirements across industries.

Energy Efficiency

Properly engineered gear systems minimize energy loss during power transmission. This leads to improved overall efficiency in mechanical systems.

Noise Reduction

Modern gear designs incorporate noise-reducing features. You can create quieter machinery, enhancing workplace comfort and reducing environmental impact.

Cost-Effectiveness

Despite initial investment, gears provide long-term cost savings through efficiency, durability, and reduced maintenance needs.

Disadvantages of Gears

While gears are essential components in many mechanical systems, they also come with certain drawbacks. Here are five significant disadvantages of gears:

Noise and Vibration

Gears can produce considerable noise and vibration during operation. This is due to the constant meshing of gear teeth, which can create a humming or whining sound. In precision applications or quiet environments, this noise can be disruptive and may require additional soundproofing measures.

Maintenance Requirements

You’ll find that gears require regular maintenance to function optimally. This includes periodic lubrication, alignment checks, and replacement of worn parts. Failure to maintain gears properly can lead to increased wear, reduced efficiency, and potential system failures.

Heat Generation

During operation, gears generate heat due to friction between meshing teeth. This heat can lead to thermal expansion, potentially affecting gear alignment and efficiency. In extreme cases, excessive heat may cause gear damage or failure, necessitating cooling systems in high-load applications.

Cost Considerations

Precision gears can be expensive to manufacture, especially for custom or high-performance applications. The initial cost of gear systems, coupled with ongoing maintenance expenses, can make them a significant investment for your projects or industrial applications.

Weight and Space Requirements

Gear systems often add considerable weight to machinery and require specific space allocations. This can be a disadvantage in applications where weight reduction or compact design is crucial, such as in aerospace or portable equipment.

Frequently Asked Questions

Frequently asked questions and answers about the different types of Gears.

What are the main types of gears?

The main types of gears include spur gears, helical gears, bevel gears, worm gears, and planetary gears. Each type has unique characteristics and applications in various industries.

How do I choose the right gear for my application?

Selecting the appropriate gear depends on factors such as load requirements, speed, efficiency, and operating environment. Consider consulting with a gear specialist or engineer to determine the best option for your specific needs.

What materials are commonly used for gear manufacturing?

Common gear materials include steel, brass, bronze, and various plastics. The choice of material depends on the gear’s intended use, required strength, and operating conditions.

How can I extend the lifespan of my gears?

To maximize gear longevity, ensure proper lubrication, maintain correct alignment, avoid overloading, and perform regular inspections. Implementing a preventive maintenance schedule can significantly extend gear life and improve overall system performance.

Are there eco-friendly options for gears?

Yes, manufacturers are developing more sustainable gear options, including those made from recycled materials or biodegradable plastics. Additionally, improving gear efficiency can reduce energy consumption, contributing to a more eco-friendly operation.

Conclusion

As you’ve seen, gears come in a wide variety of types, each with unique designs, materials, and applications. From the simple spur gear to the complex planetary gear system, these mechanical marvels play a crucial role in countless machines and devices. By understanding the strengths and limitations of different gear types, you can make informed decisions when selecting the right gear for your specific needs. Whether you’re an engineer, designer, or simply curious about mechanical systems, a solid grasp of gear fundamentals will serve you well. As technology advances, gears will continue to evolve, driving innovation across industries and shaping the future of mechanical engineering.
