Concave Lens: Definition, Image Formation, Types, Formula, and Uses

Have you ever wondered how your eyeglasses correct your vision or how a telescope brings distant objects into focus? The answer lies in the fascinating world of optics, specifically in the realm of concave lenses. These remarkable optical devices, with their distinctive inward-curving surfaces, play a crucial role in various fields, from vision correction to advanced scientific instruments.

In this article, we’ll explore the definition, image formation process, types, formulas, and diverse applications of concave lenses. By understanding these fundamental concepts, you’ll gain valuable insights into the principles that shape our visual experiences and technological advancements.

What is a Lens?

A lens is a transparent optical device that refracts light to form an image. You’ll find lenses in various optical instruments, from eyeglasses to cameras and microscopes. They’re typically made of glass or plastic and are characterized by their curved surfaces, which bend light rays as they pass through.

Types of Lenses

There are two main categories of lenses:

• Convex lenses: These are thicker in the middle and thinner at the edges, causing light rays to converge.
• Concave lenses: These are thinner in the middle and thicker at the edges, causing light rays to diverge.

How Lenses Work

When light enters a lens, it bends due to the difference in refractive index between the lens material and the surrounding medium. This bending of light allows lenses to focus or disperse light rays, creating magnified, reduced, or inverted images depending on the lens type and object distance.

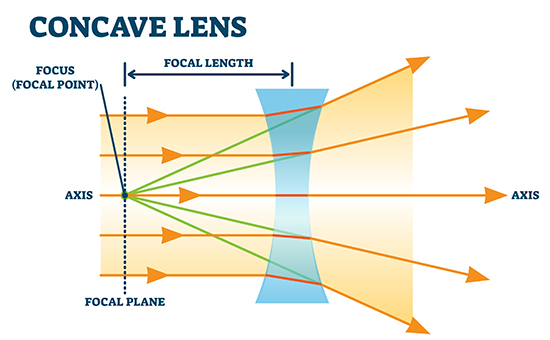

What is a Concave Lens?

A concave lens, also known as a diverging lens, is an optical device with at least one inwardly curved surface. When you look at this lens from the side, you’ll notice it’s thinner in the middle and thicker at the edges. This unique shape causes light rays passing through it to diverge or spread outward.

Concave lenses have a negative focal length, meaning they form virtual images that appear smaller and closer than the actual object. When you hold a concave lens in front of a text, you’ll notice the words appear reduced in size.

Understanding these characteristics is crucial for applications in corrective eyewear, telescopes, and various optical instruments.

How to Identify a Concave Lens

To identify a concave lens, you can employ several methods that highlight its distinct characteristics. These optical elements, also known as diverging lenses, have unique properties that set them apart from other types of lenses.

Visual Inspection

Examine the lens carefully. A concave lens is thinner at its center and thicker at the edges. This distinctive shape causes light rays to diverge as they pass through the lens.

Touch Test

Gently run your finger across the lens surface. You’ll notice that the center feels slightly depressed compared to the edges, creating a bowl-like shape.

Text Magnification

Place the lens over printed text. If the words appear smaller when viewed through the lens, you’re likely dealing with a concave lens. This effect occurs because concave lenses produce diminished, upright virtual images.

Shadow Test

Hold the lens between a light source and a flat surface. The shadow cast by a concave lens will be darker at the edges and lighter in the center, reflecting its unique curvature.

Parts of Concave Lens

A concave lens consists of several key components that contribute to its unique optical properties. Understanding these parts is crucial for grasping how the lens functions.

Focal Length

The focal length of a concave lens is the distance between the optical center and the focal point. It’s always negative, indicating that the lens diverges light rays. This characteristic is essential for understanding image formation and magnification.

Optical Center

Located at the geometric center of the lens, the optical center is where light passes through without deviation. It’s a crucial reference point for calculating lens properties and image formation.

Focus

The focus, or focal point, of a concave lens, is an imaginary point where light rays appear to originate after passing through the lens. It’s always on the same side as the incident light.

Center of Curvature

This point represents the center of the sphere from which the lens surface is carved. It’s important for determining the lens’s curvature and its effect on light rays.

Principal Axis

The principal axis is an imaginary line passing through the optical center, perpendicular to the lens surface. It’s essential for analyzing light ray paths and image formation.

Properties of Concave Lens

These are some of the properties of a Concave lens:

Diverging Light Rays

Concave lenses diverge parallel light rays, causing them to spread out after passing through the lens. This property is fundamental to their function in various optical systems.

Thinner at Center

You’ll notice that concave lenses are thinner at the center and thicker at the edges. This unique shape contributes to their light-bending properties.

Virtual Image Formation

When you look through a concave lens, it always forms a virtual, upright, and diminished image of objects. This characteristic makes them useful in certain optical applications.

Negative Focal Length

Concave lenses have a negative focal length, meaning the focal point lies on the same side of the lens as the incident light. This property distinguishes them from convex lenses.

Correction of Myopia

These lenses are commonly used to correct myopia (nearsightedness) in eyeglasses. They help focus light properly on the retina for clearer vision.

Example of Concave Lens

These are some of the examples of Concave lens:

Eyeglasses for Myopia

Concave lenses are commonly used in eyeglasses to correct myopia (nearsightedness). These lenses diverge light rays, helping to focus images properly on the retina.

Camera Lenses

In photography, concave lenses are often incorporated into complex lens systems to adjust the focal length and field of view.

Telescopes

Astronomical telescopes use concave lenses as eyepieces to magnify the image formed by the objective lens.

Flashlights

Many flashlights utilize concave lenses to spread light over a wider area, creating a broader beam.

Peepholes

Door peepholes often employ concave lenses to provide a wider field of view, allowing you to see more of the area outside your door.

Laser Beam Expanders

In scientific and industrial applications, concave lenses are used to expand laser beams for various purposes, such as material processing or optical testing.

Vehicle Side Mirrors

Many vehicles use convex mirrors with a concave lens coating to provide a wider field of view, helping you see objects in your blind spots more easily.

Image Formation in a Concave Lens

When you look through a concave lens, you’ll notice that objects appear smaller and farther away. This optical illusion occurs due to the unique image formation process in concave lenses. As light rays pass through the lens, they diverge, creating a virtual image that’s always upright and diminished in size.

Ray Diagram Analysis

To understand image formation, you can use a ray diagram. Three key rays are considered:

1. A ray parallel to the principal axis
2. A ray passing through the optical center
3. A ray directed toward the focus

These rays diverge after refraction, never intersecting on the same side as the object. Instead, their backward extensions meet to form a virtual image.

Characteristics of the Image

The image formed by a concave lens is always:

• Virtual
• Erect (upright)
• Diminished (smaller than the object)
• Located between the optical center and the focus on the same side as the object

Understanding this process is crucial for applications in corrective eyewear, particularly for myopia (nearsightedness).

Types of Concave Lenses

These are the main types of Concave lenses:

Bi-Concave Lenses

Bi-concave lenses, also known as double concave lenses, feature two inwardly curved surfaces. These lenses are thinner at the center and thicker at the edges, causing light rays to diverge as they pass through. Bi-concave lenses are commonly used in corrective eyewear for nearsightedness and in various optical instruments.

Plano-Concave Lenses

Plano-concave lenses have one flat surface and one inwardly curved surface. These lenses are characterized by their ability to diverge light rays while maintaining a flat side. They’re often utilized in laser beam expanders, microscopes, and other precision optical systems where a combination of divergence and flatness is required.

Convexo-Concave Lenses

Convexo-concave lenses, also called negative meniscus lenses, have one outwardly curved surface and one inwardly curved surface. The concave surface has a greater curvature than the convex surface, resulting in an overall diverging effect. These lenses are frequently employed in eyeglasses, cameras, and telescopes to correct various optical aberrations.

Sign Convention of Concave Lens

Understanding the sign convention of a concave lens is crucial for accurately describing image formation. This system assigns positive or negative values to various lens parameters, enabling precise calculations and predictions.

Key Parameters and Their Signs

• Focal Length (f): Always negative for concave lenses, as the focal point lies on the same side as the incident light.
• Object Distance (u): Positive when the object is on the left side of the lens (real object).
• Image Distance (v): Negative when the image forms on the left side of the lens (virtual image).
• Height (h): Positive when the image is upright, negative when inverted.

These conventions allow you to consistently analyze lens behavior across different scenarios. By applying them correctly, you can effectively solve problems related to image formation and magnification in concave lenses.

Real-World Applications of Concave Lenses

Concave lenses, with their unique ability to diverge light rays, find numerous practical applications in your everyday life. Here are some real-world uses:

Corrective Eyewear

You’ll find concave lenses in glasses and contact lenses for nearsighted individuals, helping to correct myopia by diverging light before it reaches the eye.

Wide-Angle Photography

In camera lenses, concave elements help create wide-angle shots, allowing you to capture more of a scene in a single frame.

Laser Beam Expanders

Scientists and engineers use concave lenses to widen laser beams for various applications, including material processing and medical treatments.

Automobile Side-View Mirrors

The “Objects in the mirror are closer than they appear” effect you see is due to concave mirrors, which provide a wider field of view for safer driving.

Telescopes

Concave lenses play a crucial role in refracting telescopes, helping you observe distant celestial objects by magnifying and focusing light.

Flashlights

These lenses are used to spread light in flashlights, giving you a wider illumination area for better visibility in the dark.

Peepholes

Door peepholes often incorporate concave lenses to provide you with a wider view of visitors outside your home.

Microscopes

In compound microscopes, concave lenses help you achieve higher magnification and clearer images of microscopic specimens.

Uses of Concave Lenses

Concave lenses, also known as diverging lenses, have numerous uses across various fields. Here are some detailed uses:

Eyewear Correction

Concave lenses are crucial in correcting myopia (nearsightedness). They help focus distant images onto the retina, improving vision for those who struggle to see far-away objects clearly.

Telescopes and Binoculars

In these optical instruments, concave lenses act as eyepieces. They magnify the image formed by the objective lens, allowing you to view distant objects with greater detail and clarity.

Wide-Angle Photography

Concave lenses are essential components in wide-angle camera lenses. They expand the field of view, enabling you to capture broader scenes in a single frame.

Automobile Side-View Mirrors

These mirrors often incorporate concave lenses to provide a wider field of view, reducing blind spots and enhancing driver safety.

Laser Beam Expanders

In laser applications, concave lenses are used to expand laser beams, allowing for more precise control and manipulation of the light.

Advantages of Concave Lenses

These are some of the benefits and advantages of concave lenses:

Correcting Myopia

Concave lenses are essential for correcting nearsightedness (myopia). They diverge light rays, allowing them to focus properly on your retina, improving your distance vision.

Reducing Optical Aberrations

These lenses help minimize spherical aberration in optical systems. By spreading out light rays, they can improve image quality and reduce distortion in various optical devices.

Expanding Field of View

Concave lenses can widen your field of view, making them useful in applications like security cameras and automobile side-view mirrors.

Decreasing Image Size

In certain optical systems, you may need to reduce image size. Concave lenses excel at this, making them valuable in microscopes and telescopes.

Beam Expansion

Laser applications often require expanding beam width. Concave lenses effectively spread out laser beams, which is crucial for various scientific and industrial uses.

Lightweight Design

Compared to convex lenses, concave lenses are typically thinner and lighter, making them ideal for eyewear and portable optical devices.

Cost-Effective Manufacturing

The production process for concave lenses is often simpler and more cost-effective than for complex lens systems, reducing overall costs in many optical applications.

Disadvantages of Concave Lenses

Concave lenses, while useful in many applications, have several inherent drawbacks. Here are a few key disadvantages you should be aware of:

Image Diminishment

Concave lenses always produce smaller, virtual images. This reduction in image size can be problematic in applications where magnification is desired.

Limited Focal Range

These lenses have a negative focal length, which limits their ability to focus light at a specific point. This constraint can be challenging in certain optical systems.

Light Scattering

Concave lenses diverge light rays, potentially leading to light loss and reduced image brightness. This scattering effect can impact the overall quality of the optical system.

Chromatic Aberration

Like all single lenses, concave lenses can suffer from chromatic aberration, where different wavelengths of light are refracted at slightly different angles, leading to color fringing.

Increased Thickness

To achieve certain optical properties, concave lenses often need to be thicker at the edges than at the center, which can add weight and bulk to optical devices.

Manufacturing Complexity

Producing high-quality concave lenses with precise curvatures can be more challenging and expensive compared to convex lenses, potentially increasing costs in optical systems.

Ray Diagram of Concave Lens

A ray diagram for a concave lens illustrates how light rays interact with the lens, helping you visualize image formation. These diagrams are essential for understanding the optical properties of diverging lenses.

Ray Diagram for Object at Infinity

When an object is placed at infinity, parallel rays of light enter the concave lens. The lens diverges these rays, causing them to spread out. After refraction, the rays appear to originate from the focal point on the same side as the object. This results in a virtual, upright, and diminished image formed at the focal point.

Ray Diagram for Object between Infinity and Optical Centre

For objects positioned between infinity and the optical centre, the concave lens still produces a virtual image. However, the image location varies based on object distance. As the object moves closer to the lens, the image shifts towards the optical centre while remaining on the same side as the object. The resulting image is always upright, virtual, and smaller than the original object.

Concave Lens Formula with Solved Examples

The concave lens formula is essential for understanding image formation. It’s expressed as 1/f = 1/v – 1/u, where f is the focal length, v is the image distance, and u is the object distance. This formula helps you determine the position and characteristics of the image formed by a concave lens.

Example 1: Finding Image Distance

You have a concave lens with a focal length of -15 cm. An object is placed 30 cm from the lens. Calculate the image distance.

1/f = 1/v – 1/u 1/-15 = 1/v – 1/30 -1/15 = 1/v – 1/30 1/v = -1/15 + 1/30 = -1/30 v = -10 cm

The negative value indicates the image is formed on the same side as the object, 10 cm from the lens.

Example 2: Determining Focal Length

An object 20 cm from a concave lens produces an image 6.67 cm from the lens. What is the focal length?

1/f = 1/v – 1/u 1/f = 1/-6.67 – 1/20 1/f = -0.15 – 0.05 = -0.2 f = -5 cm

The focal length of the concave lens is -5 cm.

Concave Lens Magnification Formula

The concave lens magnification formula is essential for calculating the size of images formed by diverging lenses. You can express it as:

m = hi / ho = di / do

Where:

• m is the magnification
• hi is the image height
• ho is the object height
• di is the image distance (negative for virtual images)
• do is the object distance

When you apply this formula, you’ll find that the magnification for a concave lens is always positive and less than 1. This indicates that the image formed is always virtual, upright, and smaller than the object. The negative sign for di confirms that the image is on the same side of the lens as the object.

Understanding this formula is crucial in various fields, including optometry, photography, and telescope design. It allows you to predict image characteristics accurately, enabling you to select the appropriate lens for specific applications or to troubleshoot optical systems effectively.

Difference Between the Concave and Convex Lens

These are some of the differences between concave lens and convex lens:

Shape and Curvature

Concave lenses are thinner at the center and thicker at the edges, while convex lenses are thicker at the center and thinner at the edges. This fundamental difference in shape affects how light rays interact with each lens type.

Light Ray Behavior

When light passes through a concave lens, it diverges or spreads out. In contrast, convex lenses cause light rays to converge or come together at a focal point.

Image Formation

Concave lenses always form virtual, upright, and diminished images. Convex lenses, however, can form real or virtual images depending on the object’s position, and these images can be inverted or upright, magnified or diminished.

Focal Point

The focal point of a concave lens is virtual and located on the same side as the incident light. For convex lenses, the focal point is real and on the opposite side of the incident light.

FAQs about Concave Lenses

These are some frequently asked questions and answers about Concave Lens:

What happens if an Object is Placed at the Focal Point of a Concave Lens?

When an object is placed at the focal point of a concave lens, the resulting image appears to be at infinity. This occurs because the light rays emerging from the lens become parallel, creating a virtual image that appears to be very far away.

What is the Nature of the Image Formed by Concave Lens?

Concave lenses always form virtual, erect, and diminished images. These characteristics remain consistent regardless of the object’s distance from the lens. This unique property makes concave lenses ideal for specific optical applications.

What is the Lens formula for a Concave Lens?

The lens formula for a concave lens is 1/f = 1/v – 1/u, where ‘f’ is the focal length, ‘v’ is the image distance, and ‘u’ is the object distance. This equation helps calculate various parameters related to image formation.

Why are Concave Lenses used in Eyeglasses for Myopia?

Concave lenses are used in eyeglasses for myopia (nearsightedness) because they diverge light rays, effectively moving the focal point of the eye to the retina. This correction allows individuals with myopia to see distant objects clearly.

Conclusion

As you’ve discovered, concave lenses play a crucial role in optics and have numerous practical applications. By understanding their definition, image formation process, various types, and key formulas, you’re now equipped to appreciate the science behind these versatile optical devices. From correcting vision problems to enhancing microscopes and telescopes, concave lenses continue to shape our world in subtle yet profound ways. As technology advances, their uses will likely expand even further. Whether you’re a student, professional, or simply curious about the world around you, this knowledge of concave lenses provides valuable insights into the fascinating realm of light manipulation and optical science.
