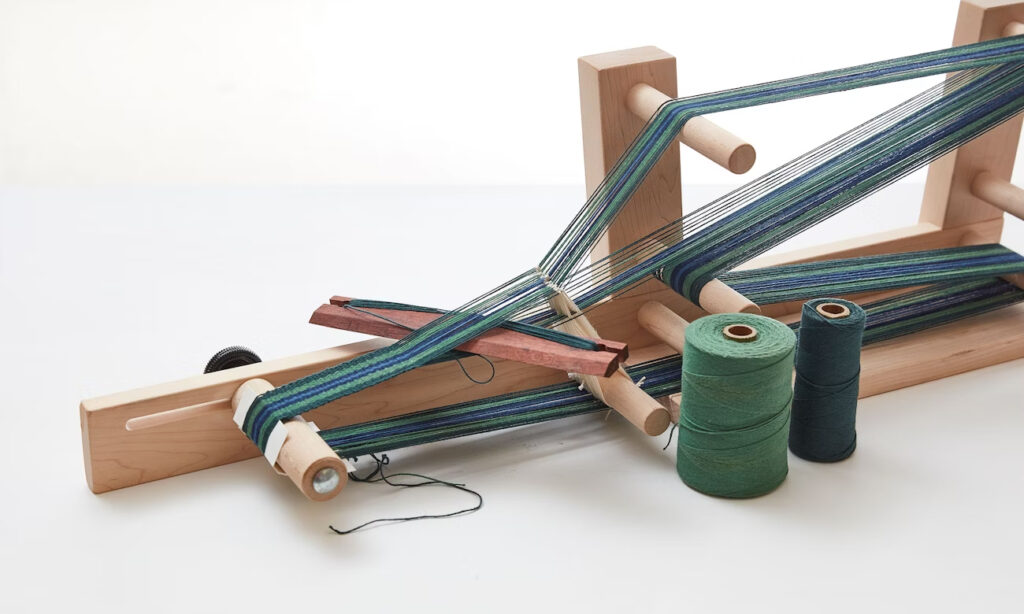

As you explore the intricate world of textile production, understanding the various types of weaving machines is essential. These mechanical marvels have revolutionized the fabric-making process, enabling efficient and precise creation of woven materials. From traditional handlooms to cutting-edge computerized systems, weaving machines come in a diverse array of designs, each suited for specific applications.
In this article, you’ll discover the primary categories of weaving machines, their unique features, and the types of fabrics they produce. Whether you’re a textile industry professional or simply curious about the technology behind your favorite garments, this overview will provide valuable insights into the fascinating realm of weaving machinery.
What is a Weaving Machine?
A weaving machine, also known as a loom, is a sophisticated device used to create fabric by interlacing two sets of yarn or thread at right angles. This essential textile equipment automates the process of weaving, which traditionally was done by hand. You’ll find that modern weaving machines come in various types, each designed for specific fabric production needs.
These machines typically consist of a frame, warp beam, shuttle, and take-up roller. The warp threads are held taut on the warp beam, while the weft threads are inserted horizontally by the shuttle. As the weaving progresses, the finished fabric is wound onto the take-up roller.
Weaving machines can produce a wide range of fabrics, from simple plain weaves to complex jacquard patterns. They’re crucial in the textile industry, enabling mass production of clothing, upholstery, and industrial textiles with consistency and efficiency.
Components of a Weaving Machine
A weaving machine consists of several crucial components that work together to create fabric. The warp beam holds the longitudinal threads while the heddles separate these threads. The shuttle carries the weft thread across the warp, and the reed beats the weft into place. The take-up roller collects the finished fabric.
The shedding mechanism creates a path for the shuttle by raising and lowering heddles. The picking mechanism propels the shuttle through the shed. The beat-up mechanism pushes the weft thread firmly against the fabric edge.
Modern weaving machines often incorporate electronic jacquards for intricate pattern creation and computerized controls for precise operation. These components, working in harmony, enable the efficient production of various textile materials.
Functions of a Weaving Machine
A weaving machine performs several crucial functions in the textile manufacturing process. Its primary purpose is to interlace two sets of yarns – the warp and weft – to create fabric. Here are the key functions:
Shedding
This function separates the warp yarns to form a shed, allowing the weft yarn to pass through.
Picking
The picking mechanism inserts the weft yarn across the width of the fabric.
Beating-up
This process pushes the newly inserted weft yarn against the already woven fabric.
Take-up
The take-up mechanism winds the finished fabric onto a cloth beam.
Let-off
This function releases the warp yarns from the warp beam at a controlled rate.
Selvedge Formation
The machine forms the fabric edges, known as selvedges, to prevent unraveling.
Understanding these functions is crucial for operating and maintaining weaving machines efficiently in textile production.
Different Types of Weaving Machines
When exploring the world of textile production, you’ll encounter various types of weaving machines. Each type is designed to meet specific manufacturing needs and produce different fabric styles. The main categories include shuttle looms, shuttleless looms, and circular looms.
The Handloom
The handloom, a traditional weaving apparatus, represents the epitome of manual textile production. This device consists of a wooden frame supporting a system of threads, known as the warp, stretched lengthwise. Perpendicular to these, you’ll manipulate the weft threads using a shuttle, creating intricate fabric patterns.
Handloom setup typically includes:
- The heddles, which raise and lower warp threads
- The reed, for maintaining thread spacing
- The beater, used to compact weft threads
The loom is operated by coordinating foot pedals with hand movements, alternating warp threads to create sheds through which you’ll pass the weft. This meticulous process allows you to weave complex designs and textures, resulting in unique, handcrafted textiles that often surpass machine-made fabrics in quality and artistry.
Power Loom
Power looms revolutionized the textile industry by automating the weaving process. These machines use mechanical power to operate, significantly increasing production speed and efficiency compared to traditional hand looms. Power looms come in various types, each designed for specific fabrics and weaving patterns.
Power looms consist of several essential parts:
- Warp beam: Holds the lengthwise yarns
- Shuttle: Carries the weft yarn across the warp
- Heddles: Guide the warp threads
- Reed: Separates and aligns the warp threads
When you operate a power loom, it automatically performs the following steps:
- Shedding: Separates warp yarns
- Picking: Inserts weft yarn
- Beating: Pushes weft yarn into place
- Take-up: Winds finished fabric
Modern power looms often incorporate computerized systems for enhanced precision and versatility in fabric production.
Shuttle Loom
Shuttle looms are traditional weaving machines that have been used for centuries. These looms employ a shuttle, a boat-shaped device that carries the weft yarn across the warp threads. As you operate the loom, the shuttle moves back and forth through the shed, the space created between raised and lowered warp threads.
The shuttle loom consists of several essential parts:
- Shed: The opening between warp threads
- Shuttle: Carries the weft yarn
- Reed: Pushes the weft into place
- Harnesses: Control warp thread movement
When you use a shuttle loom, you’ll notice it follows a specific sequence. First, the harnesses raise and lower to create the shed. Then, the shuttle passes through, leaving behind the weft yarn. Finally, the reed beats the weft into place, creating the fabric.
Warp-Weighted Loom
The warp-weighted loom is an ancient weaving device that has been used for centuries. This type of loom is characterized by its vertical structure, where the warp threads are held taut by hanging weights. As you operate the loom, you’ll notice that the weft threads are inserted horizontally, creating the fabric’s pattern.
When using a warp-weighted loom, you’ll start by attaching the warp threads to a horizontal beam at the top. The bottom ends of these threads are then grouped and tied to weights, typically made of stone or clay. As you weave, you’ll use a shed rod to separate alternate warp threads, creating an opening called the shed. Through this shed, you’ll pass the weft thread using a shuttle. The weft is then beaten into place with a sword beater, gradually forming the fabric from top to bottom.
Rapier Loom
The rapier loom is a sophisticated weaving machine that utilizes a unique weft insertion method. It employs long, thin rapiers to carry the weft yarn across the warp shed. These rapiers can be rigid or flexible, and they work in pairs, one from each side of the loom. As you observe the process, you’ll notice that one rapier passes the weft to the other at the center of the shed, ensuring precise yarn placement.
Rapier loom is versatile, as it can handle a wide range of yarn types and produce complex fabric patterns. Its high-speed operation and ability to weave both wide and narrow fabrics make it ideal for producing high-quality textiles. Rapier looms are commonly used in manufacturing apparel fabrics, home furnishings, and technical textiles, where precision and flexibility are paramount.
Projectile Loom
Projectile looms represent a significant advancement in weaving technology. These machines utilize small projectiles to propel the weft yarn across the warp threads at high speeds. This method offers several advantages over traditional shuttle looms.
In a projectile loom, the weft insertion process is divided into two stages. First, a projectile grips the yarn and carries it through the shed. Then, it releases the yarn at the opposite selvage. This innovative approach allows for faster weaving speeds and reduced energy consumption.
Projectile looms have the ability to handle a wide range of yarn types and produce various fabric widths. Additionally, you’ll notice improved fabric quality due to the reduced stress on the yarn during insertion. These looms also offer enhanced productivity and lower maintenance requirements, making them a popular choice in modern textile manufacturing.
Circular Loom
A circular loom is a specialized weaving machine designed to produce seamless tubular fabrics. These looms are particularly useful for manufacturing items like hoses, bags, and clothing without side seams. The loom’s circular structure allows for continuous weaving around a cylindrical frame, creating a tube-like fabric.
The main components of a circular loom include a rotating reed, multiple shuttles, and a take-up mechanism. As you operate the loom, the reed rotates, guiding the weft yarns through the warp threads. Multiple shuttles move around the circular frame, inserting weft yarns at various points. This simultaneous action enables faster production compared to traditional flat looms.
Circular looms offer you several benefits, including increased efficiency and the ability to produce seamless products. These looms are commonly used in industries requiring tubular textiles, such as packaging, industrial filtration, and apparel manufacturing.
Ribbon Loom
A ribbon loom is a specialized weaving machine designed for producing narrow fabrics such as ribbons, tapes, and straps. These looms are particularly useful in textile manufacturing, where precision and efficiency are paramount. The machine operates by interlacing warp and weft yarns in a continuous process, creating a tightly woven, narrow fabric.
Ribbon loom consists of several crucial parts:
- Warp beam: Holds the longitudinal threads
- Heddles: Guide the warp yarns
- Reed: Separates and spaces the warp yarns
- Shuttle: Carries the weft yarn across the warp
When you operate a ribbon loom, the heddles raise and lower specific warp yarns, creating a shed. The shuttle then passes through this opening, inserting the weft yarn. The reed beats the weft into place, forming the fabric. This process repeats rapidly, producing a continuous ribbon or narrow fabric.
Water Jet Loom
Water jet looms are advanced weaving machines that use high-pressure water jets to propel the weft yarn through the warp shed. These looms are particularly efficient for producing lightweight fabrics. The water jet system replaces traditional mechanical shuttles, allowing for higher speeds and reduced wear on components.
In a water jet loom, you’ll observe that nozzles positioned at the side of the machine emit powerful water streams. These jets carry the weft yarn across the warp threads. As the water dissipates, it leaves the weft in place. The reed then beats the weft into position, creating the fabric.
Water jet looms offer several benefits:
- Higher production speeds compared to conventional looms
- Reduced energy consumption
- Minimal yarn breakage, resulting in fewer defects
- Ideal for synthetic fibers that can withstand water exposure
However, you should note that these looms are less suitable for natural fibers sensitive to moisture.
Narrow Fabric Weaving Machine
Narrow fabric weaving machines are specialized equipment designed for producing narrow textiles such as ribbons, tapes, and straps. These machines are essential in industries requiring precise, narrow woven products.
These machines typically feature a compact design with multiple narrow-width looms arranged side by side. You’ll notice they utilize a shuttle or needle system to interlace warp and weft yarns, creating intricate patterns and designs.
When operating a narrow fabric weaving machine, you’ll appreciate its high-speed production capabilities and versatility. You can adjust settings to accommodate various yarn types and weave structures. Many modern machines offer computerized control systems, allowing you to program complex patterns and monitor production efficiency.
You’ll encounter narrow fabrics in numerous applications, from clothing accessories to industrial components. These machines produce essential materials for sectors including automotive, medical, and fashion industries.
Choosing the Right Weaving Machine for Your Needs
When selecting a weaving machine, consider these eight crucial factors:
Purpose and Fabric Type
Determine the type of fabric you’ll be producing. Different machines are optimized for specific materials like cotton, wool, or synthetics.
Production Volume
Assess your output requirements. High-volume production may necessitate faster, more automated machines.
Available Space
Measure your workspace. Some looms are compact, while others require significant floor area.
Budget Constraints
Consider initial costs and long-term operational expenses. More advanced machines often come with higher price tags but may offer greater efficiency.
Skill Level
Match the machine’s complexity to your expertise. Beginners might prefer simpler, manual looms, while experienced weavers can handle more sophisticated equipment.
Maintenance Requirements
Evaluate the upkeep needed. Some machines require frequent adjustments and repairs, impacting production time and costs.
Versatility
Look for machines that can adapt to various weaving patterns if your production needs might change.
Energy Efficiency
Consider power consumption, especially for larger operations, to manage operational costs effectively.
Tips for Operating Weaving Machines
- Familiarize yourself with the machine’s manual and safety protocols before operation.
- Conduct regular maintenance checks to ensure all parts are in good working condition.
- Properly thread the machine, following the correct path for warp and weft yarns.
- Adjust tension settings carefully to achieve the desired fabric quality.
- Monitor yarn feed consistently to prevent breakages or uneven weaving.
- Keep the work area clean and free from debris that could interfere with the machine’s operation.
- Wear appropriate safety gear, including eye protection and close-fitting clothing.
- Stay alert during operation, ready to address any issues that may arise quickly.
Remember to always prioritize safety and quality when operating weaving machines. Regular training and practice will help you become more proficient in handling these complex textile manufacturing tools.
Frequently Asked Questions
These are some frequently asked questions and answers about weaving machines.
What is the main difference between handlooms and power looms?
Handlooms are manually operated, while power looms are mechanized and run on electricity. Power looms generally produce fabric faster and more consistently than handlooms.
How often should I maintain my weaving machine?
Regular maintenance is crucial for optimal performance. Clean your machine daily, oil moving parts weekly, and schedule professional servicing annually or as recommended by the manufacturer.
Can I weave different types of fabric on the same machine?
Many modern weaving machines are versatile and can handle various fabrics. However, you may need to adjust settings or change specific parts when switching between significantly different materials.
What safety precautions should I take when operating a weaving machine?
Always wear appropriate personal protective equipment, including safety glasses and ear protection. Keep loose clothing and hair away from moving parts, and ensure proper training before operating any weaving machinery.
Conclusion
As you’ve discovered, weaving machines come in a variety of types, each suited to different applications and production scales. From traditional handlooms to advanced computerized jacquard looms, the range of options allows weavers to select the ideal machine for their specific needs.
By understanding the capabilities and limitations of each type, you can make informed decisions about which weaving machine will best serve your textile production goals. Whether you’re a hobbyist or running a large-scale operation, there’s a weaving machine designed to meet your requirements. As technology continues to advance, we can expect even more innovative and efficient weaving solutions to emerge in the future.
