Have you ever marveled at the precision of machined metal parts? The lathe is likely responsible for many of those components. As one of the most versatile and widely used machine tools, the lathe is essential in manufacturing, woodworking, and metalworking industries.
In this article, you’ll discover the definition of a lathe machine, explore its key components, and learn about various types and their specific applications. Whether you’re an engineering student, a hobbyist, or a professional machinist, understanding the capabilities and intricacies of lathe machines will enhance your knowledge and appreciation of this indispensable tool in modern manufacturing.

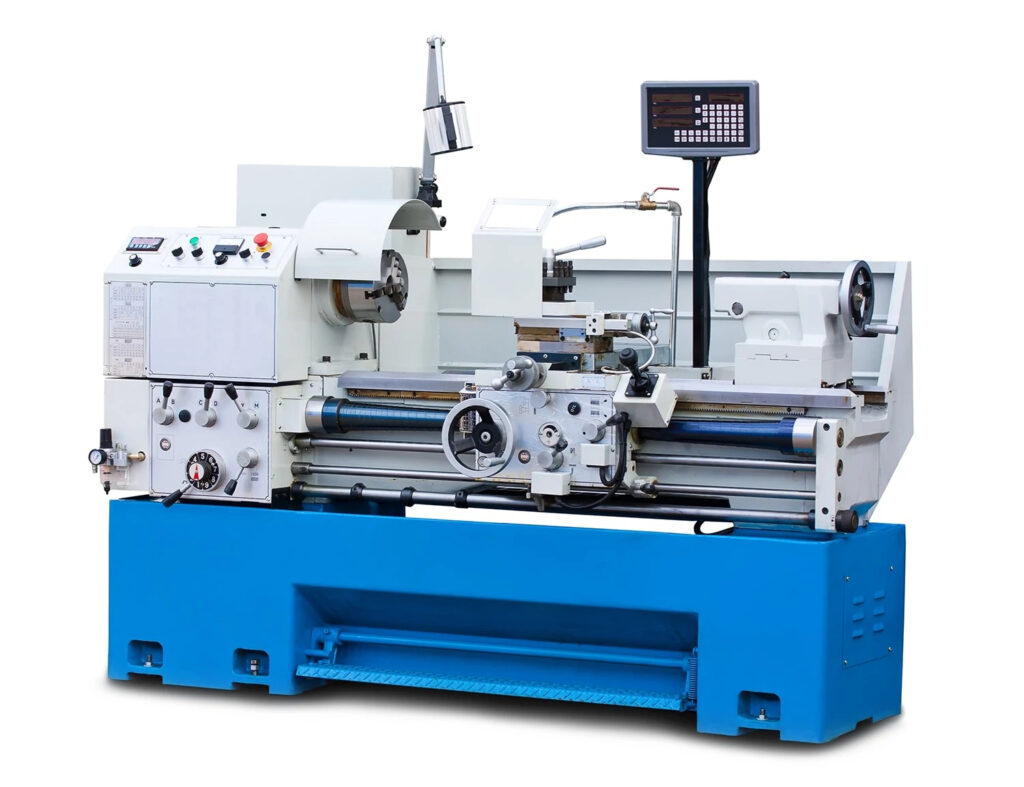

What is a Lathe Machine?
A lathe machine is a versatile and essential piece of equipment in metalworking and woodworking industries. This powerful tool is designed to rotate a workpiece on its axis while various cutting tools shape it into the desired form. Lathes are primarily used for turning, facing, drilling, and threading operations, making them indispensable in manufacturing processes.
When in operation, the workpiece is securely held between the headstock and tailstock or in a chuck attached to the spindle. As the spindle rotates, cutting tools mounted on the carriage move along the bed, shaping the material as desired. This process allows for precise control over the final product’s dimensions and surface finish.
Lathe machines are incredibly versatile and capable of producing a wide range of cylindrical and conical shapes. They’re commonly used in:
- Automotive industry for creating engine components
- Aerospace sector for manufacturing precision parts
- Furniture making for crafting decorative elements
- General manufacturing for producing threaded components
With their ability to handle various materials and create complex shapes, lathe machines remain a cornerstone of modern manufacturing processes.
How Does a Lathe Work?
A lathe machine operates on a simple yet ingenious principle. The workpiece is securely fastened to a rotating spindle while cutting tools remain stationary or move in precise patterns. As the workpiece spins, the tools make contact with its surface, removing material to shape it into the desired form. This rotational motion is the key to the lathe’s versatility, allowing for the creation of symmetrical objects with remarkable accuracy.
The actual cutting process involves several critical components working in harmony. The headstock, which houses the spindle, provides the rotational force. Meanwhile, the tailstock supports the other end of longer workpieces, ensuring stability. The carriage, equipped with various tool holders, moves along the lathe bed, allowing for longitudinal and cross-sectional cuts. By adjusting the speed of rotation and the feed rate of the cutting tools, operators can achieve a wide range of finishes and shapes.
Modern lathes often incorporate computer numerical control (CNC) systems, enhancing precision and repeatability. These systems allow for complex cutting paths and intricate designs that would be challenging to achieve manually. The lathe’s ability to perform operations like turning, facing, threading, and boring with high accuracy makes it an indispensable tool in manufacturing industries worldwide.
History and Origin of Lathe
The lathe machine, a cornerstone of modern manufacturing, has roots traced back to ancient times. Initially, primitive lathes were operated by two people: one to rotate the workpiece and another to shape it. The ancient Egyptians are credited with developing the first two-person lathe around 1300 BCE.
During the Industrial Revolution, significant advancements were made. In 1751, Jacques de Vaucanson created the first all-metal slide rest lathe, a precursor to modern designs. Henry Maudslay further improved upon this in 1797, developing the screw-cutting lathe, which allowed for more precise threading.
The 19th century saw the introduction of electric motors, revolutionizing lathe operation. This paved the way for mass production techniques and the widespread use of lathes in various industries, cementing their crucial role in modern manufacturing processes.
Components of Lathe
A lathe machine consists of several crucial components that work together to shape and cut materials. Let’s explore some key elements:
Headstock
The headstock houses the main spindle and provides power to rotate the workpiece. It contains gears and pulleys that control spindle speed, allowing for precise rotation adjustments.
Tailstock
Located opposite the headstock, the tailstock supports the other end of the workpiece. It can be adjusted along the bed to accommodate various workpiece lengths and holds tools like drill bits for center drilling operations.
Bed
The bed forms the machine’s foundation, providing a sturdy base for other components. Its precision-machined ways guide the carriage and tailstock, ensuring accurate alignment during operation.
Carriage
This component moves along the bed, carrying the cutting tool. It comprises the saddle, cross-slide, and compound rest, allowing for precise tool positioning in multiple directions.
Chuck
The chuck securely holds the workpiece, typically attached to the headstock spindle. It can be a three-jaw for cylindrical parts or a four-jaw for irregularly shaped items, ensuring a firm grip during machining.
Tool Post
Mounted on the carriage, the tool post holds cutting tools at the correct height and angle. Quick-change tool posts allow for rapid tool swapping, enhancing efficiency.
Feed Rod and Lead Screw
These components facilitate the automatic movement of the carriage. The feed rod controls longitudinal and cross feeds, while the lead screw governs thread-cutting operations.
Control Panel
Modern lathes feature a control panel for adjusting speed, feed rates, and other parameters. It may include digital readouts for precise measurements and CNC controls for automated operations.
Coolant System
This system delivers coolant or cutting fluid to the cutting zone, reducing friction and heat generation. It helps prolong tool life and improve surface finish quality.
Types of Lathe Machines
Lathe machines come in various types, each designed for specific applications. Here are some common types of lathe machines:
Engine Lathe
The engine lathe is the most versatile and widely used type. It features a headstock, tailstock, carriage, and bed, making it suitable for a wide range of operations like turning, facing, and threading.
Turret Lathe
Turret lathes are equipped with a multi-sided turret that holds multiple cutting tools. This design allows for quick tool changes, making them ideal for the mass production of small parts.
CNC Lathe
Computer Numerical Control (CNC) lathes use advanced software to control cutting operations. They offer high precision and repeatability, perfect for complex machining tasks.
Swiss-Type Lathe
Swiss-type lathes are designed for producing small, high-precision parts. They feature a sliding headstock that moves the workpiece, allowing for exceptional accuracy in long, slender parts.
Vertical Turret Lathe
These machines have a vertical spindle orientation, making them suitable for large, heavy workpieces that would be difficult to chuck in a horizontal lathe.
Tool Room Lathe
Tool room lathes are high-precision machines used for creating tools, dies, and other intricate parts. They offer a wide range of speeds and feeds for versatile operations.
Bench Lathe
Compact and portable bench lathes are ideal for small workshops or hobbyists. They’re suitable for light-duty work and can handle a variety of materials.
Multi-Spindle Lathe
These lathes feature multiple spindles that can work on several workpieces simultaneously, significantly increasing production rates for high-volume manufacturing.
What Are the Common Operations Performed on a Lathe?
Lathe machines are versatile tools capable of performing various operations. Here are some common operations:
- Turning: Reduces the workpiece’s diameter
- Facing: Creates flat surfaces perpendicular to the axis
- Boring: Enlarges existing holes
- Drilling: Creates new holes along the workpiece’s axis
- Reaming: Improves hole finish and accuracy
- Threading: Cuts internal or external threads
- Knurling: Creates a textured surface pattern
- Taper turning: Produces conical shapes
- Parting: Cuts off a portion of the workpiece
- Chamfering and grooving: Lathes can easily chamfer edges and cut grooves in workpieces to meet design requirements.
These operations allow machinists to create a wide range of cylindrical parts with precision. From simple shafts to complex components, the lathe’s versatility makes it an essential tool in the manufacturing and metalworking industries.
Applications and Uses of Lathe
These are some of the applications and uses of Lathe:
Metalworking and Machining
Lathes are indispensable in metalworking, used for turning, facing, and threading metal parts. They can create precision cylindrical components for machinery, automotive parts, and industrial equipment. Machinists rely on lathes to produce everything from small screws to large engine shafts.
Woodworking
In woodworking, lathes are essential for creating rounded objects like table legs, chair spindles, and decorative bowls. Woodturners use lathes to shape and smooth wooden pieces, transforming raw lumber into intricate, symmetrical forms.
Glassworking
Glass artisans utilize specialized lathes for shaping and forming glass objects. These lathes allow for the creation of delicate glassware, scientific instruments, and artistic pieces by rotating the glass while it’s heated and malleable.
Pottery and Ceramics
Potters employ lathes, often called pottery wheels, to shape clay into symmetrical vessels. These machines enable the creation of bowls, vases, and other circular ceramic items with precision and consistency.
Jewelry Making
Jewelers use small, precise lathes for crafting and polishing metal components of jewelry. These machines are crucial for creating intricate designs, setting stones, and achieving smooth finishes on precious metal pieces.
Advantages of Lathe
These are some of the advantages of Lathe:
Versatility and Precision
Lathe machines offer unparalleled versatility in metalworking. They can perform a wide range of operations, including turning, facing, drilling, and threading. This versatility allows for the creation of complex, cylindrical parts with high precision. The ability to achieve tight tolerances makes lathes indispensable in industries requiring exact specifications.
Cost-Effectiveness
Lathes provide excellent value for money. Their ability to perform multiple operations reduces the need for separate machines, saving both space and capital investment. This cost-effectiveness makes lathes particularly attractive for small to medium-sized workshops and businesses looking to maximize their production capabilities without breaking the bank.
Ease of Operation
Modern lathe machines are designed with user-friendliness in mind. Many feature intuitive controls and digital readouts, making them accessible to operators with varying levels of experience. This ease of use translates to reduced training time and increased productivity, as workers can quickly become proficient in operating the machine.
Durability and Longevity
Well-maintained lathe machines can last for decades, providing a reliable workhorse for any manufacturing facility. Their robust construction and relatively simple mechanical principles contribute to their longevity, ensuring a solid return on investment over time.
Other advantages of using a lathe machine:
- Accuracy – Lathes can produce extremely precise and accurate parts thanks to their design. They allow for adjustments and corrections to ensure parts match specifications.
- Variety – Lathes can produce a wide range of parts in terms of size, shape, and complexity. From simple round rods to complex multi-grooved shafts, lathes provide versatility.
- Production efficiency – Once setup, lathes can produce multiple identical parts quickly and efficiently, improving production throughput.
Lathe machines offer numerous benefits in manufacturing and metalworking. These versatile tools excel in precision, efficiency, and versatility. They allow for the production of complex cylindrical parts with high accuracy.
Lathes can handle a wide range of materials, from metals to plastics, making them indispensable in various industries. Their ability to perform multiple operations, such as turning, facing, and threading, reduces the need for separate machines. This consolidation of tasks improves workflow and saves valuable shop floor space. Lathes also offer excellent repeatability, ensuring consistent quality across large production runs. Their adaptability to both manual and CNC operations provides flexibility for different production needs.
Disadvantages of Lathe
These are some of the disadvantages of Lathe:
Limited Workpiece Size
Lathes are restricted by the size of their bed and swing, limiting the dimensions of workpieces they can accommodate. This constraint can be problematic for large-scale manufacturing projects.
High Initial Cost
The purchase price of a lathe machine, especially for high-quality or specialized models, can be substantial. This upfront investment may pose a challenge for small businesses or hobbyists.
Skill-Intensive Operation
Operating a lathe requires significant skill and training. The learning curve can be steep, potentially leading to errors, wasted materials, or even safety hazards for inexperienced users.
Maintenance Requirements
Lathes demand regular maintenance to ensure optimal performance and longevity. This ongoing upkeep can be time-consuming and costly, particularly for precision components.
Noise and Vibration
Lathe operations can generate significant noise and vibration, potentially creating an uncomfortable work environment and affecting precision in certain applications.
Material Waste
The subtractive nature of lathe machining can result in considerable material waste, especially when working with expensive materials like titanium or exotic alloys.
Energy Consumption
Lathes, particularly larger industrial models, can be energy-intensive. This high power consumption may lead to increased operational costs and environmental concerns.
How Do Manual and Automated Lathes Differ?
Manual and automated lathes serve similar purposes but differ significantly in operation, precision, and efficiency. Here are some key differences between these two types of lathes:
Operator Involvement
Manual lathes require constant operator attention and skill. The machinist must manually control every aspect of the cutting process, from feed rates to tool changes. Automated lathes, conversely, can operate with minimal human intervention once programmed.
Precision and Consistency
Automated lathes excel in producing highly precise and consistent parts. They can maintain tight tolerances over long production runs. Manual lathes, while capable of precision, are more susceptible to human error and fatigue-induced variations.
Production Speed
CNC (Computer Numerical Control) automated lathes typically outpace manual lathes in production speed. They can operate continuously without breaks and perform complex operations more quickly than a human operator.
Complexity of Parts
Automated lathes can easily handle complex geometries and intricate designs that would be challenging or impossible on manual lathes. They can execute multi-axis movements and tool changes with precision.
Skill Requirements
Manual lathes demand highly skilled operators with years of experience. Automated lathes require programming skills but can be operated by less experienced machinists once set up.
How to Choose the Right Lathe?
Selecting the appropriate lathe machine is crucial for achieving optimal results in your machining projects. Consider the following factors to make an informed decision:
Workpiece Size and Material
Evaluate the dimensions and materials of the parts you’ll be working with most frequently. Choose a lathe with sufficient swing capacity and bed length to accommodate your largest workpieces. Additionally, ensure the lathe’s power and rigidity can handle the toughest materials you’ll be machining.
Precision Requirements
Determine the level of accuracy your project demands. For high-precision work, opt for a lathe with features like hardened and ground ways, precision spindle bearings, and advanced control systems. These elements contribute to tighter tolerances and superior surface finishes.
Versatility and Features
Consider the range of operations you’ll perform. Look for a lathe with various speed settings, a wide selection of tooling options, and the ability to perform both internal and external operations. Features like digital readouts, quick-change tool posts, and coolant systems can enhance efficiency and ease of use.
Budget and Long-term Value
While cost is a factor, focus on long-term value rather than just the initial price. A higher-quality lathe machine may offer better durability, accuracy, and productivity over time, ultimately providing a better return on investment for your machining needs.
Lathe Machine Maintenance Tips
These are some of the maintenance tips for Lathe:
Regular Cleaning and Lubrication
Keep your lathe machine in top condition by cleaning it after each use. Remove metal chips, debris, and coolant residue using a brush or compressed air. Lubricate moving parts with the appropriate oil or grease to reduce friction and wear.
Inspect and Tighten Components
Regularly check all bolts, nuts, and screws for tightness. Vibrations can loosen these components over time, affecting the lathe’s accuracy and performance. Pay special attention to the headstock, tailstock, and carriage assemblies.
Maintain Proper Alignment
Ensure the lathe’s headstock and tailstock remain properly aligned. Use a precision level to check the bed ways and adjust as necessary. Proper alignment is crucial for producing accurate cuts and maintaining the longevity of your lathe machine.
Check and Replace Belts
Inspect drive belts for signs of wear, cracking, or stretching. Replace worn belts promptly to prevent unexpected breakdowns and maintain optimal power transmission. Proper belt tension is essential for smooth operation.
Monitor Coolant System
Regularly check the coolant level and quality. Clean or replace filters as needed, and flush the system periodically to prevent buildup of contaminants. Proper coolant management helps extend tool life and improve surface finishes.
Sharpen and Replace Cutting Tools
Keep cutting tools sharp and replace them when worn. Dull tools can lead to poor surface finishes, inaccurate cuts, and increased strain on the lathe machine. Invest in high-quality tools and maintain them properly.
Calibrate Measuring Instruments
Regularly calibrate dial indicators, micrometers, and other measuring instruments used with your lathe. Accurate measurements are crucial for precision work and maintaining tight tolerances.
Schedule Professional Maintenance
While regular maintenance can be performed in-house, schedule periodic professional inspections and servicing. Experts can identify potential issues early and perform more complex maintenance tasks to keep your lathe machine running smoothly.
Frequently Asked Questions
These are some frequently asked questions and answers about Lathe.
What is a lathe machine used for?
A lathe machine is primarily used for shaping and cutting materials like metal, wood, or plastic. It rotates the workpiece on its axis to perform various operations such as cutting, sanding, knurling, drilling, or deformation. Lathes are versatile tools essential in metalworking, woodturning, and many manufacturing processes.
How much does a lathe cost in Nigeria?
The cost of a lathe in Nigeria varies widely, typically ranging from ₦150,000 for small bench lathes to over ₦5,000,000 for industrial-grade machines.
What are the main types of lathe machines?
There are several types of lathe machines, each designed for specific applications:
- Engine lathe: The most common type, used for general-purpose work
- CNC lathe: Computer-controlled for precision and automation
- Wood lathe: Specifically designed for woodworking
- Turret lathe: Features a rotating turret for quick tool changes
- Swiss-type lathe: Used for producing small, precise parts
Understanding these different types helps in selecting the right lathe for specific machining needs.
What Materials Can Be Used on a Lathe?
Lathes can work with various materials, including:
- Metals (steel, aluminum, brass)
- Wood
- Plastics
- Ceramics
- Composites
- Glass
- Stone
What Are the Common Operations Performed on a Lathe?
Common lathe operations include:
- Turning: Reducing workpiece diameter
- Facing: Creating flat surfaces perpendicular to the axis
- Drilling: Creating holes along the centerline
- Threading: Cutting internal or external threads
- Boring: Enlarging existing holes
- Knurling: Creating textured patterns on surfaces
- Taper turning: Producing conical shapes
These versatile machines are essential in the manufacturing, woodworking, and metalworking industries, offering precision and flexibility for a wide range of applications.
How accurate is a lathe?
Lathe machines can achieve remarkable precision, with many modern CNC lathes capable of accuracies within ±0.0001 inches (2.54 micrometers). However, the actual accuracy depends on factors like the machine’s quality, maintenance, and operator skill. High-end lathes used in aerospace or medical industries can achieve even tighter tolerances.
How long does a lathe last?
With proper maintenance, a lathe can last for decades. Industrial-grade lathes often have lifespans of 20-30 years or more. Regular lubrication, alignment checks, and timely repairs are crucial for longevity. The machine’s lifespan also depends on usage frequency, workload, and environmental conditions. Many vintage lathes from the early 20th century are still operational today, a testament to their durability.
Conclusion
As you’ve discovered, the lathe machine is a versatile and indispensable tool in manufacturing and metalworking. Its ability to perform various operations, from turning and facing to drilling and threading, makes it a cornerstone of modern industry.
By understanding the different types of lathes and their components, you can better appreciate the precision and efficiency these machines bring to the production process. Whether you’re a seasoned machinist or simply curious about industrial equipment, the lathe’s enduring importance in shaping our material world is undeniable. As technology advances, lathes continue to evolve, promising even greater accuracy and capabilities in the future of manufacturing.
