As you delve into the world of manufacturing and machining, you’ll quickly encounter the essential role of cutting tools. These precision instruments are the unsung heroes of industrial production, shaping raw materials into finished products with remarkable accuracy.

In this article, we’ll explore the diverse realm of cutting tools, from their basic definition to the intricate classifications that govern their use. You’ll discover the various types of cutting tools at your disposal and gain insight into the advanced materials that make modern machining possible. Whether you’re a seasoned professional or new to the field, understanding cutting tools is crucial for optimizing your manufacturing processes.

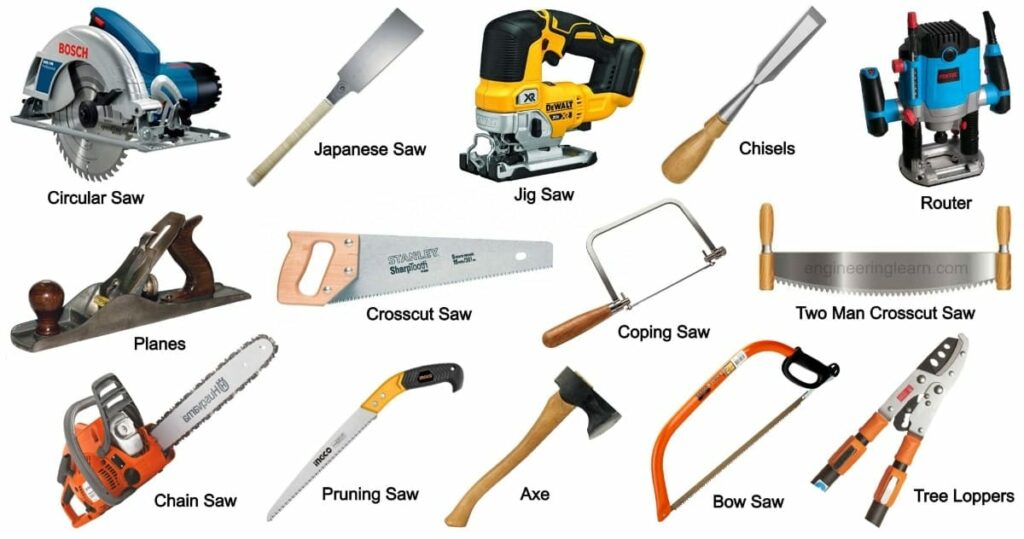

What are Cutting Tools?

Cutting tools are essential instruments in manufacturing and metalworking processes, designed to remove material from a workpiece through shear deformation. These precision-engineered devices play a crucial role in shaping raw materials into finished products across various industries.

Cutting tools are specialized implements used to cut, shape, or remove material from a workpiece, typically in machining operations. They come in various forms, from simple handheld tools to complex, computer-controlled machinery. The primary function of cutting tools is to create a desired shape or finish by precisely removing excess material.

The purpose of cutting tools extends beyond mere material removal. They are instrumental in:

• Achieving precise dimensions and tolerances
• Creating specific surface finishes
• Improving productivity in manufacturing processes
• Enabling complex geometries in parts and components

Cutting tools find applications in diverse fields, including automotive, aerospace, construction, and woodworking industries. Their versatility and precision make them indispensable in modern manufacturing.

Effective cutting tools possess several critical attributes:

• Hardness: To withstand the forces involved in cutting
• Toughness: To resist fracture and chipping
• Wear resistance: To maintain sharpness over extended use
• Heat resistance: To perform consistently at high temperatures

By understanding the definition, purpose, and characteristics of cutting tools, manufacturers can select the most appropriate tools for their specific applications, ensuring optimal performance and product quality.

Classifications of Cutting Tools

These are the major classifications of Cutting tools:

Single Point Cutting Tool

Single point cutting tools are fundamental components in the world of machining and metalworking. These precision instruments are designed to remove material from a workpiece, shaping it to desired specifications. Unlike multi-point cutting tools, single point tools feature just one cutting edge, making them ideal for specific applications in turning operations.

The structure of a single point cutting tool is carefully engineered to maximize efficiency and durability.

Key elements include:

• Cutting edge: The primary point of contact with the workpiece
• Rake face: The surface over which chips flow during cutting
• Flank: The surface adjacent to the cutting edge
• Nose radius: The rounded tip that influences surface finish

Applications and Advantages

Single point cutting tools excel in lathe operations, where they’re used for turning, facing, and boring. Their simplicity allows for:

• Precise control over cutting depth and feed rate
• Easy resharpening, extending tool life
• Versatility in creating various surface finishes

Material Considerations

The effectiveness of single point cutting tools depends heavily on material selection. High-speed steel (HSS) and carbide are popular choices, each offering unique benefits in terms of hardness, wear resistance, and heat tolerance.

Here are seven types of these versatile tools:

• Turning Tools: Turning tools are designed for removing material from rotating workpieces. They’re commonly used in lathes to create cylindrical shapes. These cutting tools come in various geometries to suit different materials and cutting conditions.
• Boring Bars: Boring bars are specialized tools for enlarging and finishing holes in workpieces. They feature a long, slender body with a cutting edge at the tip, allowing access to internal surfaces. Precision is key when using boring bars.
• Threading Tools: Threading tools are used to create both internal and external threads. They have a specific cutting edge profile that matches the desired thread form. These tools require careful setup and feed rates to produce accurate threads.
• Grooving Tools: Grooving tools are designed to cut channels or grooves into workpieces. They feature a narrow cutting edge that plunges into the material. These tools are essential for creating O-ring grooves, retaining ring slots, and other features.
• Parting Tools: Parting tools, also known as cut-off tools, are used to separate a workpiece from the parent material. They have a thin, blade-like profile that allows for minimal material waste during the cutting process.
• Form Tools: Form tools have custom-shaped cutting edges designed to produce specific contours or profiles in a single pass. They’re ideal for high-volume production of parts with complex shapes.
• Chamfering Tools: Chamfering tools are used to create angled edges on workpieces. They typically have a cutting edge set at a specific angle, commonly 45 degrees, to produce clean, consistent chamfers.

By understanding the intricacies of single point cutting tools, machinists can optimize their use in various applications, ensuring precision and efficiency in metalworking processes.

Double Point Cutting Tool

Double point cutting tools are specialized instruments in the family of cutting tools designed for precision machining operations. These tools feature two distinct cutting edges, allowing for enhanced efficiency and versatility in various manufacturing processes.

Double point cutting tools typically consist of a sturdy shank with two cutting points positioned at opposite ends. This unique configuration enables machinists to perform multiple operations without changing tools, saving valuable production time. The cutting edges are precisely ground to achieve optimal sharpness and durability, ensuring consistent performance across a wide range of materials.

Applications and Advantages

These versatile cutting tools excel in applications such as:

• Grooving and parting operations
• Cutting narrow channels or slots
• Creating intricate profiles on workpieces

One of the primary advantages of double point cutting tools is their ability to produce clean, accurate cuts with minimal material waste. By distributing cutting forces across two points, these tools also help reduce vibration and chatter, resulting in improved surface finishes and tighter tolerances.

Material Considerations

Manufacturers often craft double point cutting tools from high-speed steel (HSS) or carbide, depending on the specific application requirements. HSS tools offer good toughness and are suitable for general-purpose machining, while carbide tools provide superior hardness and wear resistance for high-speed operations or when working with abrasive materials.

Let’s explore seven types of double point cutting tools and their unique features:

• Side and Face Cutter: This type of cutting tool is designed for simultaneous cutting on both sides and face. It’s commonly used in milling operations, especially for creating slots and grooves. The side and face cutter excels in removing material quickly and efficiently.
• Double-Ended End Mill: Double-ended end mills feature cutting edges on both ends, allowing for increased versatility in machining operations. These tools are ideal for plunge cutting, slotting, and profiling. Their design enables operators to flip the tool when one end becomes dull, extending its lifespan.
• Double-Angle Cutter: Specialized for creating V-shaped grooves, double-angle cutters have two angled cutting edges. They’re frequently used in gear cutting, dovetail joints, and chamfering operations. The precision of these cutting tools ensures accurate and consistent V-groove profiles.
• Double-Side Threading Tool: This tool is crucial for creating internal and external threads simultaneously. It features cutting edges on both sides, allowing for efficient threading operations. Double-side threading tools are particularly useful in mass production settings where time is of the essence.
• Double-Ended Boring Bar: Designed for precision boring operations, these tools have cutting edges at both ends. They’re ideal for creating or enlarging holes in workpieces. The double-ended design allows for easy adjustment and increased flexibility in machining setups.
• Double-Flute Drill Bit: These drill bits feature two cutting edges that spiral along the length of the tool. They’re excellent for drilling holes in various materials, offering improved chip evacuation and faster drilling speeds compared to single-flute bits.
• Double-Sided Insert Cutter: Utilizing replaceable cutting inserts, these tools offer versatility and cost-effectiveness. The double-sided design allows operators to flip the insert when one side becomes worn, effectively doubling the tool’s lifespan and reducing downtime.

Multi-point Cutting Tool

Multi-point cutting tools are essential components in the world of machining and manufacturing. These versatile cutting tools feature multiple cutting edges or points, allowing for efficient material removal and precise shaping of workpieces.

Types of Multi-point Cutting Tools

There are several common types of multi-point cutting tools:

• Milling cutters: These rotating tools have multiple teeth or flutes for cutting metal or other materials.
• Drill bits: While primarily used for creating holes, many drill bits have multiple cutting edges.
• Reamers: Used for enlarging and finishing holes, reamers typically have multiple cutting edges for smooth, accurate results.
• Broaches: These tools have a series of progressively larger teeth for cutting internal or external shapes.

Advantages of Multi-point Cutting Tools

Multi-point cutting tools offer several benefits in machining operations:

• Increased efficiency: Multiple cutting edges allow for faster material removal.
• Improved surface finish: The distribution of cutting forces across multiple points often results in smoother surfaces.
• Extended tool life: By spreading wear across multiple cutting edges, these tools can last longer than single-point alternatives.

Considerations for Use

When selecting and using multi-point cutting tools, consider factors such as material compatibility, cutting speed, and coolant requirements. Proper tool selection and maintenance are crucial for achieving optimal performance and longevity in machining applications.

Major Types of Cutting Tools and Their Uses

These are some main types of cutting tools and their uses:

Milling Cutters

Milling cutters are versatile cutting tools used in milling machines. They come in various shapes and sizes, designed to remove material from workpieces efficiently. These tools are essential for creating flat surfaces, slots, and complex contours in manufacturing processes.

Drill Bits

Drill bits are cylindrical cutting tools used to create holes in materials. They come in different sizes and types, such as twist drills, spade drills, and step drills. Drill bits are crucial for construction, woodworking, and metalworking industries.

Turning Tools

Turning tools, used in lathes, are designed for shaping cylindrical workpieces. These cutting tools remove material as the workpiece rotates, creating various profiles and diameters. They are essential in producing components like shafts, bolts, and other cylindrical parts.

Boring Bars

Boring bars are specialized cutting tools used to enlarge or finish existing holes. They are crucial in achieving precise internal diameters and smooth surface finishes in machining operations.

End Mills

End mills are rotary cutting tools with cutting edges on the end face and periphery. They are versatile and used for various operations like slotting, profiling, and facing. End mills are essential in CNC machining and mold-making industries.

Reamers

Reamers are precision cutting tools used to enlarge and finish holes to exact sizes. They produce smooth, accurate holes with tight tolerances, making them crucial in industries requiring high-precision components.

Broaches

Broaches are cutting tools designed to remove material from internal or external surfaces. They are used to create specific shapes, such as keyways or splines, in a single pass. Broaching is essential in automotive and aerospace industries.

Taps and Dies

Taps and dies are cutting tools used for creating internal and external threads, respectively. They are crucial in producing threaded components like bolts, nuts, and screws, which are essential in various industries and applications.

Examples Of Cutting Tools In Workshop

Cutting tools are essential for shaping and forming materials in any workshop. Here are some common examples of cutting tools you’ll find in a typical workshop setting:

Saw

Saws come in various types, including hand saws and power saws. They’re designed for cutting wood, metal, or plastic. Circular saws, for instance, use a toothed blade to make straight cuts quickly and efficiently.

Drill

While primarily used for making holes, drills can also function as cutting tools when equipped with specialized bits. They’re versatile and can work on wood, metal, and masonry.

Lathe

Lathes are precision cutting tools used for shaping cylindrical objects. They rotate the workpiece against a stationary cutting tool, allowing for intricate designs and smooth finishes.

Router

Routers are used to hollow out an area in wood or plastic. They’re excellent for creating decorative edges, cutting grooves, and making joints in woodworking projects.

Chisel

Chisels are hand tools with sharp, beveled edges used for carving and cutting wood, stone, or metal. They’re essential for detailed work and precise material removal.

Milling Machine

Milling machines use rotary cutters to remove material from a workpiece. They’re capable of producing complex shapes and are commonly used in metalworking.

Plasma Cutter

This high-tech cutting tool uses a plasma torch to cut through electrically conductive materials like steel and aluminum. It’s ideal for quick, clean cuts in metal fabrication.

Bandsaw

Bandsaws use a continuous band of toothed metal to make curved or straight cuts. They’re versatile and can cut through wood, metal, or plastic with precision.

Applications of Cutting Tools in Manufacturing

Cutting tools play a crucial role in various manufacturing processes. Here are some key applications:

Metal Removal and Shaping

Cutting tools are essential in metalworking operations. They’re used to remove excess material from workpieces, shaping them into desired forms. This process, known as machining, is fundamental in producing parts for industries ranging from automotive to aerospace.

Drilling and Boring

Specialized cutting tools create holes and cavities in materials. Drills and boring bars are examples of cutting tools used for these purposes. They’re vital in manufacturing components that require precise internal features.

Threading and Tapping

Cutting tools are used to create both external and internal threads. Taps and dies are specific types of cutting tools designed for this purpose, enabling the production of screws, bolts, and threaded holes.

Milling and Profiling

Milling cutters, a type of rotary cutting tool, are used to remove material and create complex shapes. They’re crucial in producing components with intricate profiles, such as gears or molds.

Turning and Facing

Lathe cutting tools are used in turning operations to create cylindrical parts. They’re essential in producing shafts, pins, and other rotational components.

Grooving and Parting

Specialized cutting tools create grooves or separate workpieces entirely. These operations are vital in producing components with specific features or in separating finished parts from raw stock.

Finishing and Surface Treatment

Fine cutting tools are used to achieve precise surface finishes. This includes tools for grinding, honing, and polishing, which are crucial for producing parts with specific surface qualities.

Composite Material Processing

Advanced cutting tools are designed to work with modern materials like carbon fiber composites. These tools enable the precise shaping and finishing of lightweight, high-strength components used in aerospace and automotive industries.

Cutting Tool Materials

Cutting tools are essential in manufacturing and come in various materials, each with unique properties. Here’s a detailed look at some common cutting tool materials:

High-Speed Steel (HSS)

High-speed steel is a versatile material for cutting tools. It maintains hardness at high temperatures, making it ideal for high-speed machining operations. HSS tools are cost-effective and can be easily resharpened, extending their lifespan.

Carbide

Carbide cutting tools offer superior hardness and wear resistance. They’re composed of tungsten carbide particles in a cobalt binder. These tools excel in high-speed, high-production environments and can handle harder materials than HSS.

Ceramic

Ceramic cutting tools provide excellent heat resistance and hardness. They’re suitable for machining hard materials at high speeds. However, they can be brittle and require careful handling.

Cubic Boron Nitride (CBN)

CBN is second only to diamond in hardness. It’s particularly effective for machining hardened steels and cast irons. CBN tools maintain their cutting edge at extreme temperatures, making them ideal for high-speed applications.

Diamond

Diamond cutting tools offer unparalleled hardness and wear resistance. They’re primarily used for non-ferrous materials and abrasive composites. While expensive, diamond tools provide exceptional surface finishes and long tool life.

Factors to Consider When Selecting Cutting Tools

When choosing cutting tools for your project, several key factors come into play. Consider these seven crucial elements to ensure optimal performance and efficiency:

Material Compatibility

The workpiece material significantly influences your choice of cutting tools. Different materials require specific tool compositions and geometries for effective cutting. For instance, high-speed steel tools work well with softer materials, while carbide cutting tools excel in machining harder substances.

Cutting Speed and Feed Rate

Optimal cutting speed and feed rate vary depending on the tool and workpiece material. Higher speeds may increase productivity but can also lead to premature tool wear. Balancing these factors is crucial for achieving the desired surface finish and tool life.

Tool Geometry

The cutting edge geometry affects the tool’s performance and longevity. Consider factors such as rake angle, clearance angle, and nose radius when selecting cutting tools. These geometric features influence chip formation, cutting forces, and surface finish quality.

Coating Technology

Modern cutting tools often feature specialized coatings that enhance performance. These coatings can improve wear resistance, reduce friction, and extend tool life. Choose tools with coatings suited to your specific application and workpiece material.

Tool Holder Compatibility

Ensure the selected cutting tools are compatible with your machine’s tool holder system. Proper tool holding is essential for maintaining accuracy, reducing vibration, and maximizing tool life.

Cost-Effectiveness

While high-quality cutting tools may have a higher initial cost, they often prove more economical in the long run due to increased productivity and longer tool life. Consider the total cost of ownership when making your selection.

Application Requirements

Finally, consider the specific requirements of your application, such as tolerance levels, surface finish quality, and production volume. These factors will help guide your decision towards the most suitable cutting tools for your needs.

Proper Use and Maintenance of Cutting Tools

Proper use and maintenance of cutting tools are crucial for ensuring optimal performance, longevity, and safety. Here are some essential practices to keep in mind:

Regular Sharpening

Maintain the sharpness of your cutting tools through regular honing or sharpening. Dull tools require more force, increasing the risk of accidents and producing poor-quality cuts.

Correct Storage

Store cutting tools in a dry, clean environment to prevent rust and damage. Use protective sheaths or cases when necessary, and keep them organized to avoid accidents.

Proper Cleaning

Clean your tools after each use to remove debris, chips, and moisture. This prevents corrosion and ensures smooth operation for future use.

Lubrication

Apply lubricant to moving parts and cutting edges to reduce friction, prevent rust, and extend the tool’s lifespan.

Correct Usage Techniques

Use cutting tools only for their intended purpose and follow manufacturer guidelines. Improper use can damage the tool and compromise safety.

Safety Gear

Always wear appropriate personal protective equipment, such as safety glasses, gloves, and hearing protection, when operating cutting tools.

Regular Inspection

Inspect your tools regularly for signs of wear, damage, or misalignment. Replace or repair tools as needed to maintain optimal performance and safety.

Proper Training

Ensure that all users are properly trained in the safe and effective use of cutting tools. This includes understanding tool capabilities, limitations, and maintenance requirements.

Frequently Asked Questions

These are some frequently asked questions and answers about cutting tools.

What are the most common types of cutting tools?

The most common cutting tools include drills, mills, lathes, and saws. Each type serves a specific purpose in material removal. Drills create holes, mills shape flat surfaces, lathes work on cylindrical pieces, and saws cut through materials.

How do I choose the right cutting tool for my project?

Selecting the appropriate cutting tool depends on several factors:

• Material being cut
• Desired finish quality
• Production volume
• Machine capabilities

Consider consulting with a tooling specialist to ensure you choose the best cutting tools for your specific application.

What materials are used to make cutting tools?

Cutting tools are typically made from:

• High-speed steel (HSS)
• Carbide
• Ceramic
• Diamond

Each material offers different properties in terms of hardness, wear resistance, and heat tolerance. Carbide cutting tools, for instance, are known for their durability and ability to maintain a sharp edge under high temperatures.

How can I extend the life of my cutting tools?

To maximize the lifespan of your cutting tools:

• Use proper cutting speeds and feeds
• Ensure adequate cooling and lubrication
• Clean and store tools properly after use
• Sharpen or replace tools when performance declines

Regular maintenance and careful operation will help preserve your cutting tools’ effectiveness and longevity.

Conclusion

As you’ve learned, cutting tools are essential in manufacturing and machining processes. By understanding the various types, classifications, and materials used in cutting tools, you can make informed decisions about which tools best suit your specific applications.

Remember that selecting the right cutting tool involves considering factors such as workpiece material, desired surface finish, and production volume. Staying up-to-date with advancements in cutting tool technology and materials will help you optimize your machining operations and improve overall efficiency. Whether you’re a machinist, engineer, or manufacturing professional, a thorough knowledge of cutting tools is crucial for success in today’s competitive industrial landscape.
