DC Motor: Definition, Working Principle, Types & Uses

Have you ever wondered how the electric motors in your household appliances and vehicles work? At the heart of many of these devices lies the DC motor, a crucial component that converts electrical energy into mechanical motion.

In this article, we’ll explore the fascinating world of DC motors, from their fundamental operating principles to the various types and applications. Whether you’re an engineering student, a hobbyist, or simply curious about the technology that powers our modern world, understanding DC motors will provide valuable insights into the machines that surround you every day. Let’s dive into the inner workings of these ubiquitous yet often overlooked marvels of engineering.

What is a DC Motor?

A DC motor is an electromechanical device that converts direct current (DC) electrical energy into mechanical energy. This versatile machine plays a crucial role in various applications, from small electronic devices to large industrial equipment.

The key components of a DC motor include:

• Stator: The stationary part that generates a magnetic field
• Rotor (armature): The rotating part that produces mechanical output
• Commutator: A mechanism that reverses current direction
• Brushes: Conduct electricity between stationary and moving parts

DC motors operate on the principle of electromagnetic induction. When current flows through the armature windings, it interacts with the magnetic field produced by the stator, creating a torque that causes the rotor to spin. The commutator and brushes work together to maintain the direction of rotation, ensuring continuous motion.

Understanding the intricacies of DC motors is essential for engineers and technicians working with electrical systems and machinery.

How Does a DC Motor Work? The Basic Principles

The DC motor operates on a fundamental principle of electromagnetism. When an electric current flows through a wire placed in a magnetic field, it experiences a force perpendicular to both the current and the magnetic field. This force causes the motor to rotate.

When you apply a DC voltage to the motor, current flows through the armature windings. This creates a magnetic field that interacts with the stator’s field, generating a torque that rotates the armature. The commutator and brushes work together to maintain the direction of rotation, ensuring continuous motion of the DC motor.

Main Components of a DC Motor

A DC motor consists of several key components that work together to convert electrical energy into mechanical motion. Understanding these parts is crucial for grasping how a DC motor functions.

Armature or Rotor

The armature, also known as the rotor, is the rotating part of the DC motor. It consists of a series of wire coils wound around a metal core. When current flows through these coils, they generate a magnetic field that interacts with the stator’s field.

Stator or Field Magnet

The stator is the stationary part of the motor that creates a fixed magnetic field. In many DC motors, this is achieved using permanent magnets, though some use electromagnets for greater control.

Commutator

This crucial component is a split ring mounted on the rotor’s shaft. It reverses the current direction in the armature windings periodically, maintaining the motor’s rotation.

Brushes

Carbon brushes make electrical contact with the commutator, transferring current from the power source to the armature windings as the shaft rotates.

Types of DC Motors

These are the five main types of DC Motors, their working principles, applications and advantages:

Brushed DC Motor

Brushed DC motors are a classic and widely used type of DC motor. These versatile machines convert electrical energy into mechanical energy through electromagnetic interaction. At their core, brushed DC motors consist of a stationary field magnet (stator) and a rotating armature (rotor) with wound coils.

Working Principle

The brushed DC motor operates on a simple yet effective principle. When current flows through the armature windings, it creates a magnetic field that interacts with the stator’s field. This interaction produces a torque, causing the rotor to spin. As the rotor turns, a mechanical commutator and carbon brushes work together to reverse the current direction in the windings, maintaining continuous rotation.

Advantages and Applications

Brushed DC motors offer several benefits, including:

• Simple control and operation
• High starting torque
• Wide speed range

These characteristics make brushed DC motors ideal for various applications, from power tools and automotive systems to robotics and small appliances.

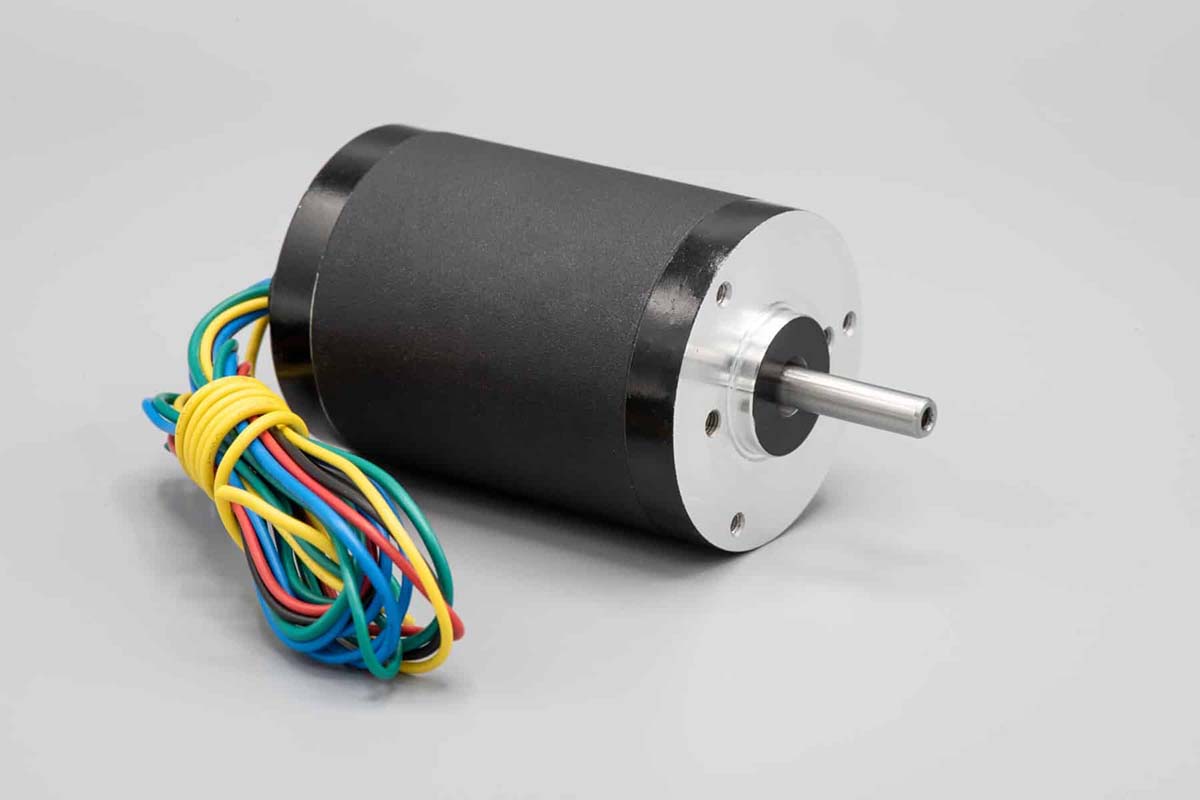

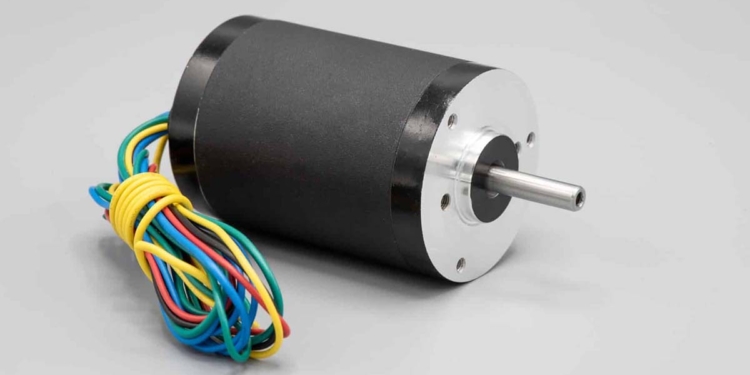

Brushless DC Motor (BLDC)

Brushless DC motors (BLDC) represent a significant advancement in DC motor technology. These innovative motors eliminate the need for mechanical brushes, resulting in improved efficiency and reduced maintenance requirements.

Construction and Operation

BLDCs consist of a permanent magnet rotor and a stator with electromagnetic coils. Unlike traditional DC motors, the commutation in BLDCs is achieved electronically through a controller. This electronic commutation system precisely controls the current flow to the stator windings, creating a rotating magnetic field that drives the rotor.

Advantages of BLDC Motors

• Higher efficiency due to reduced friction and heat generation
• Longer lifespan and increased reliability
• Quieter operation and reduced electromagnetic interference
• Better speed-torque characteristics

Applications

BLDC motors find extensive use in various industries, including:

• Automotive sector (electric vehicles, power steering)
• Computer hardware (cooling fans, hard disk drives)
• Home appliances (air conditioners, washing machines)
• Aerospace and military equipment

The versatility and superior performance of BLDC motors make them an increasingly popular choice for many applications requiring precise control and high efficiency.

Separately Excited DC Motor

A separately excited DC motor is a unique type of DC motor characterized by its independent field and armature windings. This configuration allows for precise control of both the field flux and armature current, making it ideal for applications requiring variable speed and torque.

Construction and Operation

The separately excited DC motor consists of two main components:

• Field winding: Connected to a separate DC source, it generates the main magnetic field.
• Armature winding: Supplied by another DC source, it carries the current that interacts with the field.

This separation enables independent adjustment of field strength and armature current, offering superior speed and torque control compared to other DC motor types.

Advantages and Applications

Separately excited DC motors excel in:

• Wide speed range operations
• Precise speed control
• High starting torque

These characteristics make them popular in industrial applications like machine tools, elevators, and electric vehicles, where the DC motor’s versatility is crucial for optimal performance.

Self Excited DC Motor

Self-excited DC motors are a unique type of DC motor that generate their own magnetic field without the need for external excitation. These motors utilize the residual magnetism in their field poles to initiate the process of self-excitation. As the armature rotates, it induces a small voltage in the field windings, which in turn strengthens the magnetic field. This reinforcing cycle continues until the motor reaches its rated speed and voltage.

Types of Self-Excited DC Motors

There are three main types of self-excited DC motors:

• Shunt-wound motors: Field windings are connected in parallel with the armature
• Series-wound motors: Field windings are connected in series with the armature
• Compound-wound motors: A combination of shunt and series windings

Each type offers unique characteristics in terms of speed regulation, starting torque, and load handling capabilities. The choice of self-excited DC motor depends on the specific application requirements, making them versatile options for various industrial and automotive uses.

Servo DC Motor

Servo DC motors are a specialized type of DC motor designed for precise control and positioning. These motors are essential components in many automated systems, robotics, and industrial applications where accuracy is paramount.

Working Principle

At the core of a servo DC motor is a standard DC motor coupled with a feedback mechanism. This feedback system, typically an encoder or potentiometer, constantly monitors the motor’s position and speed. The motor receives commands from a controller, which compares the desired position with the actual position provided by the feedback device. This closed-loop control allows for extremely accurate positioning and speed control.

Key Features

Servo DC motors offer several advantages:

• High precision: Can achieve angular accuracies of less than 1 degree
• Rapid response: Quick acceleration and deceleration
• Holding torque: Maintains position even when power is removed
• Compact size: Offers high torque-to-size ratio

These features make servo DC motors ideal for applications requiring precise movement control, such as CNC machines, robotic arms, and camera gimbals.

DC Motor Control Methods

These are the main DC Motor control methods:

Voltage Control

Voltage control is a fundamental method for regulating DC motor speed. By adjusting the applied voltage, you can directly influence the motor’s rotational velocity. Higher voltage increases speed, while lower voltage decreases it. This method is simple and cost-effective, making it popular for basic DC motor applications.

PWM Control

Pulse Width Modulation (PWM) offers precise DC motor control by rapidly switching the power on and off. By varying the duty cycle of these pulses, you can effectively control the average voltage supplied to the motor. PWM provides efficient speed control and is widely used in modern DC motor systems.

Field Weakening

For separately excited DC motors, field weakening allows for speed control above the base speed. By reducing the field current, you can increase the motor’s speed while maintaining constant power output. This method is particularly useful in applications requiring a wide speed range.

Armature Resistance Control

This method involves inserting additional resistance in series with the armature circuit of a DC motor. By varying this resistance, you can control the current flowing through the armature, thus affecting the motor’s speed and torque. While simple, this method is less efficient due to power losses in the resistor.

Feedback Control Systems

Closed-loop feedback systems, such as PID controllers, provide precise DC motor control by continuously monitoring and adjusting motor parameters. These systems compare the actual motor performance with the desired output and make real-time adjustments, ensuring accurate speed and position control in sophisticated applications.

DC Motor Speed Control Techniques

DC motor speed control is essential for various applications. Here are four key techniques used to regulate the speed of DC motors:

Field Flux Control

This method involves adjusting the magnetic field strength in the motor. By decreasing the field current, you can increase the motor speed. Conversely, increasing the field current reduces the speed. This technique is efficient but limited to speeds above the base speed.

Armature Voltage Control

Altering the armature voltage directly affects the DC motor’s speed. Increasing the voltage raises the speed, while decreasing it lowers the speed. This method is widely used due to its simplicity and effectiveness across a broad speed range.

Armature Resistance Control

By adding external resistance to the armature circuit, you can reduce the voltage across the armature, thus decreasing the motor speed. While simple, this method is less efficient due to power loss in the external resistance.

Pulse Width Modulation (PWM)

PWM is a modern technique that rapidly switches the power supply on and off. By adjusting the duty cycle of these pulses, you can precisely control the average voltage supplied to the DC motor, allowing for smooth and efficient speed regulation.

Applications and Uses of DC Motors

DC motors are versatile components with a wide range of applications across various industries. Here are some important uses of DC motors:

Industrial Machinery

In manufacturing, DC motors power conveyor belts, robotic arms, and precision tools. Their ability to provide variable speed control makes them ideal for assembly lines and automated processes.

Automotive Industry

DC motors are crucial in vehicles, powering electric windows, windshield wipers, and seat adjustments. In electric and hybrid cars, larger DC motors drive the wheels, offering efficient and responsive performance.

Home Appliances

You’ll find DC motors in many household devices, from vacuum cleaners to washing machines. Their compact size and energy efficiency make them perfect for portable and stationary appliances alike.

Computer Hardware

In computers, small DC motors control disk drives and cooling fans. Their precise speed control ensures optimal performance and temperature regulation in these sensitive electronic devices.

Advantages of DC Motors

DC motors offer numerous benefits across various applications. Here are some key advantages:

1. Speed Control: DC motors provide excellent speed control, allowing for precise adjustments over a wide range.
2. High Starting Torque: These motors deliver strong initial torque, making them ideal for applications requiring quick starts.
3. Compact Size: DC motors are often smaller and lighter than their AC counterparts, saving space in tight installations.
4. Energy Efficiency: They typically operate more efficiently than AC motors, especially at lower speeds.
5. Reversibility: DC motors can easily reverse direction by simply switching the polarity of the power supply.
6. Low Noise: Many DC motor designs produce less noise compared to AC motors, benefiting noise-sensitive environments.
7. Variable Speed: DC motors offer smooth speed variation without the need for complex control systems.
8. Compatibility: They work well with battery power sources, making them suitable for portable and off-grid applications.

These advantages make DC motors a versatile choice for many industrial, automotive, and consumer applications.

Disadvantages of DC Motors

While DC motors are widely used, they come with several drawbacks:

Brush Wear and Maintenance

DC motors rely on carbon brushes for commutation, which wear down over time. This necessitates regular maintenance and replacement, increasing operational costs.

Sparking and Electromagnetic Interference

The brushes in DC motors can create sparks during operation, potentially causing electromagnetic interference with nearby electronic devices.

Limited Speed Control

DC motors have a relatively narrow speed range compared to some AC motor types, which can limit their applicability in certain applications.

Higher Initial Cost

DC motors often have a higher upfront cost compared to equivalent AC motors, especially for larger power ratings.

Lower Efficiency at High Speeds

The efficiency of DC motors tends to decrease at higher speeds due to increased brush friction and other factors.

Noise and Vibration

The mechanical commutation in DC motors can lead to increased noise and vibration levels compared to brushless alternatives.

Size and Weight Limitations

For a given power output, DC motors are generally larger and heavier than equivalent AC motors, which can be a disadvantage in space-constrained applications.

Difference Between DC Motors and AC Motors

These are the main difference between DC motors and AC motors:

Power Source

DC motors operate on direct current, while AC motors run on alternating current. This fundamental difference affects their design, control, and applications.

Speed Control

DC motors offer easier speed control through voltage adjustment. AC motors typically require more complex frequency control methods.

Efficiency

DC motors generally have higher efficiency at lower speeds, while AC motors excel in high-speed applications.

Maintenance

DC motors often require more maintenance due to their brushes and commutators. AC motors, especially induction types, tend to be more reliable and require less upkeep.

Size and Weight

DC motors are usually more compact and lightweight for a given power output compared to AC motors.

Cost

AC motors are generally less expensive to manufacture and maintain, making them more cost-effective for many applications.

Starting Torque

DC motors typically provide higher starting torque, making them ideal for applications requiring quick acceleration.

Applications

DC motors are common in automotive, robotics, and precision control systems. AC motors dominate industrial machinery, HVAC systems, and large-scale applications.

Frequently Asked Questions

These are some frequently asked questions and answers about DC motors.

What does a DC motor do?

A DC motor is an electrical machine that converts direct current electrical energy into mechanical energy. It operates on the principle of electromagnetic induction, using the interaction between a magnetic field and an electric current to generate rotational motion.

How does a DC motor work?

DC motors work by creating a magnetic field in the stator (stationary part) and passing current through the rotor (rotating part). The interaction between these magnetic fields causes the rotor to spin, producing mechanical output.

What are the main types of DC motors?

The primary types of DC motors include:

• Brushed DC motors
• Brushless DC motors
• Permanent magnet DC motors
• Series DC motors
• Shunt DC motors

Where are DC motors commonly used?

DC motors find applications in various industries and devices, including:

• Electric vehicles
• Robotics and automation
• Computer peripherals (e.g., hard drives, fans)
• Power tools
• Industrial machinery

Conclusion

As you’ve learned, DC motors play a crucial role in countless applications across industries. Their ability to convert electrical energy into mechanical motion with precision and efficiency makes them indispensable in modern technology. Whether you’re working with small electronic devices or large industrial machinery, understanding the principles and types of DC motors is essential.

By grasping their working mechanisms, advantages, and limitations, you’ll be better equipped to select and implement the right motor for your specific needs. As technology continues to advance, DC motors will undoubtedly evolve, offering even greater performance and versatility. Stay informed about these developments to harness the full potential of DC motors in your future projects and innovations.
