When it comes to technical drawings, understanding projection methods is crucial for clear communication. As an engineer or designer, you may encounter both first angle and third angle projection systems. While third angle projection is more common in North America, first angle projection remains widely used in Europe and other parts of the world.
In this article, you’ll learn about first angle projection, how it differs from third angle, and when to apply each method. By mastering these projection techniques, you’ll be better equipped to interpret and create technical drawings across global industries and standards.
Overview of Orthographic Projection
Orthographic projection is a fundamental technique in technical drawing that allows for accurate representation of three-dimensional objects on a two-dimensional surface. This method is crucial in engineering, architecture, and design fields, providing a standardized way to communicate complex spatial information.
Types of Orthographic Projection
There are two main types of orthographic projection:
- First Angle Projection: This method, also known as European projection, is widely used in Europe and Asia. In 1st angle projection, the object is imagined to be in the first quadrant, between the viewer and the projection plane. This results in the top view being placed below the front view, and the right-side view on the left of the front view.
- Third Angle Projection: Preferred in North America and Australia, this method places the object in the third quadrant, behind the projection plane. In this arrangement, the top view is above the front view, and the right-side view is on the right of the front view.
Key Features of Orthographic Projection
- Multiple Views: Typically includes front, top, and side views of an object.
- True Measurements: Provides accurate dimensions and proportions of the object.
- Standardization: Follows specific rules and conventions for consistency across industries.
Understanding these projection methods is essential for interpreting and creating technical drawings accurately. The choice between first angle projection and third angle projection often depends on regional standards and industry practices.
What is First Angle Projection?
First angle projection, also known as European projection, is a method of orthographic projection used in technical drawing. This technique is widely employed in Europe and Asia for creating detailed engineering drawings.
Basic Concept
In 1st angle projection, the object is imagined to be in the first quadrant, positioned between the viewer and the projection planes. The views are then projected onto these planes as if looking through the object. This results in a unique arrangement of views that may seem counterintuitive at first glance.
View Placement
The distinguishing feature of first angle projection is the positioning of views:
- The front view is placed in the center
- The top view is located below the front view
- The right-side view is positioned to the left of the front view
This arrangement can be visualized by imagining the object inside a transparent box, with each face of the box representing a projection plane.
Understanding 1st angle projection is crucial for engineers and designers working on global projects or with international standards. While it may require some initial adjustment for those accustomed to third angle projection, mastering this technique expands one’s technical drawing capabilities.
Advantages of Using First Angle Projection
1st Angle Projection offers several key benefits for engineers and designers. Let’s explore seven distinct advantages of this projection method:
Simplified Manufacturing Process
First Angle Projection aligns closely with traditional European manufacturing practices. This alignment streamlines the production process, reducing errors and miscommunication between design and manufacturing teams.
Space Efficiency on Drawings
In 1st Angle Projection, views are placed opposite the surface they represent. This arrangement often results in more compact drawings, especially for complex objects with multiple views.
Intuitive for Certain Industries
Some industries, particularly in Europe, find First Angle Projection more intuitive. Professionals in these fields can quickly interpret drawings without mental reorientation.
Historical Consistency
Many older engineering drawings and specifications use 1st Angle Projection. Maintaining this system ensures compatibility with historical documents and reduces the need for conversion.
Global Standardization
While Third Angle Projection is common in North America, 1st Angle Projection is widely used internationally. This global acceptance facilitates collaboration on international projects.
Reduced Learning Curve
For those trained in First Angle Projection, continuing to use this system minimizes the need for retraining, saving time and resources in education and professional development.
Enhanced Visualization for Certain Objects
Some complex objects are more easily visualized using 1st Angle Projection, particularly when dealing with internal features or cross-sections. This can lead to improved understanding and fewer errors in interpretation.
Disadvantages of First Angle Projection
These are some of the disadvantages of 1st Angle Projection:
Complexity in Interpretation
1st Angle Projection can be challenging for those unfamiliar with it. The arrangement of views often requires mental rotation to visualize the object, which can lead to misinterpretation and errors in manufacturing or design processes.
Limited Global Acceptance
While 1st Angle Projection is widely used in Europe and Asia, it’s less common in North America. This lack of universal adoption can create confusion in international collaborations and may necessitate additional training for professionals working across different regions.
Potential for Confusion with Third Angle Projection
The reversed arrangement of views in 1st Angle Projection compared to Third Angle can cause confusion for those accustomed to the latter. This discrepancy may result in costly mistakes if not properly communicated or understood.
Increased Learning Curve
For students and professionals trained in Third Angle Projection, adapting to 1st Angle Projection requires additional time and effort. This learning curve can impact productivity and efficiency in the short term.
Difficulty in Visualizing Internal Features
When depicting complex internal structures, 1st Angle Projection may sometimes make it challenging to clearly represent hidden lines and surfaces, potentially leading to misunderstandings in manufacturing or assembly processes.
Limited Software Support
Some CAD and drafting software may have limited support for 1st Angle Projection, requiring users to make manual adjustments or use workarounds. This can increase the time and effort needed to create accurate technical drawings.
What is Third Angle Projection?
Third angle projection is a method of orthographic projection used extensively in engineering drawings, particularly in North America and some parts of Asia. This projection technique provides a clear, unambiguous representation of three-dimensional objects on a two-dimensional surface.
In third angle projection, the object is imagined to be in the third quadrant, positioned between the viewer and the projection planes. The views are then arranged as if the object is unfolded onto the page, with the front view in the center, the top view above it, and the right-side view to the right.
Key Characteristics
- Viewer’s perspective: The object is visualized as being in front of the projection planes.
- View arrangement: The top view appears above the front view, and the right-side view is placed to the right of the front view.
- Readability: This arrangement often feels more intuitive to readers, as it mirrors how we naturally observe objects.
Applications
Third angle projection is widely used in manufacturing and engineering industries. Its popularity stems from its ability to provide a clear, easily interpretable representation of complex objects. This projection method is particularly useful in:
- Mechanical engineering drawings
- Architectural blueprints
- Product design and development
By utilizing third angle projection, designers and engineers can effectively communicate intricate details and spatial relationships, ensuring accurate production and assembly of components.
Advantages of Using Third Angle Projection
These are some of the advantages of using 3rd Angle Projection:
Improved Clarity and Readability
Third angle projection offers enhanced clarity, making technical drawings easier to interpret. This method aligns the views with the object’s actual orientation, reducing confusion for readers unfamiliar with 1st angle projection. The intuitive layout allows for quicker comprehension of complex designs.
Consistency with Manufacturing Processes
In third angle projection, the views correspond directly to the manufacturing process. This alignment streamlines production, as machinists can easily relate the drawing to the physical object they’re creating. It’s particularly beneficial in industries where precision is crucial.
International Standard Compliance
While both methods are recognized internationally, third angle projection is the preferred standard in many countries, including the United States. Using this method ensures your drawings are readily understood by a global audience, facilitating international collaboration and trade.
Reduced Error Rates
The logical arrangement of views in third angle projection minimizes the risk of misinterpretation. This advantage leads to fewer errors in manufacturing and assembly processes, ultimately saving time and resources.
Easier Dimensioning
Third angle projection often allows for more straightforward dimensioning. The placement of dimensions becomes more intuitive, reducing clutter and improving the overall readability of technical drawings.
Enhanced 3D Visualization
The layout of views in third angle projection aids in mentally constructing a three-dimensional image of the object. This advantage is particularly helpful for those new to technical drawing interpretation.
Compatibility with CAD Software
Many modern CAD programs default to third angle projection, making it the more convenient choice for digital design work. This compatibility ensures smoother workflows and easier integration with various design and manufacturing tools.
Disadvantages of Third Angle Projection
While third angle projection is widely used, particularly in North America, it does come with several drawbacks when compared to 1st angle projection. Here are six key disadvantages:
Increased Material Usage
Third angle projection often requires more drawing space, leading to higher material costs. This is because views are typically spread out more than in 1st angle projection, potentially necessitating larger sheets or multiple pages.
Potential for Confusion
For those accustomed to 1st angle projection, third angle can be initially confusing. The placement of views differs, which may lead to misinterpretation or errors in reading drawings, especially in international collaborations.
Limited Global Acceptance
While popular in some regions, third angle projection is not universally adopted. This can create challenges in global projects or when working with international partners who primarily use 1st angle projection.
Complexity in Certain Designs
For some complex objects, third angle projection may not provide the most intuitive representation. Certain features or relationships between parts might be less apparent compared to 1st angle projection.
Learning Curve for New Users
Those trained in 1st angle projection may find it challenging to adapt to third angle methods. This learning curve can temporarily reduce productivity and increase the likelihood of errors during the transition period.
Potential for Miscommunication
In industries where both projection methods are used, there’s a risk of miscommunication if the projection type isn’t clearly indicated. This can lead to costly mistakes in manufacturing or construction processes.

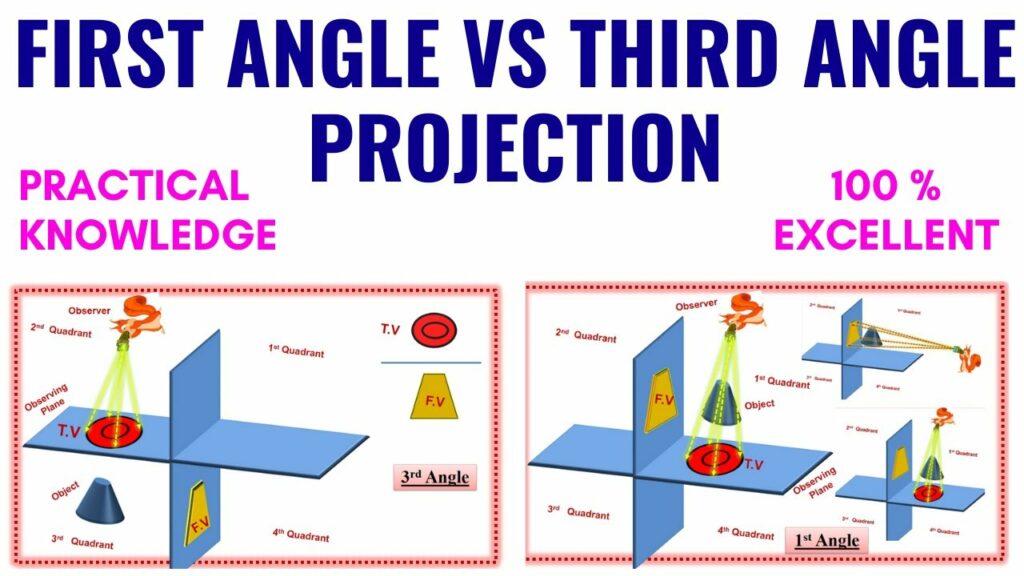

Difference Between First Angle Projection and Third Angle Projection
Understanding the differences and applications of 1st and 3rd Angle projection allows you to communicate designs effectively across international boundaries. These are some of the main differences between the first angle projection and the third angle projection.
Origin
The origins of 1st Angle Projection and 3rd Angle Projection can be traced back to the early days of engineering and technical drawing. These methods emerged as standardized ways to represent three-dimensional objects on two-dimensional surfaces.
First angle projection originated in Europe during the industrial revolution. It became the preferred method in many European countries and their colonies. Third angle projection, on the other hand, gained popularity in North America and some Asian countries.
As international trade grew, the need for standardized technical drawings became apparent. The International Organization for Standardization (ISO) recognized both methods, allowing for global understanding and collaboration in engineering and manufacturing. Today, while preferences vary by region, professionals in the field must be familiar with both 1st Angle Projection vs 3rd Angle Projection to effectively communicate design concepts across borders.
Viewing Angle
The viewing angle is a crucial concept when comparing 1st Angle Projection and 3rd Angle Projection. In first angle projection, the object is positioned between the viewer and the projection plane. This means you’re looking through the object to see its projections on the plane behind it.
Conversely, in third angle projection, the projection plane is situated between the viewer and the object. You’re essentially looking at the object with its projections in front of it. This difference in viewing angle significantly impacts how the projections are arranged and interpreted.
Understanding these distinct viewing angles is essential for engineers and designers working across different industries and regions, as it affects how technical drawings are created and read. The choice between 1st Angle Projection vs 3rd Angle Projection often depends on regional standards and specific industry practices.
Quadrant Placement
In 1st Angle Projection, the object is placed between the viewer and the projection plane. This results in the top view appearing below the front view, and the right-side view to the left of the front view. Conversely, 3rd Angle Projection places the projection plane between the viewer and the object. This arrangement positions the top view above the front view, with the right-side view to the right of the front view.
Understanding these quadrant placements is essential for correctly interpreting and creating technical drawings, especially when working across different regions that may prefer one method over the other.
Global Usage
The global usage of 1st Angle Projection and 3rd Angle Projection varies significantly across different regions and industries. In Europe and India, the first angle projection is predominantly used, adhering to ISO standards. This method is deeply ingrained in their engineering education and industrial practices.
Conversely, the United States, Canada, and Japan primarily employ the third angle projection. This preference is reflected in ASME standards and is widely adopted in these countries’ manufacturing sectors.
The choice between 1st Angle Projection vs 3rd Angle Projection often depends on historical precedents and regional industrial norms. However, globalization has led to increased awareness and flexibility in using both methods, especially in multinational corporations and international collaborations.
Understanding these global usage patterns is crucial for engineers and designers working on international projects, ensuring clear communication and preventing costly misinterpretations in technical drawings.
Symbol Representation
Symbol representation plays a crucial role in distinguishing between 1st Angle Projection and 3rd Angle Projection. In engineering drawings, these symbols provide a quick visual reference to identify the projection method used.
For 1st Angle Projection, the symbol typically consists of a cone positioned above a cylinder. This arrangement reflects how objects are projected in this method, with the front view placed below the top view.
In contrast, the symbol for 3rd Angle Projection features the cylinder above the cone. This configuration mirrors the projection technique where the front view is positioned above the top view.
Understanding these symbols is essential for engineers and designers working across different regions, as it helps prevent misinterpretation of technical drawings. By recognizing the distinct symbol representations, professionals can quickly adapt their approach to the specific projection method employed in a given project.
Visualization Process
The visualization process for 1st Angle Projection and 3rd Angle Projection requires a clear understanding of spatial relationships. In first angle projection, imagine the object placed between the viewer and the projection plane. As you “unfold” the views, the top view appears below, the right view on the left, and so on.
Conversely, third angle projection places the projection plane between the viewer and the object. When unfolded, the top view is above, the right view is on the right, and other views follow suit. This method is more intuitive for many, as it aligns with how we naturally observe objects.
To visualize effectively, practice mentally rotating objects and consider how different angles affect the projected views. Developing this skill is crucial for accurately interpreting and creating technical drawings in both projection systems.
Drawing Sequence
Understanding the drawing sequence is crucial when comparing 1st Angle Projection vs 3rd Angle Projection. In first angle projection, you begin by drawing the front view, followed by the top view below it, and the side view to the right. This sequence creates a “folded” appearance of the object.
Conversely, in third angle projection, you start with the front view, then place the top view above it and the side view to the right. This arrangement mimics the object as if it were “unfolded” on the drawing plane.
Mastering these drawing sequences enhances your ability to create and interpret technical drawings effectively.
Examples of 1st Angle and 3rd Angle Projection Drawings
These are some of the examples of 1st Angle and 3rd Angle Projection Drawings:
Mechanical Components
In 1st Angle Projection and 3rd Angle Projection, mechanical parts like gears or pistons are represented differently. First angle shows the top view below the front view, while third angle places it above. This distinction is crucial for engineers interpreting complex machinery blueprints.
Architectural Drawings
Building plans illustrate the contrast between projection methods. In first angle, the floor plan appears above the elevation, whereas third angle reverses this arrangement. This impacts how architects and contractors visualize spatial relationships within structures.
Electronic Circuit Diagrams
Circuit boards exemplify projection differences. First angle depicts component layouts from the copper side, while third angle shows them from the component side. This variance affects how technicians approach PCB assembly and troubleshooting.
When to Use First and Third Angle Projection
The choice between 1st Angle Projection and third angle projection depends on several factors, including industry standards, geographical location, and specific project requirements.
Industrial Applications
In manufacturing and engineering, 1st Angle Projection is predominantly used in European countries and other regions following European standards. It’s particularly common in:
- Automotive design
- Aerospace engineering
- General mechanical engineering
Third angle projection, on the other hand, is the standard in North America and some Asian countries. It’s preferred in:
- Architecture and construction
- Product design
- Electronics manufacturing
Educational and Training Contexts
When teaching technical drawing, the choice often depends on the country’s industrial practices. However, many educational institutions teach both methods to prepare students for global work environments.
International Projects
For international collaborations, it’s crucial to clearly specify which projection method is being used. Some companies opt to use both methods side by side to avoid confusion and ensure clear communication across different teams and regions.
Remember, regardless of the chosen method, consistency is key. Once a projection method is selected for a project, it should be maintained throughout to prevent misinterpretation and errors in production.
How are the First and Third Angle Projections Represented?
In 1st Angle Projection, the object is positioned between the viewer and the projection plane. This method places the top view below the front view, and the side view to the right of the front view. When using this projection, imagine the object as transparent, with its features projected onto planes behind it.
The placement of views in 1st Angle Projection can be remembered using the mnemonic “As the cow walks away, you see its head, then body, then tail.” This analogy helps visualize how the views are arranged on the drawing sheet.
Conversely, Third Angle Projection places the projection plane between the viewer and the object. In this method, the top view is positioned above the front view, while the side view appears to the right of the front view. This arrangement mirrors the actual position of the object’s surfaces relative to each other.
To remember Third Angle Projection, think of a glass box containing the object. As you unfold the box, each face reveals the view of the object from that perspective. This mental image helps in understanding the layout of views in this projection method.
Both projection methods effectively communicate design intent, but their usage varies geographically. Engineers must be familiar with both to collaborate effectively in global projects.
Frequently Asked Questions
Frequently asked questions and answers about 1st Angle Projection and 3rd Angle Projection.
What is 1st Angle Projection?
1st Angle Projection is a method of orthographic projection used in technical drawing. In this system, the object is imagined to be in the third quadrant, with the viewing planes placed between the object and the viewer. This results in the top view being below the front view, and the side view appearing on the opposite side of the front view.
How does 1st Angle Projection differ from Third Angle Projection?
The key difference lies in the placement of views. In 1st Angle Projection, the views are arranged as if the object is being projected onto planes behind it. Conversely, Third Angle Projection places views as if the object is in a transparent box, with each view on the corresponding face of the box.
Where is 1st Angle Projection commonly used?
1st Angle Projection is predominantly used in European countries and many other parts of the world. It’s the standard method in countries that follow ISO standards for technical drawings. However, it’s important to note that the United States and Canada primarily use Third Angle Projection.
Conclusion
In conclusion, understanding the differences between first angle and third angle projection is crucial for engineers and designers working across international borders. While first angle projection remains common in Europe and Asia, third angle projection dominates in North America.
By familiarizing yourself with both methods, you’ll be better equipped to interpret technical drawings from various sources. Remember that the key distinction lies in the placement of views relative to the main orthographic projection. Whichever system you use, consistency and clear labeling are essential for effective communication of design intent. As you continue your work in engineering and design, keep these projection methods in mind to ensure seamless collaboration on global projects.
