Triple Beam Balance: An Overview, Components & Uses

Have you ever wondered how scientists accurately measure small quantities of substances? the triple beam balance, a precision instrument that has been a staple in laboratories for decades. This mechanical marvel allows you to determine the mass of objects with remarkable accuracy.

In this article, you’ll discover the inner workings of the triple beam balance, explore its key components, and learn about its various applications in scientific research and industry. Whether you’re a student, researcher, or simply curious about scientific instruments, understanding this fundamental tool will enhance your appreciation for the precision required in scientific measurements.

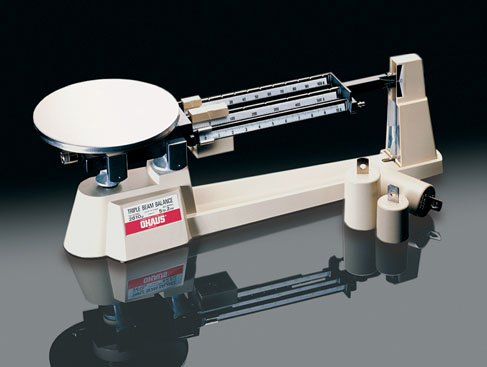

What is a Triple Beam Balance?

A triple beam balance is a precise mechanical device used for measuring mass with high accuracy. This instrument, also known as a beam balance, consists of three horizontal beams mounted on a fulcrum, each equipped with sliding weights. The triple beam design allows for measurements ranging from fractions of a gram to several kilograms, making it versatile for various scientific and industrial applications. The triple beam balance refers to its three beams, where the middle beam is the largest, the far beam of medium size, and the front beam the smallest.

The largest beam typically measures up to 500 grams, the middle beam up to 100 grams, and the smallest beam up to 10 grams. This configuration allows for precise measurements by combining the weights on all three beams. The maximum weight a triple beam balance can measure is 600 grams.

The triple beam balance operates on the principle of mechanical equilibrium. When an object is placed on the pan, the sliding weights are adjusted until the pointer aligns with the zero mark, indicating that the mass of the object is equal to the combined mass of the weights on the beams. This method ensures accurate measurements without relying on springs or electronic components, making the beam balance a reliable tool in various settings.

Main Components of a Triple Beam Balance

The triple beam balance is a precise instrument for measuring mass. Understanding its components is crucial for accurate measurements. Here are the seven main components of a beam balance:

Base and Leveling Feet

The sturdy base provides stability, while adjustable leveling feet ensure the balance is perfectly horizontal for accurate readings.

Balance Beam

This horizontal arm is the heart of the triple beam balance. It pivots on a fulcrum and holds the weighing pan on one end and the sliding weights on the other.

Weighing Pan

This removable platform holds the object being measured. It’s typically made of stainless steel for durability and easy cleaning.

Sliding Weights

Three weights of different sizes slide along the balance beam. By adjusting their positions, you can precisely measure the mass of an object.

Scale

Engraved markings on the beam allow you to read the mass measurements accurately.

Pointer and Zero Adjustment

The pointer indicates when the beam is balanced. The zero adjustment knob helps calibrate the balance before use.

Magnetic Damping Mechanism

This component reduces oscillations, allowing the beam to settle quickly for faster, more accurate measurements.

Understanding these components helps ensure proper use and maintenance of your triple beam balance, leading to more precise measurements in various scientific and industrial applications.

How a Triple Beam Balance Works

A triple beam balance operates on the principle of mechanical equilibrium. This precision instrument uses a series of sliding weights on three beams to counterbalance the mass of an object placed on its pan. The beam balance achieves equilibrium when the gravitational force of the object equals the combined force of the counterweights.

The front beam typically measures up to 10 grams, the middle beam up to 500 grams, and the rear beam up to 100 grams. This configuration allows for precise measurements across a wide range of masses.

Calibrating a Triple Beam Balance

Calibrating a triple beam balance is crucial for ensuring accurate measurements in scientific and industrial settings. This process involves adjusting the balance to compensate for any discrepancies and maintain precision. Here’s a detailed look at the calibration procedure:

Preparing for Calibration

Before beginning, ensure your beam balance is clean and level. Place it on a stable surface away from drafts or vibrations. Allow the balance to acclimate to room temperature if it’s been moved recently.

The Calibration Process

1. Start with all riders at zero and the pan empty.
2. Place a calibration weight on the pan. Use a weight that’s close to the balance’s maximum capacity.
3. Adjust the beam balance until it reaches equilibrium.
4. If the pointer doesn’t align with zero, use the calibration screw to make fine adjustments.
5. Remove the weight and check that the balance returns to zero.
6. Repeat the process with different weights to ensure accuracy across the balance’s range.

Verifying Calibration

After calibration, test the beam balance with known weights to confirm its accuracy. If discrepancies persist, repeat the calibration process or consult a professional technician.

Regular calibration of your triple beam balance is essential for maintaining its precision and reliability in scientific measurements. By following these steps, you can ensure your balance provides accurate results for all your weighing needs.

Using a Triple Beam Balance to Measure Mass

To use a triple beam balance to measure mass accurately, follow these steps:

Prepare the Balance

Before using a beam balance, ensure it’s placed on a flat, stable surface. Zero the balance by adjusting all riders to their leftmost positions and fine-tuning with the zeroing knob until the pointer aligns with the zero mark.

Place the Sample

Carefully place your sample on the pan. For accurate measurements, position it at the center of the pan to distribute weight evenly.

Adjust the Riders

Start with the largest beam (100g), moving its rider to the right until the pointer drops below zero. Shift it back one notch. Repeat this process with the middle beam (10g) and then the smallest beam (1g) until the pointer aligns precisely with zero.

Read and Record

Once balanced, add up the values from all three beams to determine the sample’s mass. The beam balance allows for precise measurements to the nearest 0.1g, making it ideal for scientific applications requiring accuracy.

Practice and Precision

Mastering the use of a triple beam balance takes practice. Always double-check your measurements and be mindful of external factors like air currents that might affect the balance’s sensitivity.

The pointer indicates when the balance beam is in equilibrium, meaning the mass on each side is equal. If the pointer moves to one side, it means that side is heavier and you need to adjust the sliding weights. This method provides accurate measurements without relying on electronic components, making the triple beam balance a reliable tool in various scientific and educational settings.

With practice, you’ll develop the proper technique to quickly and precisely adjust the weights to balance the beam. Consistently checking that the balance is level and zeroing it before each use will help ensure accurate measurements.

Advantages of Triple Beam Balances

These are some of the advantages of triple beam balances:

Precision and Accuracy

Triple beam balances offer exceptional precision and accuracy in measuring mass. The beam balance design allows for fine adjustments, enabling users to measure substances with remarkable exactitude, often to the nearest 0.1 gram.

Durability and Longevity

These balances are built to last, with sturdy construction that can withstand frequent use in laboratory settings. Their mechanical nature means fewer components that can malfunction compared to electronic scales.

No Power Source Required

As a mechanical device, a triple beam balance operates without electricity. This makes it ideal for fieldwork or in areas with unreliable power supplies, ensuring consistent functionality.

Easy Calibration

Calibrating a beam balance is a straightforward process that can be done quickly and easily. This ensures the balance maintains its accuracy over time, even with frequent use.

Cost-Effective

Triple beam balances are typically more affordable than electronic alternatives, making them a budget-friendly option for schools, small laboratories, or individual researchers.

Educational Value

The visible mechanics of a beam balance make it an excellent teaching tool. Students can directly observe the principles of mass and balance in action, enhancing their understanding of fundamental physics concepts.

Versatility

These balances can measure a wide range of masses, from very light to relatively heavy objects, making them versatile tools for various applications in science and industry.

Reliability in Harsh Conditions

Triple beam balances perform consistently in various environmental conditions, including high humidity or temperature fluctuations, where electronic scales might falter.

Disadvantages of Triple Beam Balances

While triple beam balances are valuable tools in many laboratories, they do come with certain limitations. Here are five key disadvantages to consider:

Time-consuming operation

Using a triple beam balance can be a slow process. Each measurement requires careful adjustment of multiple riders, which takes time and patience. This inefficiency can be problematic in fast-paced laboratory environments where quick measurements are essential.

Potential for human error

The manual nature of triple beam balances introduces a higher risk of human error. Misreading the scale or improperly positioning the riders can lead to inaccurate measurements. This vulnerability to user mistakes can compromise the reliability of experimental results.

Limited precision

Compared to modern electronic balances, triple beam balances offer lower precision. Most models can only measure to the nearest 0.1 grams, which may not be sufficient for applications requiring extremely precise measurements.

Maintenance requirements

Triple beam balances need regular calibration and maintenance to ensure accuracy. The moving parts can wear over time, affecting the balance’s performance. This ongoing upkeep adds to the overall cost and time investment of using the instrument.

Size and portability limitations

These balances are typically bulky and not easily portable. Their size can be a disadvantage in laboratories with limited space or for field work requiring mobile equipment.

Common Uses of a Triple Beam Balance

The triple beam balance is a versatile instrument with numerous applications across various fields. Here are seven common uses of this precise measuring device:

Weighing Laboratory Samples

Scientists and researchers frequently use the beam balance to accurately measure the mass of small samples. This is crucial for experiments in chemistry, biology, and materials science where precise measurements are essential for reliable results.

Jewelry and Precious Metal Assessment

Jewelers and precious metal dealers rely on the triple beam balance for its accuracy in weighing small, valuable items. This helps determine the exact mass of gems, gold, silver, and other precious materials for pricing and authentication purposes.

Pharmaceutical Dosing

In pharmacies and drug manufacturing, the beam balance plays a vital role in measuring precise amounts of active ingredients and excipients. This ensures that medications are formulated with the correct dosage, which is critical for patient safety and drug efficacy.

Food Industry Quality Control

The food industry uses triple beam balances to measure ingredients accurately, ensuring consistency in recipes and portion sizes. This is particularly important in large-scale food production where even small variations can affect taste, texture, and nutritional content.

Educational Demonstrations

In science classrooms, the beam balance serves as an excellent tool for teaching students about mass, weight, and the principles of balance. It provides hands-on experience with scientific measurement techniques.

Forensic Analysis

Crime labs utilize triple beam balances to weigh trace evidence such as fibers, hair samples, or small particles. The precise measurements obtained are crucial for accurate forensic analysis and can be pivotal in criminal investigations.

Environmental Sample Analysis

Environmental scientists use these balances to weigh soil, water, or air samples for pollution studies, ecological research, and environmental impact assessments. The accuracy of the beam balance ensures reliable data collection for these critical analyses.

Alternatives to a Triple Beam Balance

These are some alternatives to using a triple beam balance:

Digital Analytical Balance

Digital analytical balances offer a modern alternative to the traditional beam balance. These devices use electromagnetic force compensation to measure mass with extreme precision. They typically feature a glass-enclosed weighing chamber to minimize environmental interference and can measure samples as small as 0.1 mg. Digital balances provide quick, accurate readings and often include features like automatic calibration and data logging.

Electronic Top-Loading Balance

For applications requiring less precision than an analytical balance but more convenience than a beam balance, electronic top-loading balances are an excellent choice. These devices use strain gauge technology to measure mass and typically have a readability of 0.01 to 0.1 grams. They offer a larger weighing capacity and platform size compared to analytical balances, making them suitable for a wide range of laboratory and industrial applications.

Magnetic Force Restoration Balance

This sophisticated alternative employs electromagnetic force to counterbalance the weight of a sample. A current passing through a coil generates a magnetic field that opposes the gravitational force on the sample. The amount of current required to maintain equilibrium is directly proportional to the sample’s mass. These balances offer exceptional accuracy and precision, often surpassing that of a beam balance, and are less susceptible to environmental factors like vibration or air currents.

Frequently Asked Questions

These are some frequently asked questions and answers about triple beam balance.

How often should I calibrate my triple beam balance?

You should calibrate your triple beam balance once a year for general use. For applications requiring high precision, calibrating every 6 months is recommended. Calibration involves weighing known masses to ensure the balance’s readouts are accurate.

How do I zero a triple beam balance?

To zero the balance:

1. Ensure nothing is on the weighing pans.
2. Turn the indicator to zero.
3. Adjust the sliding weights until the pointer is at zero against the indicator.
4. Check that the balance remains at zero when moved or tapped gently. Readjust if needed.

How accurate is a beam balance?

A beam balance can be extremely accurate when used correctly. The precision of a beam balance depends on factors like the quality of its construction, proper calibration, and the skill of the user. High-quality beam balances can measure masses with accuracy up to 0.01 grams or better. However, it’s important to note that external factors like air currents or vibrations can affect measurements.

Can a beam balance measure liquids?

Yes, a beam balance can measure liquids indirectly. To do this, you would first weigh an empty container, then add the liquid and weigh it again. The difference between these two measurements gives you the mass of the liquid. However, for direct volume measurements of liquids, other tools like graduated cylinders are more appropriate.

Conclusion

In conclusion, the triple beam balance remains an invaluable tool in scientific laboratories and educational settings. Its precision, reliability, and ease of use make it ideal for a wide range of weighing applications. By understanding its components and proper operation, you can harness the full potential of this instrument in your work. Whether you’re a student learning the basics of measurement or a seasoned researcher requiring accurate mass determinations, the triple beam balance offers a dependable solution. As you continue to explore the world of scientific measurement, remember that mastering this fundamental tool will serve you well in your future endeavors, providing a solid foundation for more advanced techniques and technologies.
